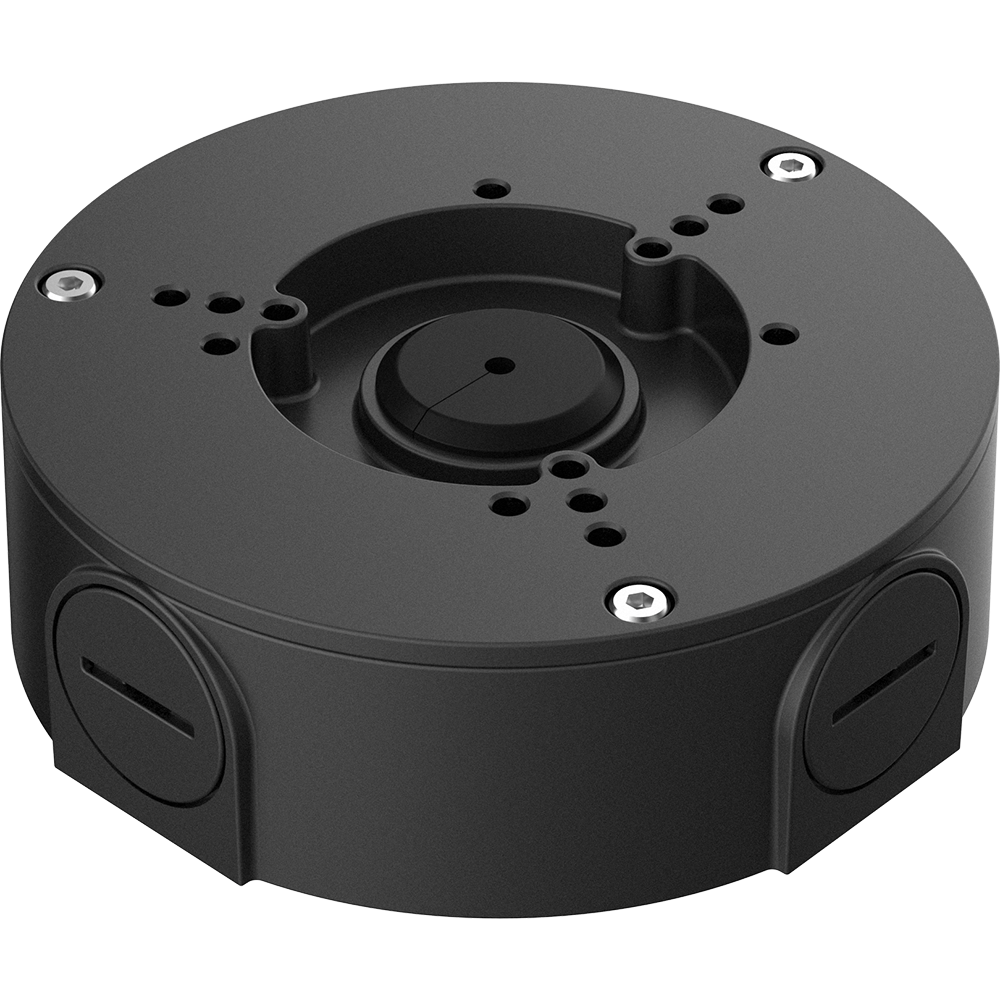

Dahua - DH-PFA130-E-B - Waterproof Junction Box (Black)
Part number:
DH-PFA130-E-B
Price:

Junction Box, Material: Aluminum, Color: Black



Features:

  • Material:  Aluminum
  • Dimensions (W x H x D): 124.10 mm x 41.0 mm (4.89 in. x 1.61 in.)
  • Pipe Thread: G3/4 in.
  • Weight: 0.35 kg (0.77 lb)
  • Load Bearing Capacity: 3.0 kg (6.61 lb)
  • Color: Black
  • Ingress Protection: IP66
  • Operating Temperature: –40 °C to 60 °C (–40 °F to 140 °F)
  • Humidity: < 90% RH
Material Aluminum
Dimensions (W x H x D) Ø124.10 mm x 41.0 mm
(Ø4.89 in. x 1.61 in.)
Pipe Thread G3/4 in.
Weight 0.35 kg (0.77 lb)
Load Bearing Capacity 3.0 kg (6.61 lb)
Color Black
Ingress Protection IP66
Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F)
Humidity < 90% RH
