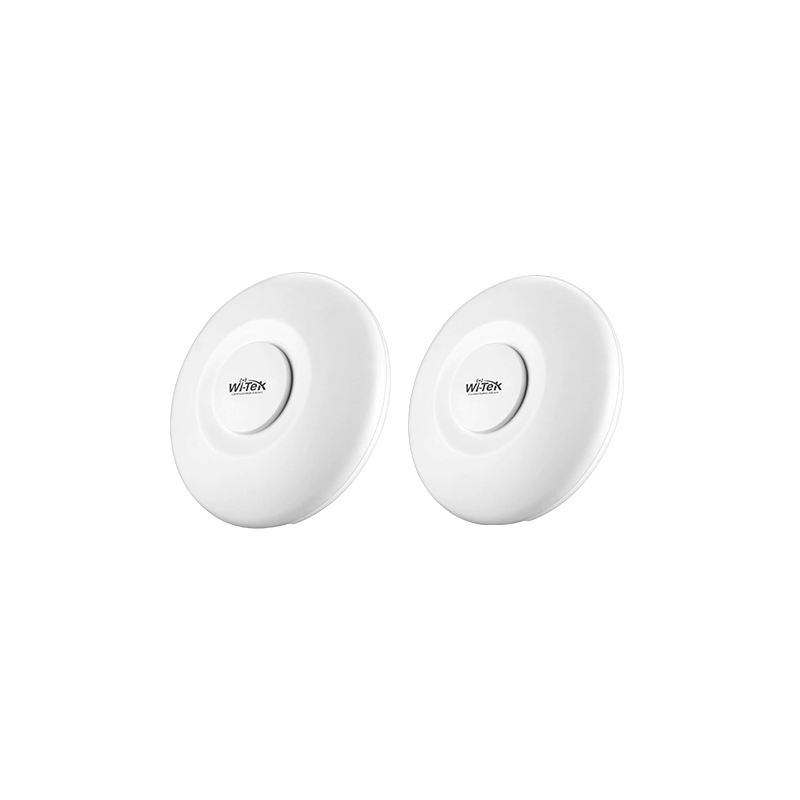

Wi-Tek - WI-CPE515H-KIT - 5.8G 8KM 300M Wireless CPE for CCTV (Sell in Pair)
Part number:
WI-CPE515H-KIT
Price:
Wireless Transmitter is equivalent to a network cable, transmitting network signals via wireless way. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point to multi-point interconnection. Wi-Tek Wireless Transmitter is specialized for rural internet access, long-distance wireless data transmission, wireless coverage extension, and other industrial wireless solutions. It is widely used in various fields of communication.
Features:
- Adjustable transmission power from 0 to 27dBm
- Built-in 16dBi 2x2 dual-polarized directional MIMO antenna
- Support open frequency from 5150-5850MHz
- Long range wireless transmission up to 8km
- Wireless a/n/ac speed up to 300Mbps
- Antenna Angle 60° degree
- Repeater/Basic Station/CPE/WISP operation modes
- Centralized Management System–Wi-Tek Cloud Platform
- 24V Passive PoE Adapter supports up to 100 meter
- Quick paired mode
| Model | WI-CPE515H-KIT |
| Hardware version | V1 |
| HARDWARE FEATURES | |

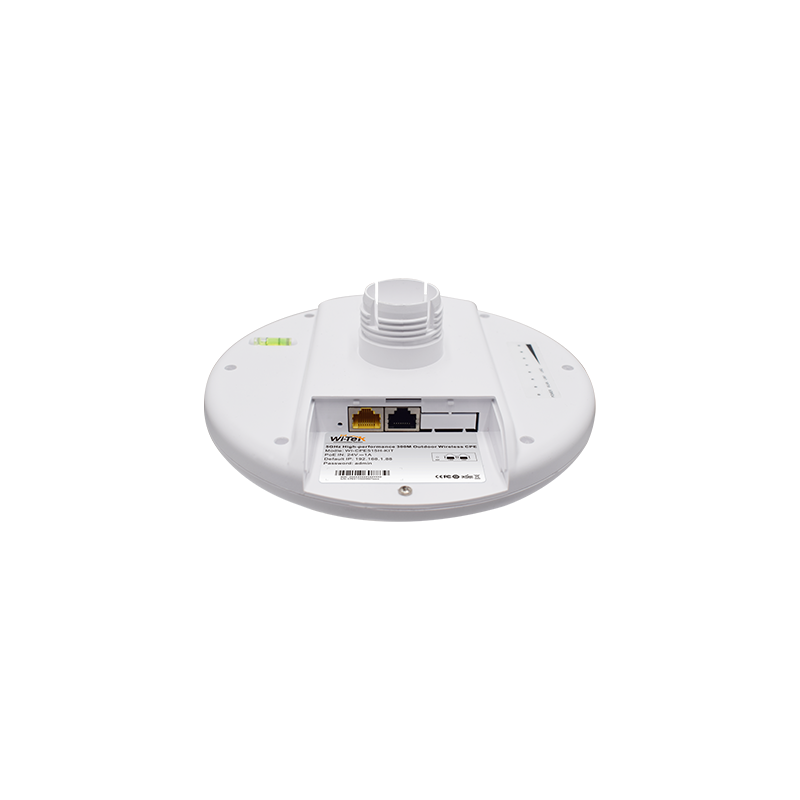

| Interface | (2)10/100M Base-T LAN Ethernet ports |
| Signal Rate | 300 Mbps at 5GHz |
| Operating Band | 802.11a/n: 5.150~5.850GHz |
| Antenna Type | Built-in 16dBi Directional Antenna |
| Power Supply | 24V Passive PoE Adapter |
| Power Consumption | ≤6W |
| Transmit Power | ≤27dBm (500mW) |
| Recommend Distance | 8km |
| Antenna Angle | 60° |
| External buttons | reset button (long press for 5 seconds |
| to restore the factory default configuration) | |
| Protection | 4kV ESD Protection |
| 2kV Lightning Protection | |
| Waterproof | IP65 |
| Dimensions | 200mm x 200mm x 130.5mm |
| Package Contents | 2 x CPE |
| 2x 24V Adapter | |
| 2 x Accessory Set | |
| 1 x Quick Installation Guide | |
| Environment | Working Temp: -33~ 65°C |
| Storage Temp: -50 ~80°C | |
| Working Humidity: 5%~95% (non-condensing) | |
| SOFTWARE FEATURES | |
| Operating Modes | Base Station / CPE / Repeater / WISP Mode |
| Wireless Security | WPA-TKIP / WPA2-AES, WPA/WPA2-Enterprise |
| Wireless Parameter | Selectable Channel Width: 20/40MHz |
| Automatic Channel Selection | |
| Tx Power Control | |
| System Tools | Speed Test, Ping, Traceroute |
| Management | Support local management with web |
| Support remote management with Wi-Tek Cloud platform | |
Name
Description
Size
Downloads
File
Data Sheet
1.2mb
