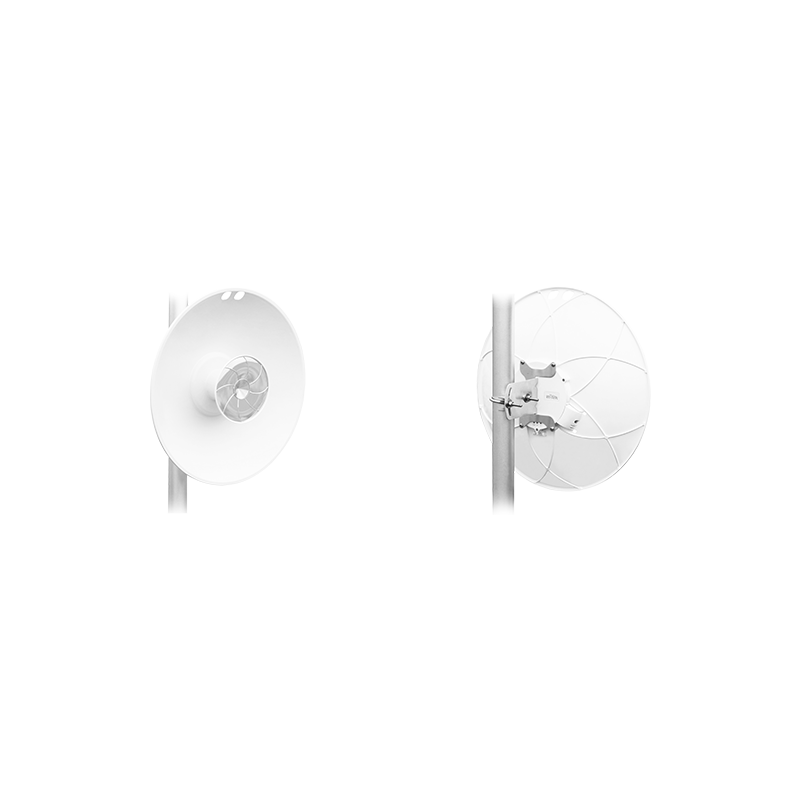

Wi-Tek - WI-CPE900-KIT - 5.8G Dish Antenna 10KM 900M Wireless CPE for CCTV (Sell in Pair)
Part number:
WI-CPE900-KIT
Price:

Wireless Transmitter is equivalent to a network cable, transmitting network signals via wireless way. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point to multi-point interconnection. Wi-Tek Wireless Transmitter is specialized designed for rural Internet access, long distance wireless data transmission, wireless coverage extension and other industrial wireless solutions. It is widely used in various fields of communication.



Features:

  • Adjustable transmission power from 0 to 27dBm
  • Built-in 25dBi 2x2 dual-polarized directional MIMO antenna
  • Support open frequency from 4920-6100MHz
  • Long range wireless transmission up to 10km
  • Wireless B/G/N/AC speed up to 900Mbps
  • Antenna Angle 8°degree
  • AP/Client operation modes
  • Passive 24V PoE Adapter supports up to 100 meter
HARDWAREFEATURESWI-CPE900-KIT
Hardware VersionV1
Interface1 10/100/1000PoE Interface
Power Supply24V Passive PoE
PoE Adapterincluded
Power Consumption8W
Package Dimension430×430×140 mm
CPE DimensionDiameter 400 mm
Gross Weight2.4kg
Net Weight1.4kg
Antenna TypeBuilt-in 25dBi Dual-polAntenna
H (Horizontal)Beam Width: 8°(H-Pol)/8°(V-Pol)
Protection6kV ESD Protection
10kV Lightning Protection
EnclosureOutdoor UV Stabilized Plastic IP65 Waterproof Design
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ac
Wireless ModeAP, Client
Wireless SpeedsUp to900Mbps
Channel Width20/40/80 MHz
Frequency4920-6100MHz
Transmission Power27dBm(500mW)
Recommend Distance10km
SOFTWARE FEATURES
SecurityWPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
ServicesWeb Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
UtilitiesTransmission Power ControlDynamic Frequency Selection (DFS) WDS Enable/Disable
Distance AdjustmentDistance/ACK Timeout Setting
WEB managementYes
Cloud ManagementNo
System-level Optimizations     Optimized IGMP Snooping/Proxy for multicast applications, Hardware watchdog
OTHERS
CertificationCE
Package Contents2×CPES
2×PoE Adapters
2×Pole Mounting Kits
1×Quick Installation Guide
EnvironmentWorking Temp: -40 ~ 70°C
Storage Temp: -40 ~85°C
Working Humidity: 10%~95%
Non-condensing
Name
Description
Size
Downloads
File
Data Sheet
0.8mb
