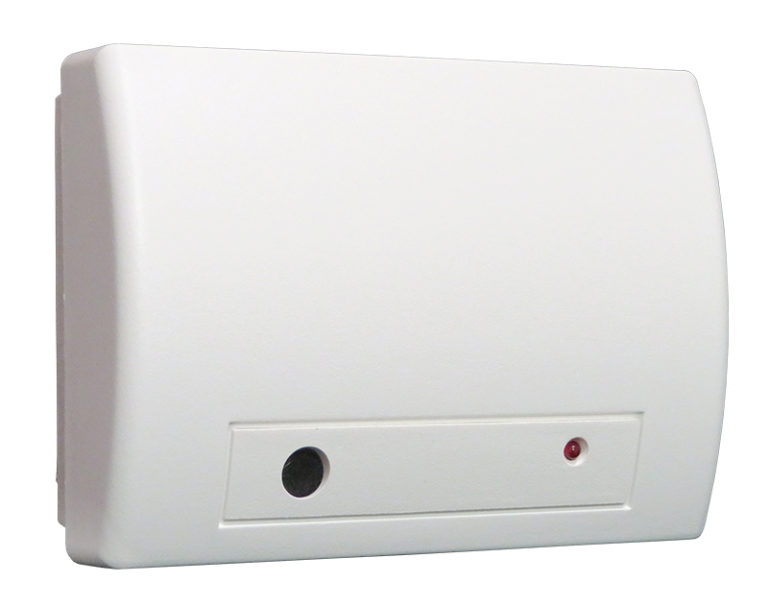

ELK - 6040 - Wireless Glass Break Detector, Two-Way for M1XRFTW

Product Overview

The ELK-6040 is an intelligent 2-way wireless glass break detector that utilizes Pattern Recognition Technology™ to accurately identify breaking glass while ignoring common household noises like dropped drinking glasses. Its omnidirectional microphone provides a 360° detection radius of up to 20 feet, making it ideal for protecting multiple windows in a single room.

Key Configuration

• • Sensor: omnidirectional microphone; detection range: 20 ft (6 m) × 360°
• • Minimum distance from glass: 4 ft (1.2 m)
• • Glass thickness support: plate (3/32–1/4 in), tempered (1/8–1/4 in), wired (1/4 in), laminated (1/8–1/4 in)
• • Power: one CR123A 3.0 VDC lithium battery; typical battery life: 5 years; quiescent current: 25 µA
• • RF frequency: 902–928 MHz channel hopping; supervisory check-in interval: ~64 minutes

Key Features

This is a 2-way wireless glass break detector that uses Pattern Recognition Technology™ to identify the specific sound of framed glass breaking while filtering out false alarms like dropping a drinking glass. It offers a 360° detection radius of up to 20 feet and features 2-way frequency hopping for secure, acknowledged communication.

Technical Context

It uses Pattern Recognition Technology™ to accurately detect breaking glass up to 20 feet away. The device operates reliably between 32°F and 120°F. It includes a 5-year lithium battery and all necessary mounting hardware. This sensor integrates seamlessly with ELK-M1 and E27 controllers.

Installation Notes

Dimensions: 4.25 "W × 3.13" H × 1.70"D. Requires ELK-M1XRFTW two-way transceiver and ELK-M1 Control. Minimum mounting distance from glass: 4 ft (1.2 m). Detection range: 20 ft radius (360°). Compatible with various glass types and thicknesses.
