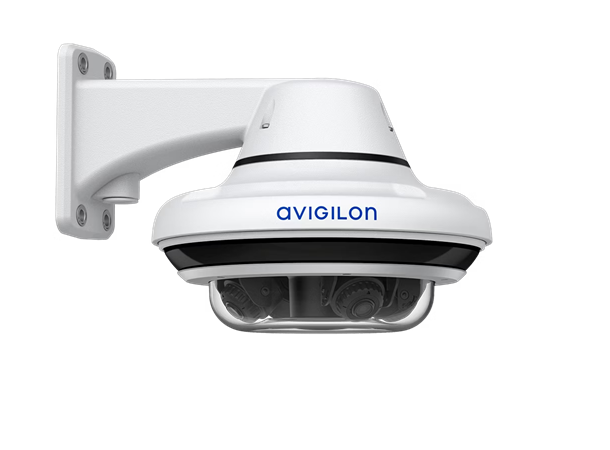

AVIGILON - 32C-H5A-4MH - 360° Multisensor Single Camera, 8MP
The Avigilon H5A Multisensor combines 3 or 4 adjustable 8MP sensors to provide up to 32MP of total coverage. It features remote focus/zoom lenses, 120dB true WDR, and 30m IR for 360-degree clarity. Powered by Next-Generation Analytics, it classifies people and vehicles with high precision while using HDSM SmartCodec to maximize bandwidth efficiency.
Key Configuration
- • Individual Sensors: 1/2.8" CMOS with 8MP (4K) per sensor
• Aspect Ratios: Supports both 16:9 and 4:3 configurations
• 3-Sensor Setup: Up to 11,520 x 2,160 (Ultra-Wide)
• 4-Sensor Setup: Up to 15,360 x 2,160 (Full Panoramic)
• Lens Type: 3.3–5.7 mm varifocal with fixed iris
• Control: Fully remote zoom and focus
• Viewing Angle: Adjustable 58°–108° horizontal field of view
• With Analytics: 16 to 20 fps (depending on sensor count)
• High-Speed Mode: Up to 25 fps for smoother motion
• Standard Use: 25.5W (PoE+) or 26W (DC)
• With Night Vision: 51W (PoE++) or 52W (DC)
• Reliability: Built-in redundant power with seamless failover
Key Features
The H5A Multisensor delivers superior low-light performance, combining 30m IR with 0.020 lux color imaging and 120dB WDR for high-contrast clarity. It prioritizes data integrity through FIPS 140-2 Level 3 hardware security and TPM-protected Secure Boot. Integrated Next-Generation Analytics proactively monitor the scene, identifying specific behavioral threats like loitering and unauthorized directional movement across all sensors.
Technical Context
Equipped with Gigabit connectivity and dual MicroSD slots for redundant storage, this unit ensures high-bandwidth reliability. It features a fast 1/8000s shutter and supports up to 64 privacy masks for sensitive environments. The system integrates seamlessly into professional networks via SNMP v3, supporting high-fidelity Opus audio and external alarm triggers while maintaining strict global safety and Plenum compliance.
Installation Notes
Engineered for extreme resilience, the camera operates from -40°C to +60°C and carries IP67/NEMA 4X environmental ratings. Each sensor is independently adjustable (tilt, pan, and azimuth), allowing for bespoke 360-degree coverage. It accommodates multiple power inputs, including 802.3bt PoE, and features specialized vibration and shock resistance, making it ideal for critical infrastructure and transport hubs.
| Image Sensor & Resolution | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Active Pixels | 3840 x 2160 (16:9) / 2880 x 2160 (4:3) |
| 3 x Image Sensor, Max Resolution (per image sensor) | 11520 x 2160 (16:9) / 8640 x 2160 (4:3) |
| 4 x Image Sensor, Max Resolution (per image sensor) | 15360 x 2160 (16:9) / 11520 x 2160 (4:3) |
| Sensor Aspect Ratio | 16:9 |
| Illumination & Sensitivity | |
| IR Illumination | Optional (high power 850 nm LEDs) 30 m (98 ft) maximum distance at 0 lux when camera is mounted at 4 m (13 ft) off the ground |
| Minimum Illumination | 0.020 lux (F1.5) in color mode 0.016 lux (F1.5) in mono mode 0 lux with optional IR illuminator |
| Dynamic Range & Noise Reduction | |
| WDR On | 120 dB, true WDR, dual exposure |
| WDR Off | 80 dB |
| 3D Noise Reduction Filter | Yes |
| Image Rate | |
| Analytics Enabled on All Sensors | 3 x Image Sensor (60 Hz, 50 Hz): 24 / 20 fps 4 x Image Sensor (60 Hz, 50 Hz): 17 / 16 fps |
| High Framerate Mode | 3 x Image Sensor (60 Hz, 50 Hz): 24 / 25 fps 4 x Image Sensor (60 Hz, 50 Hz): 20 / 20 fps |
| Image Control | |
| Image Compression Method | H.264 HDSM SmartCodec, H.265 HDSM SmartCodec, Motion JPEG |
| Streaming | Multi-stream H.264, Multi-stream H.265, Motion JPEG |
| Motion Detection | Selectable sensitivity and threshold |
| Electronic Shutter Control | Automatic, Manual (1/7.5 to 1/8000 sec) |
| Iris Control | Fixed |
| Day/Night Control | Automatic, Manual |
| Flicker Control | 60 Hz, 50 Hz |
| White Balance | Automatic, Manual |
| Backlight Compensation | Adjustable |
| Privacy Zones | Up to 64 zones |
| Removable Privacy Zones | Up to 8 zones per image sensor |
| Lens Distortion Correction | Fixed |
| Lens | |
| Focal Length | 3.3-5.7 mm |
| Horizontal Field of View (16:9) | 58° - 108° |
| Horizontal Field of View (4:3) | 43° - 76° |
| Vertical Field of View (16:9) | 32° - 55° |
| Vertical Field of View (4:3) | 32° - 55° |
| Aperture Range | F1.5 - F1.9 |
| Control | Fixed Iris, Remote Focus and Zoom |
| Network | |
| Network | Gigabit Ethernet, 100BASE-TX, 1000BASE-TX |
| Cabling Type | CAT5E |
| Connector | RJ-45 |
| API | ONVIF® compliance Profile S, T, M, and G |
| Security | Signed and encrypted firmware, password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based authentication, TLS1.3, FIPS140-2 Level 3 via onboard TPM |
| Secure Boot | Yes |
| Protocols | IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS |
| Streaming Protocols | RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP |
| Device Management Protocols | SNMP v2c, SNMP v3 |
| Peripherals & Storage | |
| USB Port | USB 2.0 |
| Onboard Storage | Dual MicroSD/microSDHC/microSDXC slot - video speed class card required. Class V10 or better recommended. The dual SD cards will work as one contiguous region of storage. |
| Audio | |
| Audio Compression Method | |
| G.711 PCM 8 kHz, Opus | |
| Audio Input/Output | Line level input and output |
| External I/O | |
| External I/O | Terminal Alarm In, Alarm Out |
| Electrical | |
| Power Consumption (With IR) | 52 W with 24 VDC / 74 VA with 24 VAC / 51 W with high power PoE (PoE++) |
| Power Consumption (Without IR) | 26 W with 24 VDC / 37 VA with 24 VAC / 25.5 W with IEEE 802.3at Type 2 (PoE+) |
| External Power | 24 VDC ± 10%; 24 VAC rms ± 10%, 50 or 60 Hz |
| PoE | With IR: 60 W (PoE++): IEEE 802.3bt Type 3, Cisco® UPoE or legacy high-power PoE* Up to 35% IR Power or without IR: 30 W IEEE 802.3at Type 2 (PoE+) |
| Redundant Power | Seamless failover between PoE and Aux and back without interruption in camera operation |
| Mechanical | |
| Dimension (With wall arm) | 385 mm x 262 mm x 299 mm (15.15" x 10.30" x 11.77") |
| Dimension (With NPT adapter) | 299 mm x 248 mm (11.77" x 9.76") |
| Weight | 1190 g (2.6 lbs) |
| Environmental | |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Storage Temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Humidity | 0 - 95% non-condensing |
| IR Illumination Behavior | The IR illuminator will operate at 100% power from -40 °C to 44 °C (-40 °F to 111 °F). The IR power will reduce to 60% from 44 °C to 53 °C (111 °F to 127 °F). The IR illuminator will turn off when the temperature is greater than 53 °C (127 °F). Hysteresis: 6 °C (10.8 °F). For 25.5 W PoE+, the IR illuminator will operate at only 35% power and will turn off if the temperature is below -26 °C (-15 °F). |
| Per Sensor (Mounting) | |
| Tilt | +7° to 96° from horizon |
| Pan | +/-120° (depending on position of image sensors) |
| Azimuth | +/-180° |
| Certifications | |
| Certifications/Approvals | UL, cUL, CE, ROHS, RCM, BIS, UKCA, NOM, KC |
| Safety Standards | UL 62368-1, CSA 62368-1, IEC/EN 62368-1, UL 2043 (Plenum), IEC/EN 62471 |
| Environmental Standards/Ratings | IEC 60529 IP66, IP67 rating, IEC/EN 62262 Impact (IK 10), IEC/EN 60068-2-6 Product Vibration, IEC/EN 60068-2-27 Product Shock, Type 4X |
| Electromagnetic Emissions Standards | FCC Part 15 Subpart B (Class A), ICES-003 (Class A), EN 55032 (Class A), EN 61000-3-2, EN 61000-3-3 |
| Electromagnetic Immunity Standards | EN 55035, EN 61000-6-1, EN 50121-4, EN 50130-4, NEMA TS2 paragraph 2.2.7 - 2.2.9 |
| Supported Analytics Events | |
| Objects in Area | The event is triggered when the selected object type moves into the region of interest. |
| Object Loitering | The event is triggered when the selected object type stays within the region of interest for an extended amount of time. |
| Objects Crossing Beam | The event is triggered when the specified number of objects have crossed the directional beam that is configured over the camera's field of view. The beam can be unidirectional or bidirectional. |
