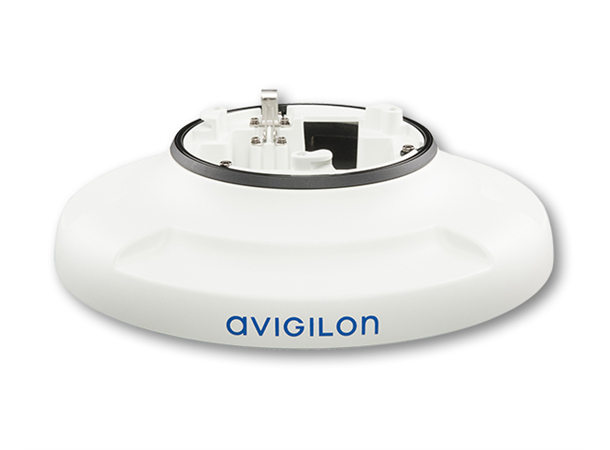

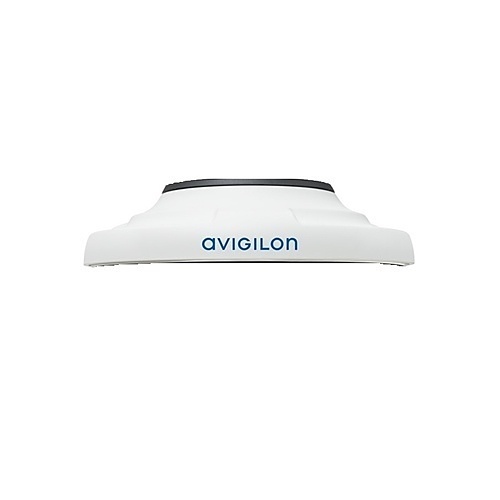

AVIGILON - H5AMH-AD-PEND1 - Outdoor Pendant Mount Adapter
Part number:
Price:
The Avigilon H5AMH-AD-PEND1 serves as the vital mechanical link for transforming H4 and H5A Multisensor cameras into a pendant-style installation. Acting as a specialized "mounting cap," this adapter securely attaches the camera body to either a dedicated mounting arm or a standard 1.5” NPT pipe.
| Product Type | Pendant Mount Adapter (Mounting Cap) |
| Compatibility | • H5A Multisensor (3-sensor and 4-sensor variants) • H4 Multisensor series |
| Thread Interface | 1.5" NPT (National Pipe Thread) |
| Material | Heavy-duty Aluminum with a polyester powder coat |
| Environmental Rating | IP66/IP67 and NEMA 4X (when properly installed with a compatible camera) |
| Color | Avigilon White |
Name
Description
Size
Downloads
File
Brochure
0.6mb
