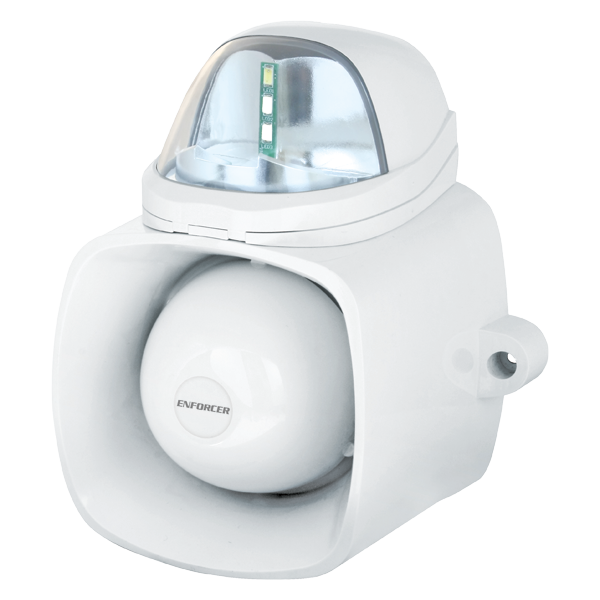

SECO-LARM - SH-816S-SMQ/C - 4-in-1 Multi-Purpose Clear Siren, Up To 2MB, WAV or MP3

Part number:
SH-816S-SMQ/C
Price:

The SECO‑LARM SH‑816S‑SMQ/C is a 4‑in‑1 Multi‑Purpose Siren/Strobe that combines siren, internal message playback (up to 2MB of .WAV or MP3), public address broadcast, and an LED strobe into a single device. It can connect to an external audio source to serve as a daily‑use PA system, and depending on the situation, can also sound a warning siren, play a pre‑recorded message or custom sound from internal memory, or function as a PA broadcast system. This clear‑lens model is part of the SH‑816S‑SMQ series, which is available with amber, blue, clear, or red lenses for flexible visual signaling.



Key Features:
• Functions: Combines a siren/strobe, custom emergency message player, and PA system in a single device.
• Alert modes: Visual strobe, siren, pre-recorded audio, or live broadcast.
• Audio sources: Built-in siren, onboard MP3/WAV files, or external public address input.
• Custom messages: Supports MP3/WAV uploads up to 2 MB via micro-USB.
• Power: 9–15V DC with low current consumption.
• Alarm inputs: 2 × inputs; Input 1 activates a 115 dB siren, while Input 2 overrides it to play a custom message.
• PA speaker: 20W output; PA broadcasts take priority and override both alarm inputs (max input 2V).
• Security: Built-in tamper alarm output.
• Protection: IP65-rated weatherproof enclosure for indoor and outdoor use.

TypeSiren/Strobe
Operating voltage9~15 VDC
Current Draw (max.) – Strobe50mA@12VDC
Current Draw (max.) – Siren1A@12VDC
Current Draw (max.) – Both1050mA@12VDC
Siren volume115dB
Speaker rating20W Peak
Strobe flash rate60 per minute
Tamper output100mA@30 VAC/VDC
IP ratingWeatherproof IP65
Operating humidity0~95%
Operating temperature-4°~131° F (-20°~55° C)
Housing materialWhite polycarbonate plastic
Lens ColorClear
Dimensions6-1/8″x7″x4-1/2″ (155x178x115 mm)
Weight2-lb 2-oz (957g)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
