ZKteco USA - F18-ID - Fingerprint Standalone Access Control
- • Audio-visual indication for acceptance and rejection of valid/invalid fingerprints
- • More simple and convenient operation
- • Streamlined and slim design for narrow spaces
- • ZMM210 hardware with 1.2GHz CPU further speeds up processing time
- • Wiegand input & output
- • Network interface by TCP/IP or RS485
- • Webserver
- • Anti-passback
- • Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
- • Adopts new firmware which optimizes various functions and supports flexible user privilege setting for multi-level management
| Fingerprint Capacity | 3000 Templates |
| Card Capacity | 5,000 (Optional) |
| Transaction Capacity | 30,000 Transactions |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger VX9.0&10.0 |
| Communication | RS232/485, TCP/IP, USB-host |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Input and Output |
| Display | TFT LCD Color Screen |
| Interface Styles | Common, Matrix and Magic styles |
| Standard Function | Webserver, Anti-passback |
| Optional Function | ID Card, Mifare Card |
| Power Supply | 12V DC,3A |
| Operating Temperature | 0 ℃- 45 ℃ |
| Operating Humidity | 20%-80% |
| Dimension (WxDxH) | 80 x 183 x 42 mm |

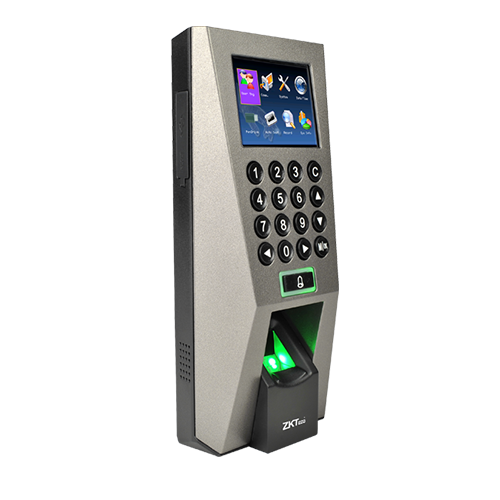

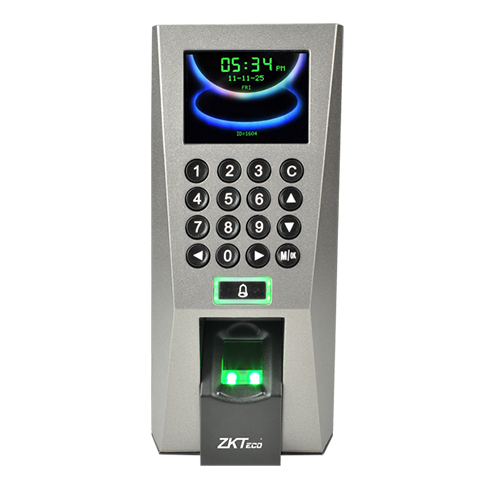

The F18-ID is an innovative biometric fingerprint reader designed for access control applications. Thanks to its high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It features ZKTeco’s latest firmware, offering a user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses a ZMM210 core board with a 1.2 GHz CPU. The optimization of both the hardware platform and the firmware, the new F18 can verify fingerprints even more efficiently. The device can be installed either as a standalone unit or with any third-party access control panels that support the standard Wiegand signal. TCP/IP and RS485 are also available, enabling the F18 to be used in different networks.
