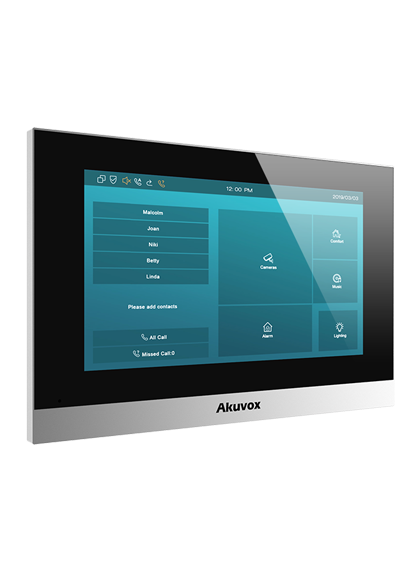

The Akuvox C313W multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.
Features:
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the 2-wire IP network
- Powered by NS-2 or external source
- Super long transmission distance via 2-wire cable
- Support US or European electrical wall box mountin
| Specifications | |
| Physical & Power | Front panel: Plastic RAM / ROM: 64MB / 128MB Display: 7 Inch TFT LCD Screen: 7 Inch capacitive touch screen Wi-Fi: IEEE802.11 b/g/n, @2.4GHz RS485 port: Support Relay out: 1 Bell in: 1 I/O: 8 Microphone: -58dB Speaker: 4Ω / 2W Ethernet ports: 2xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Installation: Wall-mounted & Desktop Dimension: 200.2x132.2x27.2mm Working Humidity: 10~90% Working Temperature: -10°C ~ +45°C Storage Temperature: -20°C ~ +70°C |
| Touch Screen Display | Display Mode: Normally white, Transmissive LCD Size: 7inch (Diagonal) Resolution: 800x480 Contrast ratio: 500:1 Luminance: 220 cd/m2 Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower Touch Screen: Projected capacitive |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: Out-of-band DTMF (RFC2833), SIP Info Echo Cancellation |
| Video | Streaming formats: H.264 |
| Networking | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) |
| Application Scenario | Villas Apartment complexes Home automation systems Modern interiors |
