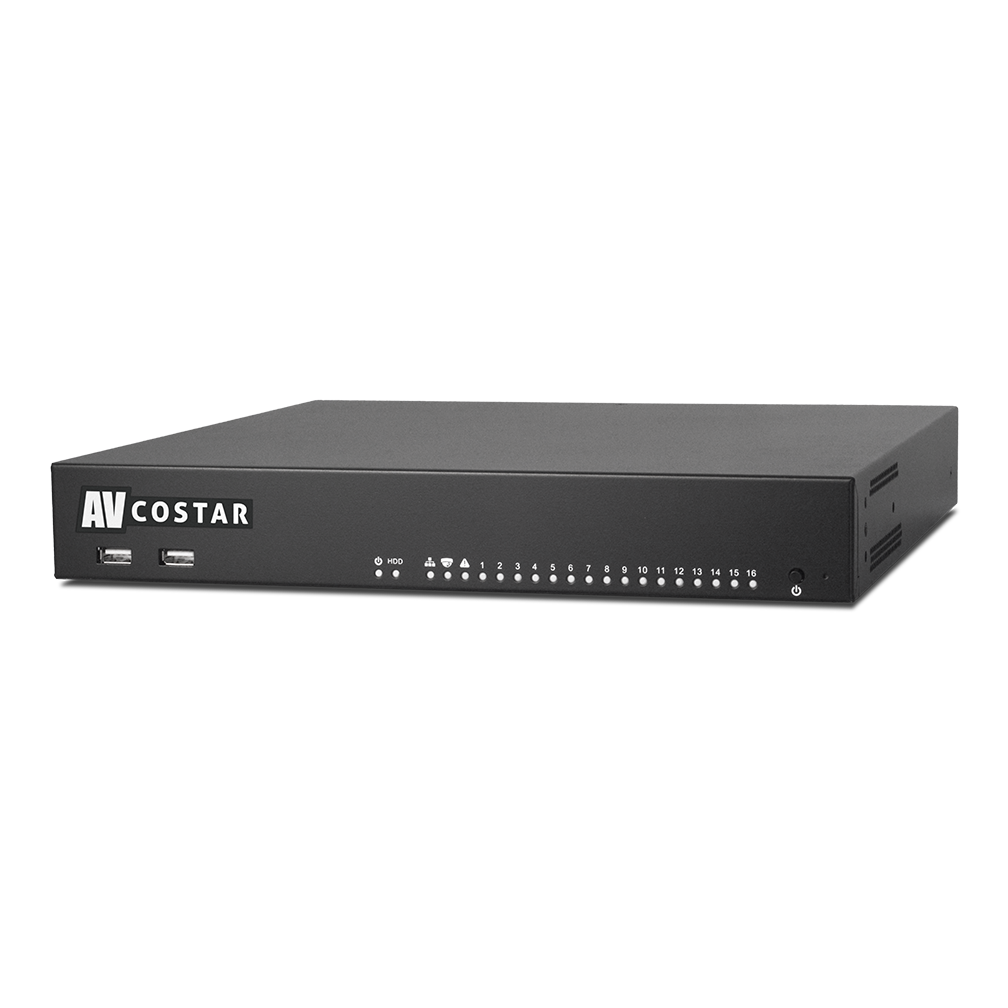

Arecont Vision - AV-CN1600-4T - 16 Port PoE NVR Appliance, Linux, 4TB (Recording Licenses Not Included)
Part number:
AV-CN1600-4T
Price:
AV Costar's ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allows you to centralize user management, monitor the health of your recording system, and take advantage of time saving feature like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.
Features:
- NDAA Compliant
- 1-Year Advanced Replacement
- 3-Year Hardware Warranty
- Dual NIC
- Intel Celeron Processor
- Solid State OS Drive (SSD)
- IP Channel Upgrades
- 24 Max Channel Count (8 Non-PoE Channels)
- 16 PoE Channels
- Built-in PoE Switch
- Linux OS
- 2 Hard Disk Drives (HDDs)
- 4TB Storage Capacity
- Cloud Video Export and Sharing
- ConteraVMS Ready
- Cloud Management with ConteraWS
| Specifications | |||
| General | |||
| Network | Dual gigabit NICs | ||
| Keyboard and Mouse | Included | ||
| DVD Drive | N/A | ||
| PoE Switch Load | 8CH | 100W | |
| 16CH | 140W | ||
| Operating Temperature | Max temperature: 104°F (40°C) | ||
| OS Drive Configuration | SSD | ||
| Storage Configuration | 8CH | Up to 16TB | |
| 16CH | Up to 20TB | ||
| Mounting Hardware | 8CH | Wall mount kit included | |
| 16CH | Rack mount installation kit included | ||
| Warranty | 3 Years, 1 year advanced replacement | ||
| System Control | Keyboard, mouse (included) | ||
| Electrical | |||
| NVR Input Voltage | 52-56VDC | ||
| Power Consumption | 8CH | 135W max | |
| 16CH | 200W max | ||
| Power Supply Input | 100–240VAC auto switching | ||
| Compliance | |||
| IP Camera Support | AV Costar / ONVIF Profile S / RTSP | ||
| Certification | UL certified | ||
| CoO | Made in Taiwan | ||
| Mechanical | |||
| Dimensions | 8CH | Unit | 8.7" W (221mm) x 1.7" H (44mm) x 10.8" L (275mm) |
| Packaged | 20" W (508mm) x 8" H (203.2mm) x 14" L (355.6mm) | ||
| 16CH | Unit | 11.8" W (300mm) x 1.7" H (44mm) x 11" L (280mm) | |
| Packaged | 20" W (508mm) x 8" H (203.2mm) x 14" L (355.6mm) | ||
| Weight | 8CH | Unit | 3.5lbs (1.59kg) |
| Packaged | 16lbs (7.26kg) | ||
| 16CH | Unit | 5lbs (2.27kg) | |
| Packaged | 16lbs (7.26kg) | ||
