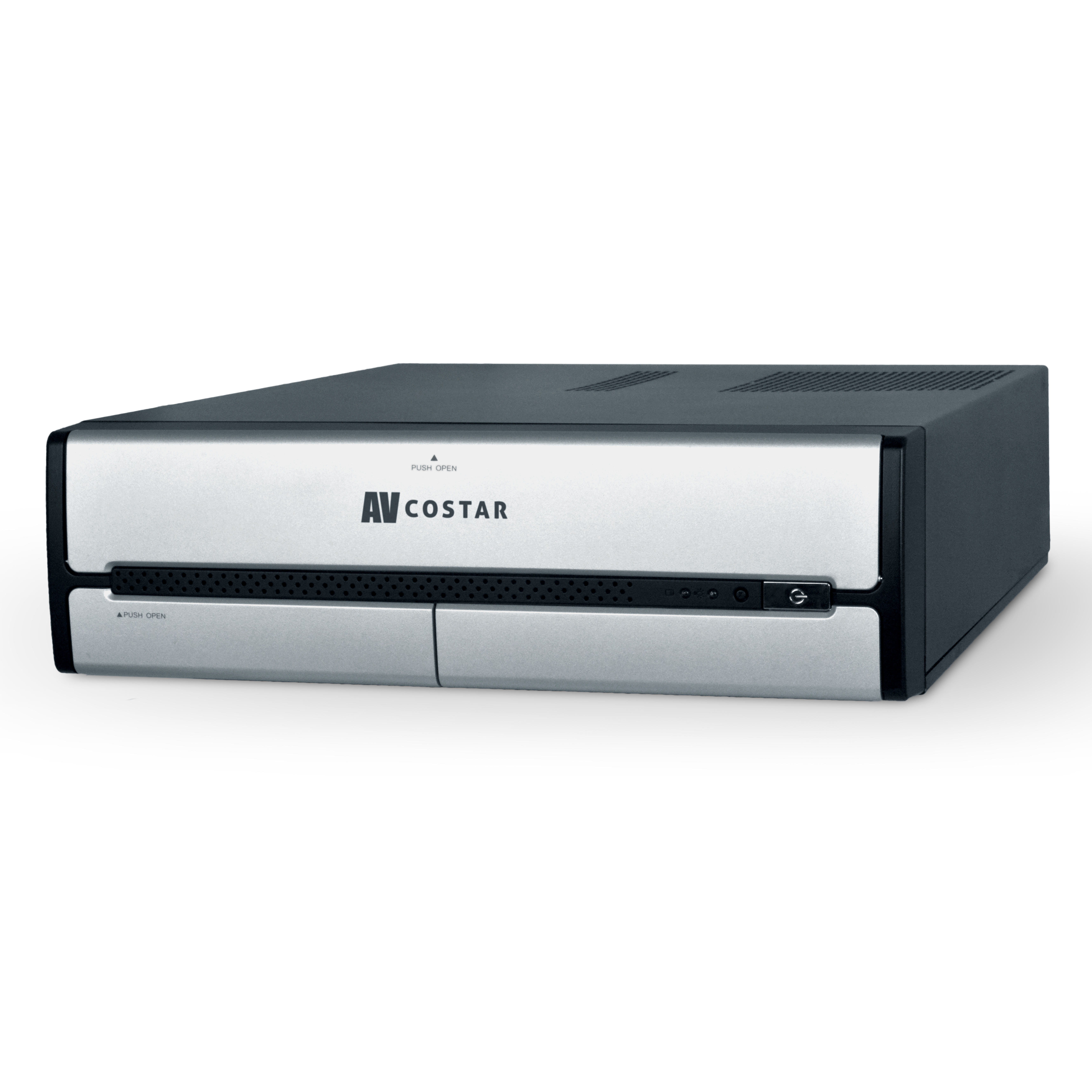

Arecont Vision - AV-CSCDX16T - Compact Desktop, Linux, 16TB
Part number:
AV-CSCDX16T
Price:
AV Costar ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allows you to centralize user management, monitor the health of your recording system, and take advantage of time saving feature like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.
Note: ConteraWS License Sold Separately.
Features:
- NDAA Compliant
- 1-Year Advanced Replacement
- 3-Year Hardware Warranty
- Dual NIC
- Intel Core i5 Processor
- Solid State OS Drive (SSD)
- IP Channel Upgrades
- 64 Max Channel Count
- Linux OS (Optional Windows OS Upgrade)
- 3 Hard Disk Drives (HDDs)
- 16TB Storage Capacity
- Cloud Video Export and Sharing
- ConteraVMS Ready
- Cloud Management with ConteraWS
| Specifications | |
| Max IP Channels | 64 |
| Max IPS Per Channel | 30IPS (dependent on camera settings) |
| Recording Resolutions | Up to 4K (dependent on camera settings) |
| Recording Rate | Up to 250Mbps |
| Maximum Display Resolution | 4K (HDMI) |
| Image Compression | H.264 |
| Audio Channels | IP audio support |
| Video Outputs | 2 x HDMI |
| Alarm Sensor Inputs | 4 x Form A contacts |
| Digital Relay Outputs | 4 x Form A contacts |
| USB Ports | Front: 2 x USB 2.0 ports Rear: 4 x USB 3.0 / 2 x USB 2.0 ports |
| Video Signal Loss Detection | Yes |
| Maximum Console Live View | 16 Channels |
| Maximum Client Side Live View | 64 Channels |
| Maximum Global Search | 64 Channels |
| Motion Detection | Arecont Vision® camera side or ONVIF Profile S server side |
| Remote Operation | ConteraVMS® thick client / thin (web) client / mobile apps |
| User Management | Web or local based user permissions and account management |
| Web or local based user permissions and account management | Continuous / Motion / Continuous + Motion / Live Only |
| Playback Search | Multi-channel playback (1, 4, 9, 16) / Calendar / Timeline / Thumbnail / Event (VMS and web client) / Object (VMS) |
| Clip Backup | Cloud / USB |
| Digital Signature Support | MP4 |
| Web Connect | Yes |
| Operating System | Linux® (standard) / Windows® (optional) |
Name
Description
Size
Downloads
File
Data Sheet
1.2mb
File
Product Line Cards
0.9mb
File
Product Matrix
0.4mb
File
Quick Guide
0.8mb
