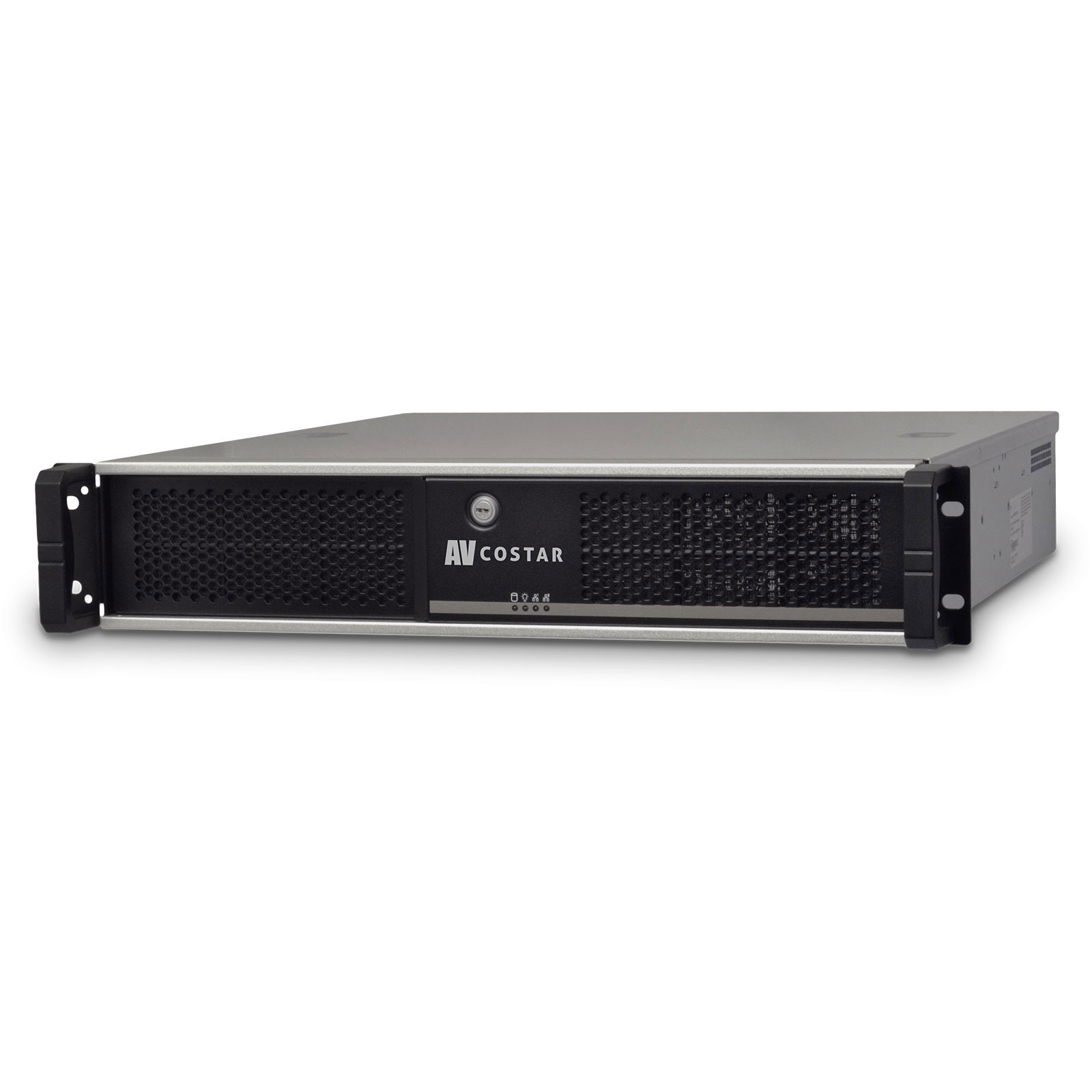

Arecont Vision - AV-CSCX16TR - 2U Compact Server, Windows, 16TB, Removable HDD Bay RAID5



Part number:
AV-CSCX16TR
Price:

64 Channel Cloud Managed Rack Mountable Compact Network Video Recorder Server with Windows OS, Dual NIC, RAID5, and 16TB Storage Capacity



AV Costar ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allows you to centralize user management, monitor the health of your recording system, and take advantage of time saving feature like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.



Features:

  • Cloud Management with ConteraWS
  • ConteraVMS Ready
  • Cloud Video Export and Sharing
  • 16TB Storage Capacity (12TB Usable with RAID5 Redundant Backup)
  • 4 Removable Hard Disk Drives (HDDs)
  • Windows OS
  • 64 Max Channel Count
  • IP Channel Upgrades
  • Solid State OS Drive (SSD)
  • RAID5
  • Intel Core i5 Processor
  • Dual NIC
  • 2U Rack Mountable
  • 3-Year Hardware Warranty
  • 1-Year Advanced Replacement
General
Keyboard and MouseIncluded
Operating TemperatureMax temperature: 104°F (40°C)
OS Drive ConfigurationDedicated Solid State Drive
Maximum Storage Configuration40TB (30 usable RAID models only)
ProcessorIntel Core i5 (upgradeable to i7)
Rack MountInstallation kit included
Warranty3 Years, 1-year advanced replacement
Electrical
Input Voltage300W (100V–240V auto-switching)
Power Consumption126.2W max
Compliance
IP Camera SupportArecont Vision / ONVIF Profile S / RTSP
CertificationUL certified
CoOMade in the USA
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
File
Quick Start Guide
0.8mb
File
Product Matrix
0.5mb
