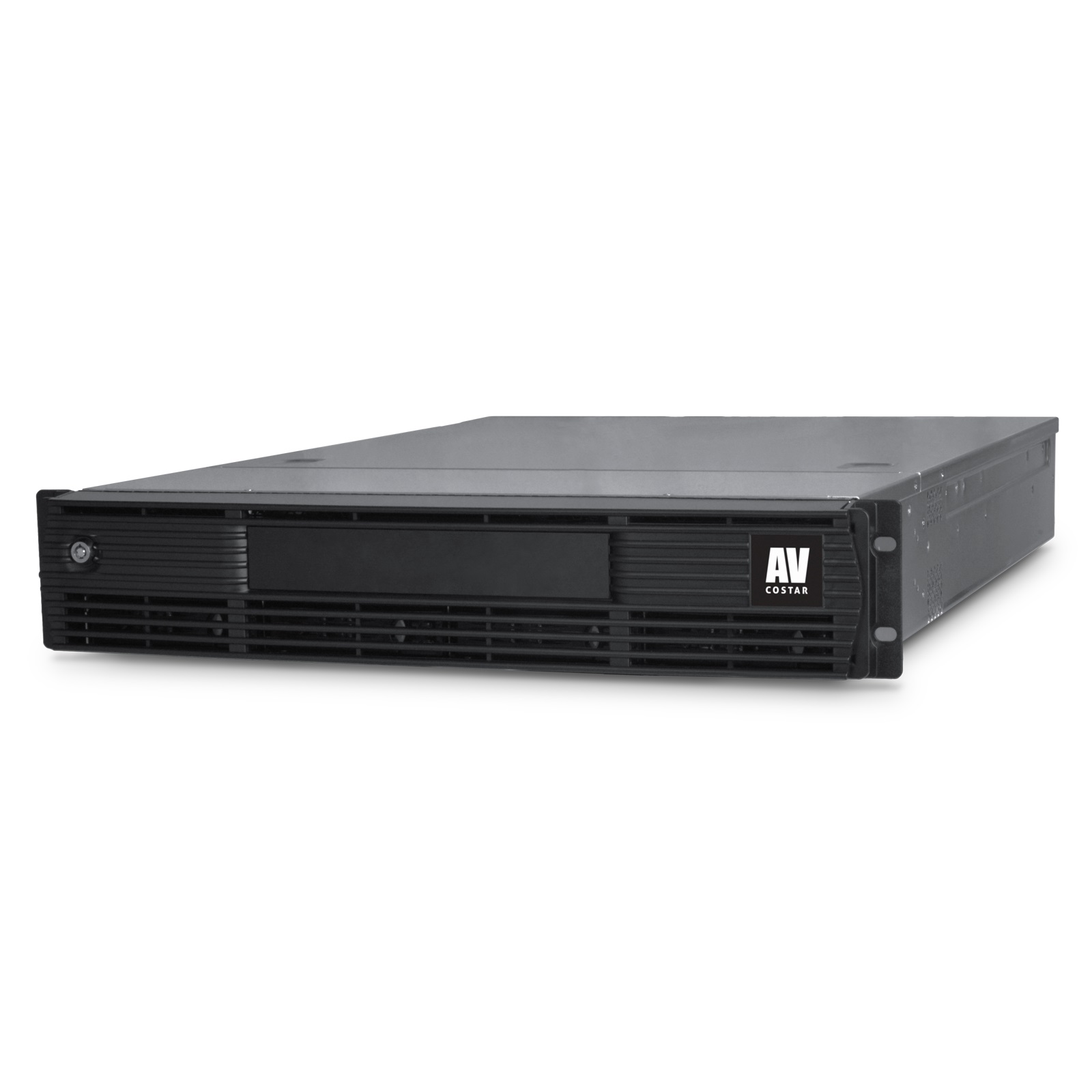

Arecont Vision - AV-CSHPX96T - 2U Enterprise Server, Windows, 96TB, (Recording Licenses Not Included)
Part number:
AV-CSHPX96T
Price:

AV Costar ConteraCMR Cloud Managed servers are designed to offer maximum performance and reliability, paired with the powerful features and functionality of the ConteraWS web services platform. ConteraWS web services allows you to centralize user management, monitor the health of your recording system, and take advantage of time saving feature like online export and video or clip file sharing. Simply enable ConteraWS on your recorder, and then connect using the ConteraWS web client to manage recorder configurations and user access.

Note: ConteraWS License Sold Separately.



Features :

  • NDAA Compliant
  • 1-Year Advanced Replacement
  • 3-Year Hardware Warranty
  • 2U Rack Mountable
  • Dual NIC
  • Intel Core i7 Processor
  • RAID5
  • DVD-ROM Drive
  • Solid State OS Drive (SSD)
  • IP Channel Upgrades
  • 64 Max Channel Count (Upgradeable to 128)
  • Windows OS
  • 4 Removable Hard Disk Drives (HDDs)
  • 96TB Storage Capacity
  • Cloud Video Export and Sharing
  • ConteraVMS Ready
  • Cloud Management with ConteraWS

General

Keyboard and MouseIncluded
DVD DriveYes
Operating TemperatureMax temperature: 104°F (40°C)
OS Drive ConfigurationDedicated Solid State Drive
Maximum Storage ConfigurationJBOD80TB
ProcessorIntel Core i7
Rack MountInstallation kit and rack slide kit included
Warranty3 Years, 1 year advanced replacement

Electrical

Input VoltageStandard650W (100V–240V auto switching)
Redundant875W (100V–240V auto switching)
Power ConsumptionJBOD160W max
RAID175W max

Compliance

IP Camera SupportAV Costar / ONVIF Profile S / RTSP
CertificationETL (Intertek) certified
CoOMade in the USA

Mechanical

Dimensions

(See Dimensions)

Unit17.2" W (438mm) x 3.5" H (88mm) x 26" L (660mm)
Packaged24" W (610mm) x 8" H (203mm) x 34" L (864mm)
WeightUnit43lbs (19.5kg)
Packaged58lbs (26.3kg)
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Quick Guide
0.8mb
File
Integration - Quick Start Guide
0.8mb
