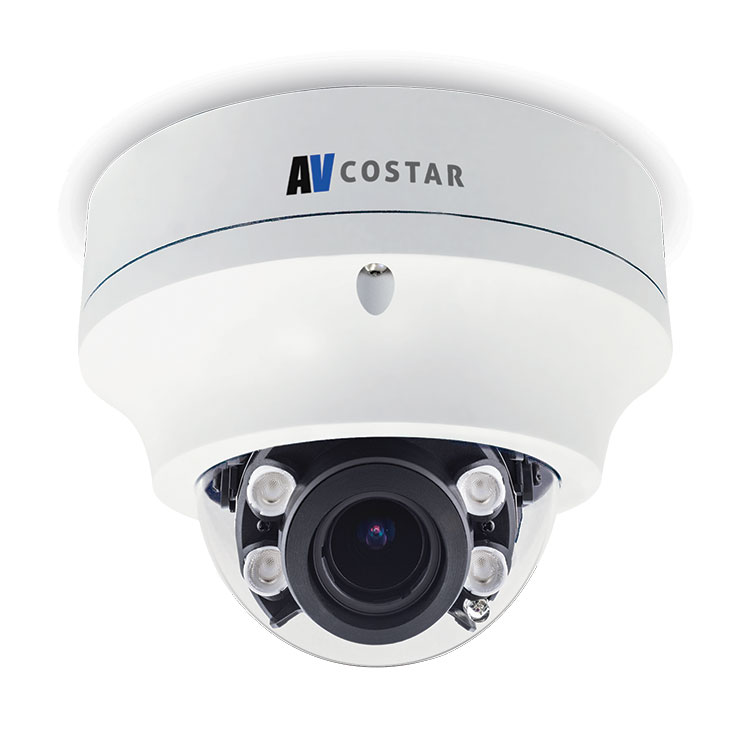

The ConteraIP Outdoor Dome megapixel camera features 5MP resolution for optimum performance. The ConteraIP Outdoor Dome combines a day/night mechanical IR cut filter with an integrated motorized remote focus and zoom varifocal lens for excellent, optimal image quality.
Regardless of the time of day, the ConteraIP Outdoor Dome is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR™ (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions.
For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes. Built-in Smart IR LED illumination automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera.
AV Costar was the first to bring H.264 to the mainstream market and recently developed SNAPstream (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.
The microSDXC card slot supports up to 1TB of capacity for convenient onboard storage. The camera’s power can be supplied via a Power-overEthernet (PoE - IEEE 802.3af) compliant network cable connection. The ConteraIP Outdoor Dome is IP66 rated for both indoor and outdoor applications. All models feature an impact resistant cast-aluminum housing.
The ConteraIP Outdoor Dome is ONVIF (Open Network Video Interface Forum) Profile S, G, and T compliant, providing interoperability between network video products regardless of manufacturer.
Features:
- NDAA Compliant
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Easily Adjustable 3-Axis Gimbal
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- 1TB Capacity MicroSDXC Card Slot for Onboard Storage
- Audio In / Out
- Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 82ft (25m) for Scenes with Low or No Ambient Light
- All-in-One H.265/H.264 Total PoE Solution, PoE and Auxiliary Power: 12V DC
- Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- Triple Encoder: H.265/H.264/MJPEG
- On-Screen Display (OSD)
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- 5MP Resolution
- True Day/Night Functionality with Mechanical IR Cut Filter
- NightView for Strong Low Light Performance
- SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- Remote Focus/Zoom Motorized Lens
Programmability
| Optics | Remote focus, remote zoom | |
| Low-Light Performance | NightView technology | |
| Smart IR | ||
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms | |
| Motion Detection | Real-time, 1024 detection zones | |
| Privacy Masking | Unlimited | |
| Backlight Compensation | Auto | |
| White Balance Mode | Auto/manual | |
| Gain Control | Auto | |
| Flicker Control* | 5Hz–255Hz adjustable | |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror | |
| Scaling | 1080p | 1920x1080, 1280x720, 960x540, 640x480, 640x360 |
| 5MP | 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes | |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) | |
| Bit rate and bandwidth limitation control | ||
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue | |
| Password | 16-digit ASCII character password | |
| On-Screen Display (OSD) | Time/date/camera name/custom text | |
Data Transmission
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| 10/100Base-T Ethernet network interface, RJ45 | |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
Event Management
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record JPG/mp4 |
Compliance
| Industry Standard | ONVIF Profile S, G, T conformant |
| Listings | UL (CB) UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE) EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
Environmenta
| Operating Temperature | -20°C (-4°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
General Electrical
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) | |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 | |
| Total PoE solution (no external power requirement) | ||
| Auxiliary Power | 12V DC | |
| Power Consumption | 1080p | 8.5W max |
| 5MP | 10W max | |
Mechanical
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble | |
| IP66 weather proof standard | ||
| Impact resistant, IK-10 rated | ||
| Gimbal | Easy 3-axis camera adjustment with 355° pan, and 60° tilt, and 180° Z-rotation | |
Dimensions (See Dimensions) | Unit | Ø 5.55" (141mm) x 4.09" H (104mm) |
| Packaged | 5.9" H (150mm) x 6.7" W (170mm) x 7.28" L (185mm) | |
| Weight | Unit | 2.09lbs (0.95kg) |
| Packaged | 2.16lbs (0.98kg) | |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) | |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) | |
Audio Electrical
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/8 bit |
| Input/Output | Line in* / Line output |
