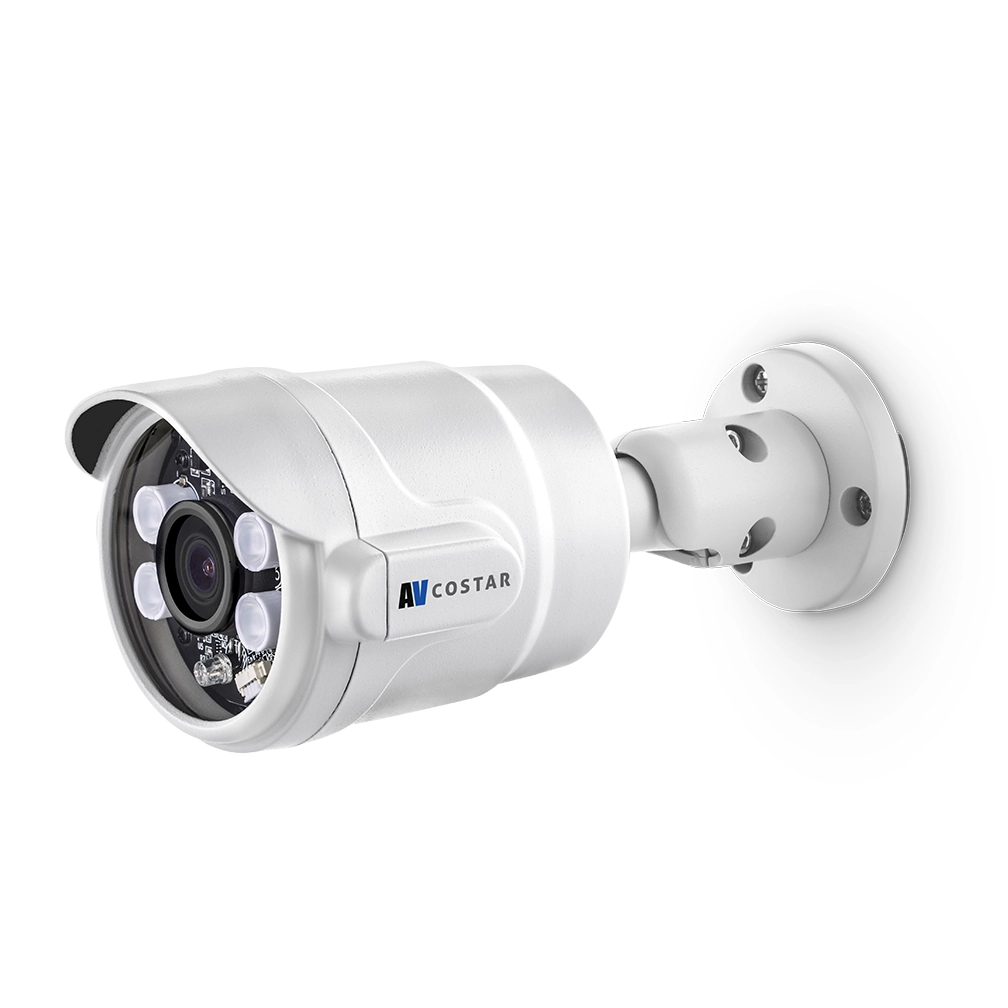

Arecont Vision - AV05CMB-100 - 5 MP Day/Night Indoor/Outdoor Bullet-Style IP Camera
- • 5MP Resolution
- • 3.6mm Integrated Lens
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- • On-Screen Display (OSD)
- • Defog Technology
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- • All-in-One H.265/H.264 PoE Solution
- • Integrated IR LEDs
- • IK-10 Impact-Resistant Housing
- • Outdoor Rated IP66
- • Easily Adjustable 3-Axis Wall Mount
| Camera | |
|---|---|
| Image Sensor | 5MP CMOS Progressive Sensor |
| Optical Format | 1/2.9" |
| Minimum Illumination | Color (Day Mode): 0.1 Lux |
| B/W (Night Mode): 0.01 Lux | |
| Full FOV Resolution | 2592 H x 1944 V |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB |
| Frame Rates | Single Stream: Up to 30fps (5MP) |
| Multi-Stream: Up to 15fps (5MP) + 10fps (5MP) | |
| Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) | |
| Lens | 3.6mm, F2.0, H-FOV = 62°, V-FOV = 46° |
| Programmability | |
| Optics | Fixed lens |
| Low-Light Performance | NightView™ technology |
| Smart IR | Programmable |
| Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Scaling | 1080p: 1920x1080, 1280x720, 960x540, 640x480, 640x360, 320x240 |
| 5MP: 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 640x480, 640x360, 320x240 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue Electronic pan, tilt, zoom (PTZ) |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Ethernet | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS, record JPG/mp4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, Q, T conformant |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -20°C (-4°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power requirement) |
| Power Consumption | 1080p: 6.6W PoE max |
| 5MP: 7.5W PoE max | |
| IR Illuminator | |
| LEDs | 4pcs, Smart IR |
| Projection Distance | 66ft (20m) max |
| Mechanical | |
| Casing | Die-cast aluminum cylindrical (bullet-style) housing IP66 weather proof standard IK-10 impact-resistant |
| Mount | Easily adjustable 3-axis with 360° pan, 90° tilt and 360° z-axis |
| Dimensions | Unit: 2.8" H (71.5mm) x 3.39" W (86mm) x 6.8" D (172.8mm) |
| Packaged: 4.7" H (120mm) x 5.3" W (135mm) x 7.9" L (200mm) | |
| Weight | Unit: 0.95lbs (0.43kg) |
| Packaged: 1.39lbs (0.63kg) | |
| Body Color | Arecont Vision® White (Pantone P179-1C) |
The outdoor-ready Contera Micro Bullet megapixel camera features 1080p and 5-megapixel resolution for optimum performance. It combines a day/night mechanical IR cut filter with an integrated 3.6 mm lens. Regardless of the time of day, the Contera Micro Bullet is prepared for any lighting condition. For applications with poor lighting conditions, enhanced WDR (wide dynamic range) at 120 dB provides the best visual balance in shaded and bright light conditions. For clear colour images in low light, NightView offers strong low-light sensitivity for capturing details in extremely poorly lit scenes and is further enhanced by built-in Smart IR LED illumination, which automatically adjusts the output in response to the distance of an object in view, preventing overexposure when the object is very close to the camera. The Contera Micro Bullet is IP66 rated for both indoor and outdoor applications. All models feature an impact-resistant cast-aluminium housing capable of withstanding the equivalent of 55 kg (120 lbs) of force. The Contera Micro Bullet is ONVIF (Open Network Video Interface Forum) Profile S compliant, providing interoperability between network video products regardless of manufacturer.
