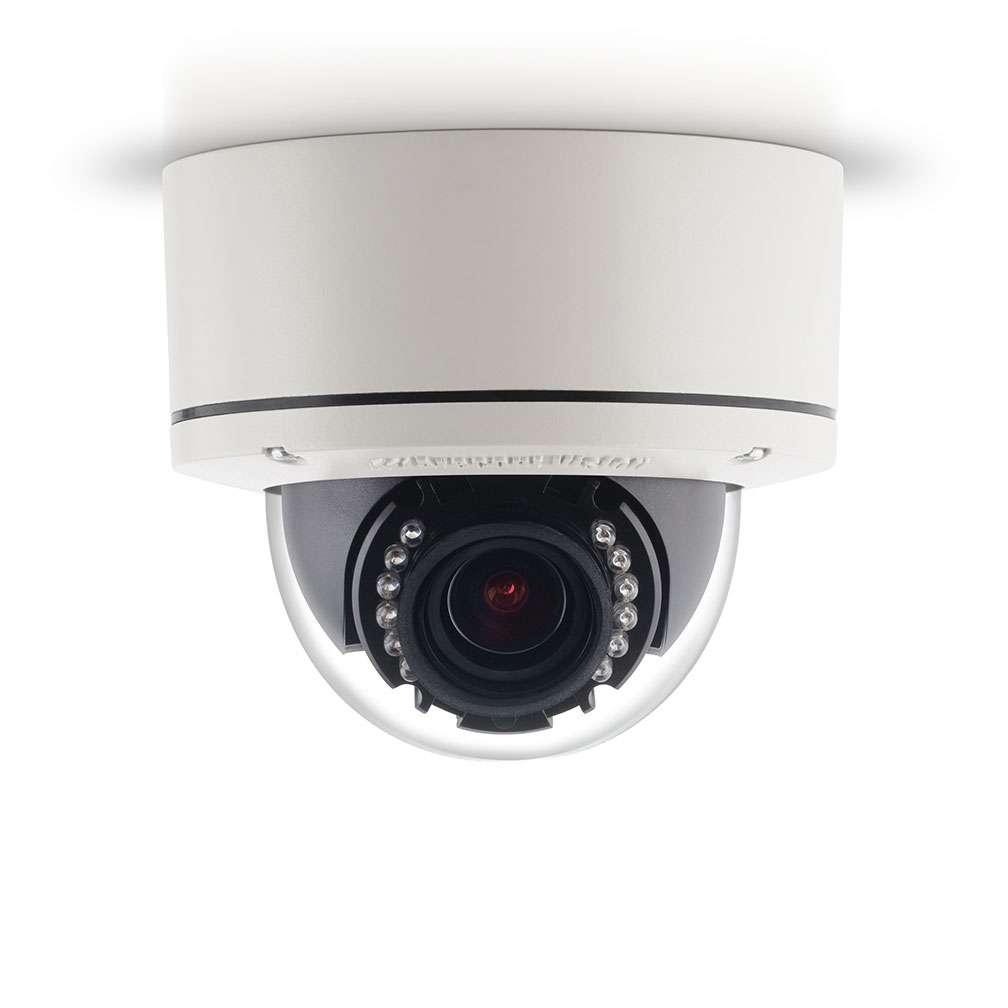

Arecont Vision - AV08ZMD-400 - 4K (8.3MP) MegaDome 4K 3840x2160, 30/60fps, Day/Night
Part number:
AV08ZMD-400
Price:

8.3 Megapixel (MP) H.264 Motorized P-Iris Lens True Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream (Smart Noise Adaptation and Processing), NightView, WDR (Wide Dynamic Range), and IR LEDs



The 8-Megapixel/1080p MegaDome 4K dual-mode network camera is the new generation of Arecont Vision’s full line of H.264 MegaDome cameras. This fully compliant implementation of H.264 (MPEG-4, Part 10) provides a full 3840 x 2160 megapixel resolution at full video frame rates of 30 frames per second (fps) at 8-megapixel and 60fps in 1080p binning mode. The MegaDome 4K camera line provides an all-in-one solution with integrated 12-megapixel day/night camera, remote focus, remote zoom, P-iris, 4.4-10mm lens, IP66 water/dust ingress rating and a vandal-resistant dome enclosure with IK-10 rating that features a groundbreaking installer-friendly design. With the features of SNAPstream to reduce bandwidth without impacting image quality, scaling, binning mode, privacy masking, extended motion detection, and flexible cropping, the MegaDome 4K is a high sensitivity, Power over Ethernet (PoE - IEEE 802.3af) compliant camera. Built with Arecont Vision’s massively-parallel MegaVideo processing technology, this camera offers more than 27-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for both indoor and outdoor applications.



Features:

  •  8.3 Megapixel at 30fps
  •  4K/1080p Dual Mode with 1080p at 60fps
  •  SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
  •  Remote Focus/Zoom P-Iris Lens
  •  P-Iris Control to Get Best Depth of Field and Image Clarity
  •  WDR: See Clearly in Shaded and Bright Light Conditions Simultaneously
  •  NightView Technology for Strong Low Light Performance
  •  Binning Mode for Strong Low Light Performance
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  •  Dual Encoder H.264/MJPEG
  •  Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling
  •  Network Protocols Include SNMP, SNTP, HTTPS, 802.1x, IPv4, DHCP, and More
  •  IR LEDs with Adjustable Beam Angle and LED Intensity
  •  Total PoE Solution (No External Power Required for IR LEDs) with Auxiliary Power: 12–24V DC
  •  Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  •  Easily Adjustable 3-Axis Gimbal

Programmability

OpticsRemote focus, remote zoom, P-iris
Low Light Performance
  • NightViewTM technology
  • Pixel binning mode
Picture-in-PictureSimultaneous delivery of full field-of-view and zoomed images
Programmable Shutter SpeedControls motion blur, 1ms–500ms
Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
ScalingNon-integer scaling down to 128x96
Casino ModeMaintains 30fps or higher
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationMulti-matrix white balance
Flicker Control5Hz–255Hz adjustable
Image Rotation180° image flip
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type
  • H.264 MPEG-4, Part 10 ISO/IEC 14496-10 AVC
  • 21 levels of quality
Network ProtocolsSNMP, SNTP, HTTP1.0, HTTP1.1, HTTPS, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100/1000 Base-T Ethernet
Multi-Streaming4 non-identical streams




Name
Description
Size
Downloads
File
Data Sheet
0.5mb
