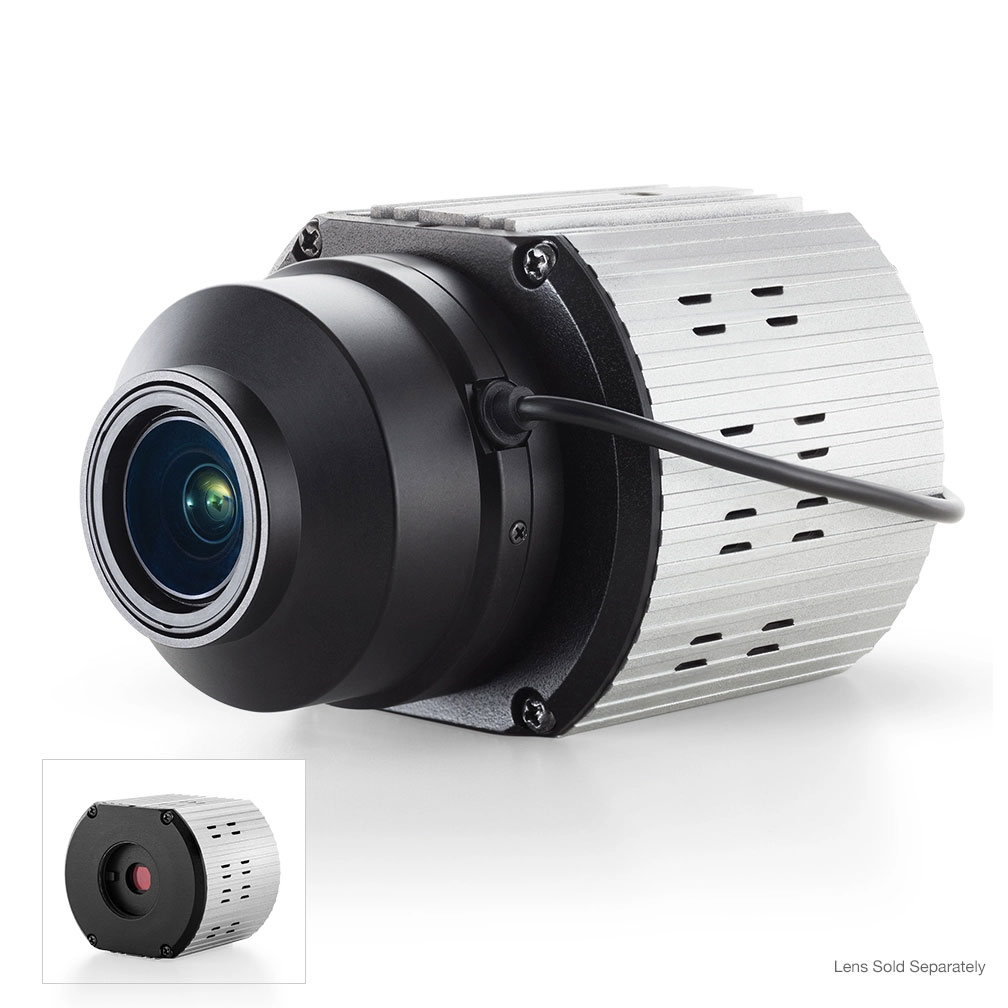

Arecont Vision - AV08ZMV-300 - 4K (8.3MP) MegaVideo 4K 3840x2160, 30/60fps, Day/Night
Part number:
AV08ZMV-300
Price:

8.3 Megapixel (MP) H.264 True Day/Night Indoor Box-Style IP Camera with SNAPstream (Smart Noise Adaptation and Processing), NightView, and WDR (Wide Dynamic Range)



The 8.3MP/1080p MegaVideo 4K dual mode network camera is the new generation of Arecont Vision’s MegaVideo cameras. This fully compliant implementation of H.264 (MPEG-4, Part 10) provides full 3840 x 2160 megapixel resolution at full video frame rates of 30 frames per second (fps)† at 8MP and 60fps† while in 1080p binning mode. The series combines a day/night mechanical IR cut filter with a choice of three ultra high definition P-iris lenses for precise, optimal image quality. MegaVideo 4K performs exceptionally well in very low-light thanks to NightView, making it capable of covering areas where very little light is present. Features include SNAPstream (Smart Noise Adaptation and Processing) to reduce bandwidth without impacting image quality, scaling, binning mode, privacy masking, extended motion detection, flexible cropping, and Power over Ethernet (PoE - IEEE 802.3af). Built with Arecont Vision massively-parallel processing technology, MegaVideo 4K offers more than 27-times the resolution of standard resolution IP cameras. It offers the ability to output full real-time frame rates and deliver high-quality megapixel imaging for both indoor and outdoor* applications. The motorized remote focus/zoom lenses with P-iris control make set-up and maintenance easy. The camera’s power can be supplied via a Power-over-Ethernet compliant network cable connection or with power from a 12–24V DC/24V AC power supply. The camera's interface allows for an intuitive, fast, and easy configuration.



Features:

  •  8.3MP Resolution at 30fps
  •  4K/1080p Dual Mode with 1080p at 60fps
  •  SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
  •  P-Iris Control for Best Depth of Field and Image Clarity
  •  WDR: See Clearly in Shaded and Bright Light Conditions Simultaneously
  •  NightView and Binning Mode for Strong Low Light Performance
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  •  Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling
  •  Dual Encoder H.264/MJPEG
  •  Network Protocols Include SNMP, SNTP, HTTPS, 802.1x, IPv4, DHCP, and More
  •  Many Remote Focus/Zoom Motorized, P-Iris Lenses to Choose From (Sold Separately)
  •  Small Size for Flexible Mounting Options
  •  Total PoE Solution (No External Power Required for IR LEDs) with Auxiliary Power: 12–24V DC/24V AC
  •  Use with Arecont Vision Housings or as a Standalone Camera

Programmability

OpticsRemote focus, remote zoom, and P-iris control (when remote focus/zoom lens is used)
Low Light Performance
  • NightView
  • Pixel binning mode
Picture-in-PictureSimultaneous delivery of full field-of-view and zoomed images
Programmable Shutter SpeedControls motion blur, 1ms–500ms
Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
ScalingNon-integer scaling down to 128x96
Casino ModeMaintains 30fps or higher
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationMulti-matrix white balance
Flicker Control5Hz–255Hz adjustable
Image Rotation180° image flip
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type
  • H.264 MPEG-4, Part 10 ISO/IEC 14496-10 AVC
  • 21 levels of quality
Network ProtocolsSNMP, SNTP, HTTP1.0, HTTP1.1, HTTPS, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100/1000 Base-T Ethernet
Multi-Streaming4 non-identical streams




Name
Description
Size
Downloads
File
Data Sheet
0.5mb
File
Quick Installation Guide
1.4mb
