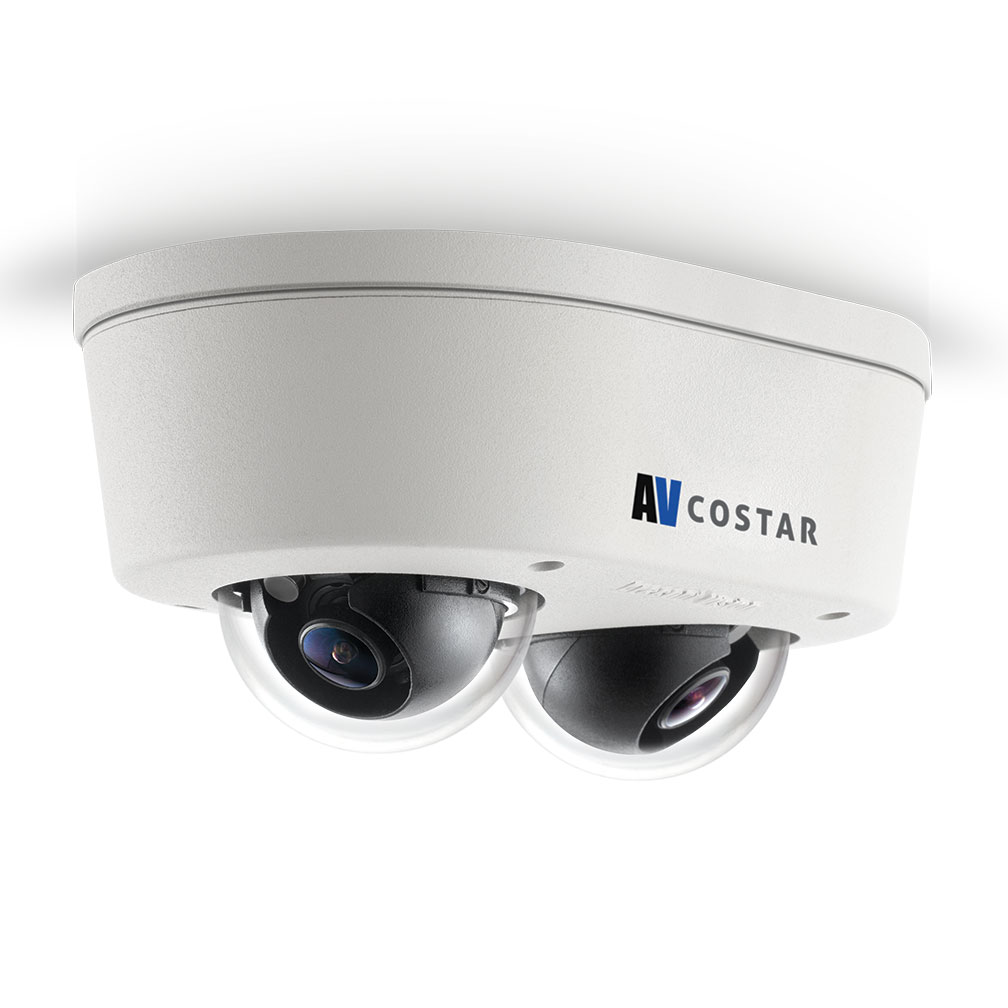

Arecont Vision - AV10856DN-28 - 10MP 2 Sensor Camera 10 MP 2 x 2592x1944 2 x 2.8mm MP Lens H.265/H.264 MicroDome Duo LX
10MP MicroDome Duo LX, 2 Sensor Camera, 10 Megapixel Total, 2 x 2592x1944, 2 x 2.8mm MP Lens, Remote Focus & Day/Night, H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 30fps, IR, Defog, Onvif, PoE , 2 x 3 Axis Gimbals, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE
Part number:
AV10856DN-28
Price:
Features :
- 10MP Resolution
- 2 x 2.8mm Lenses
- Remote Focus
- Easily Adjustable 3-Axis Gimbal
- Multiple Lens Options in a Single Camera Housing
- SNAPstream+™ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
- NightView™ for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- On-Screen Display (OSD)
- WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
- Triple Encoder: H.265/H.264/MJPEG
- Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- All-in-One Total PoE Solution PoE and Auxiliary Power: 12V-48V DC/24V AC
- MicroSDXC Card Slot for Onboard Storage
- Ultra-Discrete, Low-Profile Housing
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
| Optics | M12 lens and remote focus module | |
| Low-Light Performance | NightView technology | |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms | |
| Motion Detection | Real-time, 1024 detection zones | |
| Privacy Masking | Unlimited | |
| Backlight Compensation | Auto | |
| White Balance Mode | Auto/manual | |
| Gain Control | Auto | |
| Flicker Control | 5Hz–255Hz adjustable | |
| Scaling | 4MP | 1920x1080, 1280x960, 1280x720, 960x540, 800x600, 640x480, 640x360 |
| 10MP | 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480 | |
| 16MP | 3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480, 640x360 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes | |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) | |
| Bit rate and bandwidth limitation control | ||
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue | |
| Password | 16-digit ASCII character password | |
| On-Screen Display (OSD) | Time/date/camera name/custom text | |
