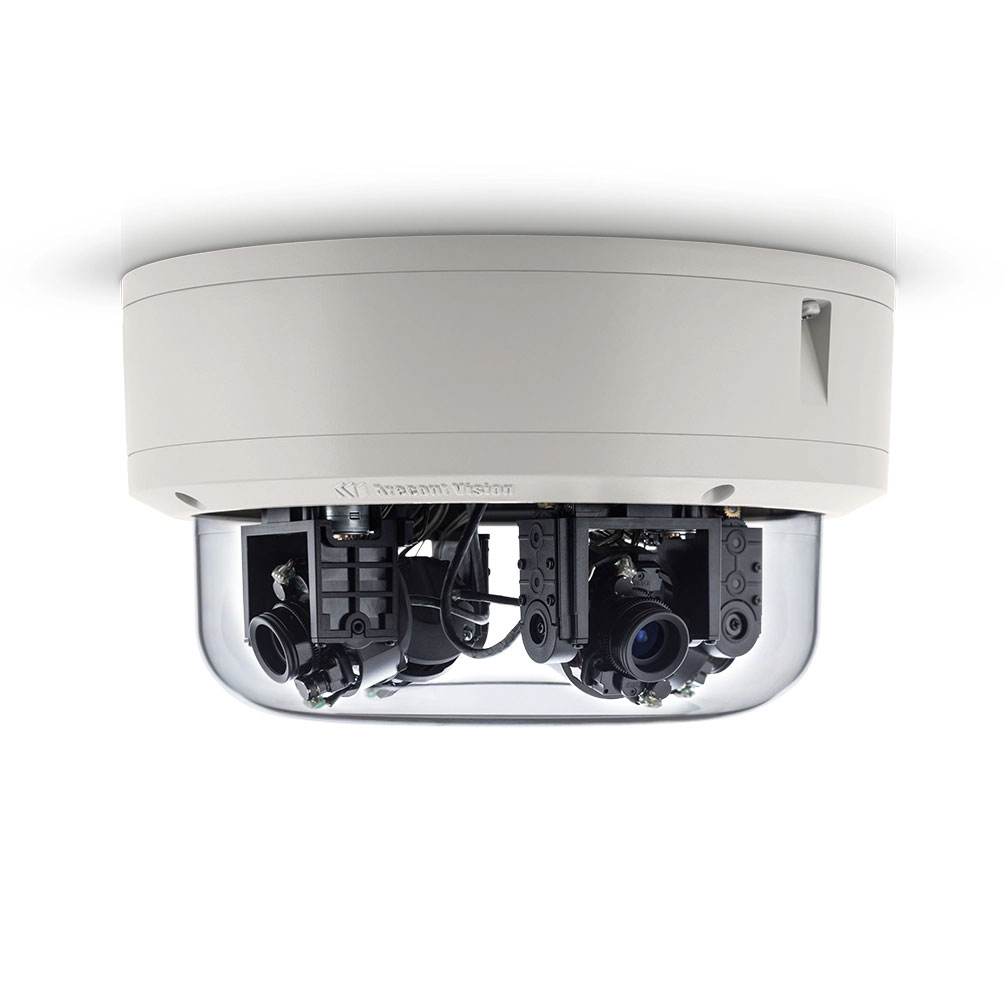

Arecont Vision - AV12375RS - SurroundVideo Omni G3, 12 Megapixel, Remote Setup with Remote Focus
Part number:
AV12375RS
Price:

12 Megapixel (MP) H.264 All-in-One Remote Setup Omni-Directional Remote-Configurable Multi-Sensor True Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream (Smart Noise Adaptation and Processing)

SurroundVideo Omni G3, 12 Megapixel, Remote Setup with Remote Focus, Zoom, Pan, and Tilt, and Day/Night H.264/MJPEG Omni-Directional Camera G3, 4 x 2048x1536, 4 x 2.8–6mm Motorized Lens, SNAPstream, Surface Mount, Indoor/Outdoor, IP66, IK-10, PoE Class 3



Features:

  •  No Touch Setup: 4 Individual Camera Gimbals Each with a Varifocal Motorized Lens That Can be Remotely Setup in Any Position Around a 360° Track
  •  Preset Positions to Create a 360°, 270°, or 180° Field of View, or Save Custom Presets
  •  SNAPstream™ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
  •  Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  •  Binning Mode for Strong Low Light Performance
  •  Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
  •  Dual Encoder H.264/MJPEG
  •  PoE and Auxiliary Power: 18–48V DC/24V AC
  •  Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  •  Complete Mounting Options

Programmability

Optics
  • Remote focus / zoom
  • Pixel Binning Mode
Picture-in-PictureSimultaneous delivery of full field-of-view and zoomed images
Programmable Shutter SpeedControls motion blur, 1ms–500ms
Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
MoonLightTM ModeExtended exposure and noise cancellation
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationAuto multi-matrix white balance
Flicker Control5Hz–255Hz adjustable
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes (WDR models)
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)
  • Auto Exposure (AE) and Gain Control (AGC) > 120dB
  • Programmable shutter speed to help control motion blur

Data Transmission

Compression Type
  • H.264 (MPEG-4, Part 10)/Motion JPEG
  • 21 levels of quality
Network ProtocolsHTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100Base-T Ethernet
Multi-Streaming8 non-identical streams
