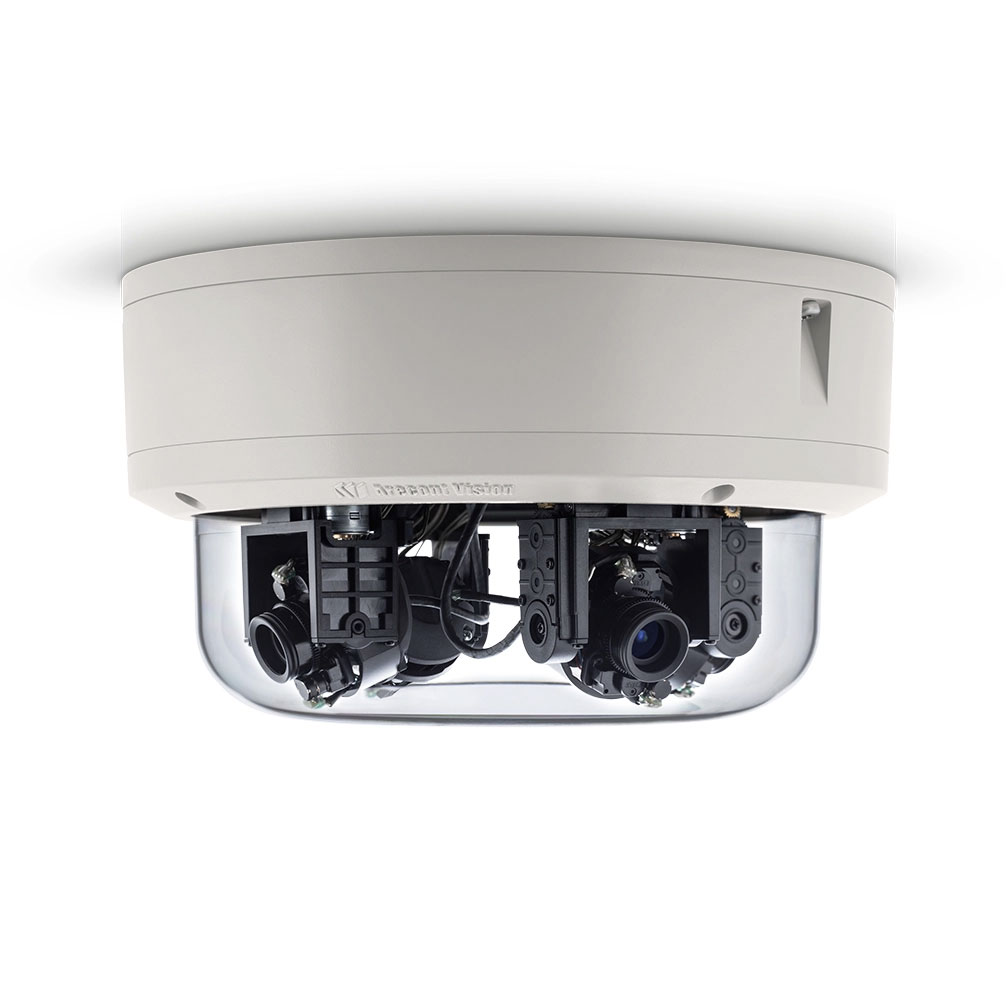

Arecont Vision - AV12376RS - SurroundVideo Omni G3, 12 Megapixel WDR, Remote Setup with Remote Focus
Part number:
AV12376RS
Price:

12 Megapixel (MP) H.264 All-in-One Remote Setup Omni-Directional Remote-Configurable Multi-Sensor True Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream (Smart Noise Adaptation and Processing) and WDR (Wide Dynamic Range)



SurroundVideo Omni G3, 12 Megapixel, WDR, Remote Setup with Remote Focus, Zoom, Pan, and Tilt, and Day/Night, H.264/MJPEG Omni-Directional Camera, 4 x 2048x1536, 4 x 2.8–6mm Motorized Lens, SNAPstream, Surface Mount, Indoor/Outdoor, IP66, IK-10, PoE Class 3



Features:

  •  No Touch Setup: 4 Individual Camera Gimbals Each with a Varifocal Motorized Lens That Can be Remotely Setup in Any Position Around a 360° Track
  •  Preset Positions to Create a 360°, 270°, or 180° Field of View, or Save Custom Presets
  •  SNAPstream Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
  •  Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  • True WDR up to 100dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  •  Binning Mode for Strong Low Light Performance
  •  Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
  •  Dual Encoder H.264/MJPEG
  •  PoE and Auxiliary Power: 18–48V DC/24V AC
  •  Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  •  Complete Mounting Options

Programmability

Optics
  • Remote focus / zoom
  • Pixel Binning Mode
Picture-in-PictureSimultaneous delivery of full field-of-view and zoomed images
Programmable Shutter SpeedControls motion blur, 1ms–500ms
Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
MoonLightTM ModeExtended exposure and noise cancellation
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationAuto multi-matrix white balance
Flicker Control5Hz–255Hz adjustable
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes (WDR models)
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)
  • Auto Exposure (AE) and Gain Control (AGC) > 120dB
  • Programmable shutter speed to help control motion blur

Data Transmission

Compression Type
  • H.264 (MPEG-4, Part 10)/Motion JPEG
  • 21 levels of quality
Network ProtocolsHTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100Base-T Ethernet
Multi-Streaming8 non-identical streams
