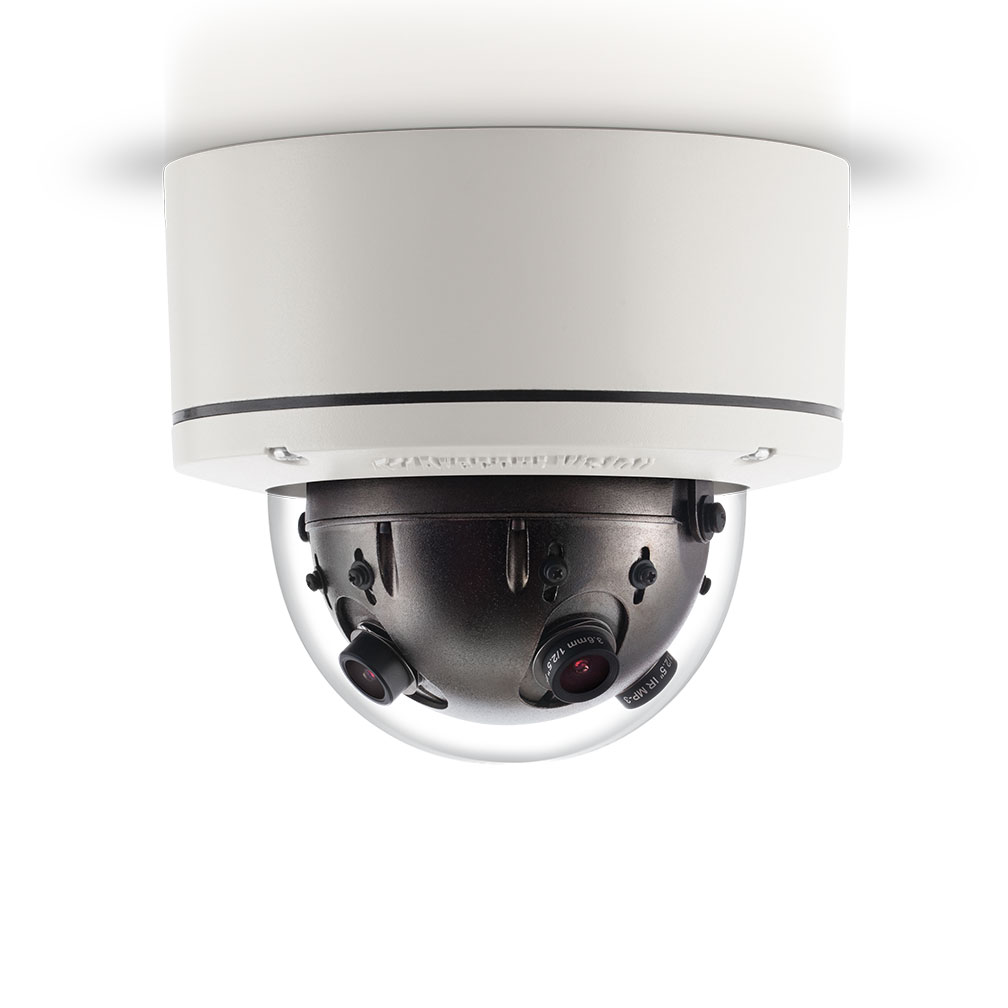

12-Megapixel (MP) H.264 All-in-One 360° Panoramic True Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream(Smart Noise Adaptation and Processing)
TThe SurroundVideo G5 Mini is an H.264 all-in-one total PoE panoramic IP camera solution available in 12 megapixel (MP) or 20MP resolutions and 180° or 360° configurations. Wide Dynamic Range (WDR) is optional on 12MP models, featuring a dynamic range of up to 100dB at full resolution. With a dual encoder (H.264 and MJPEG), an impact-resistant dome, and a size roughly 50% smaller than previous SurroundVideo models, the 360° Panoramic SurroundVideo G5 Mini delivers excellent performance and versatility. Additionally, the SurroundVideo G5 Mini has faster frame rates than ever before. A SurroundVideo camera can replace multiple fixed or PTZ cameras by recording the entire panoramic field of view with the ability to zoom into multiple regions of interest—a return on investment that’s easily measured.
Features:
- 12MP Resolution
- 360˚ Panoramic View
- Four (4) x 2.6mm M12 Lenses
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- True Day/Night
- Installer-Friendly Housing
- Indoor/Outdoor, IP66 Rated
- IK-10 Vandal Resistant
- Small Form Factor
- Power Over Ethernet
Programmability
| Low Light Performance | Pixel Binning Mode |
| Programmable Shutter Speed | Controls motion blur |
| 1ms–500ms | |
| Motion Detection | Real-time, privacy mask, 1024 detection zones per sensor |
| MoonLight Mode | Extended exposure and proprietary noise cancellation |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Auto multi-matrix white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Alignment | +/-5° digital vertical alignment to adjust images (180° models) |
| Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Bandwidth and storage savings by running at 1/4 resolution | |
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Electronic pan, tilt, zoom (PTZ) | |
| Simultaneous delivery of full field-of-view and zoomed images |
Data Transmission
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Network Protocols | HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming | 8 non-identical streams (2 per sensor) |
Compliance
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 |
| Mechanical | IP66 (EN60529) |
| CoO | Made in the USA |
Environmenta
| Protection Ratings | IP66 water/dust protection rating |
| IK-10 impact-resistant polycarbonate dome | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
Electrica
| Alarm Input/Output | General purpose opto-coupled, 1 input / 1 output |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Auxiliary Power | 18–48V DC and 24V AC |
| Power Consumption | 12.1W max DC power |
Mechanical
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Network Protocols | HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming | 8 non-identical streams (2 per sensor) |
