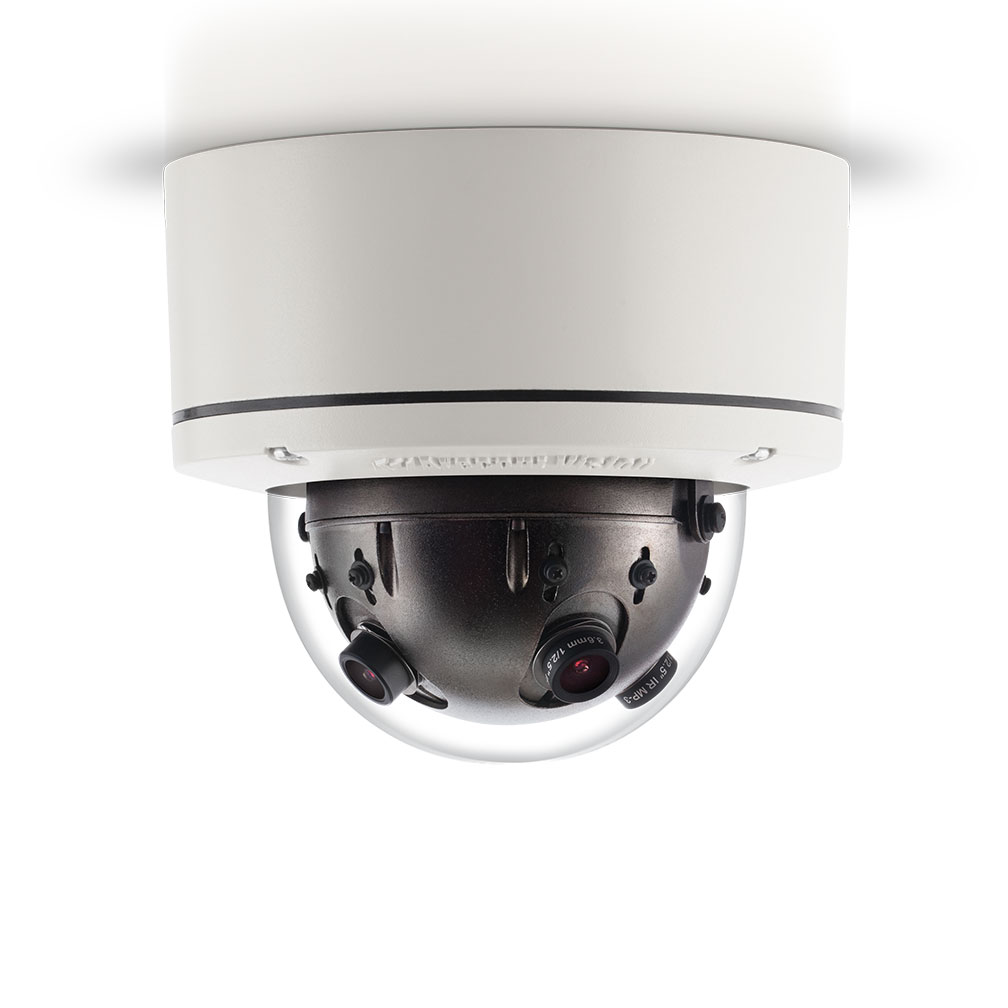

Arecont Vision - AV12566DN - 12 Megapixel WDR & Day/Night H.264/MJPEG 360˚ Gen 5 Mini Camera
Part number:
AV12566DN
Price:

12-Megapixel (MP) H.264 All-in-One 360° Panoramic True Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream (Smart Noise Adaptation and Processing) and Enhanced WDR (Wide Dynamic Range)



The SurroundVideo G5 Mini is an H.264 all-in-one total PoE panoramic IP camera solution available in 12 megapixel (MP) or 20MP resolutions and 180° or 360° configurations. Wide Dynamic Range (WDR) is optional on 12MP models, featuring a dynamic range of up to 100dB at full resolution. With a dual encoder (H.264 and MJPEG), an impact-resistant dome, and a size roughly 50% smaller than previous SurroundVideo models, the 360° Panoramic SurroundVideo G5 Mini delivers excellent performance and versatility. Additionally, the SurroundVideo G5 Mini has faster frame rates than ever before. A SurroundVideo camera can replace multiple fixed or PTZ cameras by recording the entire panoramic field of view with the ability to zoom into multiple regions of interest—a return on investment that’s easily measured.



Features :

  • NDAA Compliant
  • SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
  • True Wide Dynamic Range
  • Power Over Ethernet
  • Small Form Factor
  • Installer-Friendly Housing
  • IK-10 Vandal Resistant
  • Indoor/Outdoor, IP66 Rated
  • True Day/Night
  • Four (4) x 2.6mm M12 Lenses
  • 360˚ Panoramic View
  • 12MP Resolution

Programmability

Low Light PerformancePixel Binning Mode
Programmable Shutter Speed
  • Controls motion blur
  • 1ms–500ms
Motion DetectionReal-time, privacy mask, 1024 detection zones per sensor
MoonLightTM ModeExtended exposure and proprietary noise cancellation
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationAuto multi-matrix white balance
Flicker Control5Hz–255Hz adjustable
Image Alignment+/-5° digital vertical alignment to adjust images (180° models)
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes (WDR models)
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)
  • Simultaneous delivery of full field-of-view and zoomed images
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes (AV12586PM)
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
SDHC Card SlotSupports micro SDHC cards up to 32GB (-S models only)
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type
  • H.264 (MPEG-4, Part 10)/Motion JPEG
  • 21 levels of quality
Network ProtocolsHTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100Base-T Ethernet
Multi-Streaming8 non-identical streams (2 per sensor)




Name
Description
Size
Downloads
File
Data Sheet
0.6mb
File
A&E Specification
0.2mb
File
ConteraIP / MegaIP Feature Guide
0.4mb
File
Product Line Cards
1.4mb
