12-Megapixel (MP) H.264 All-in-One 180° Panoramic Motorized P-iris LensTrue Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream (Smart Noise Adaptation and Processing)

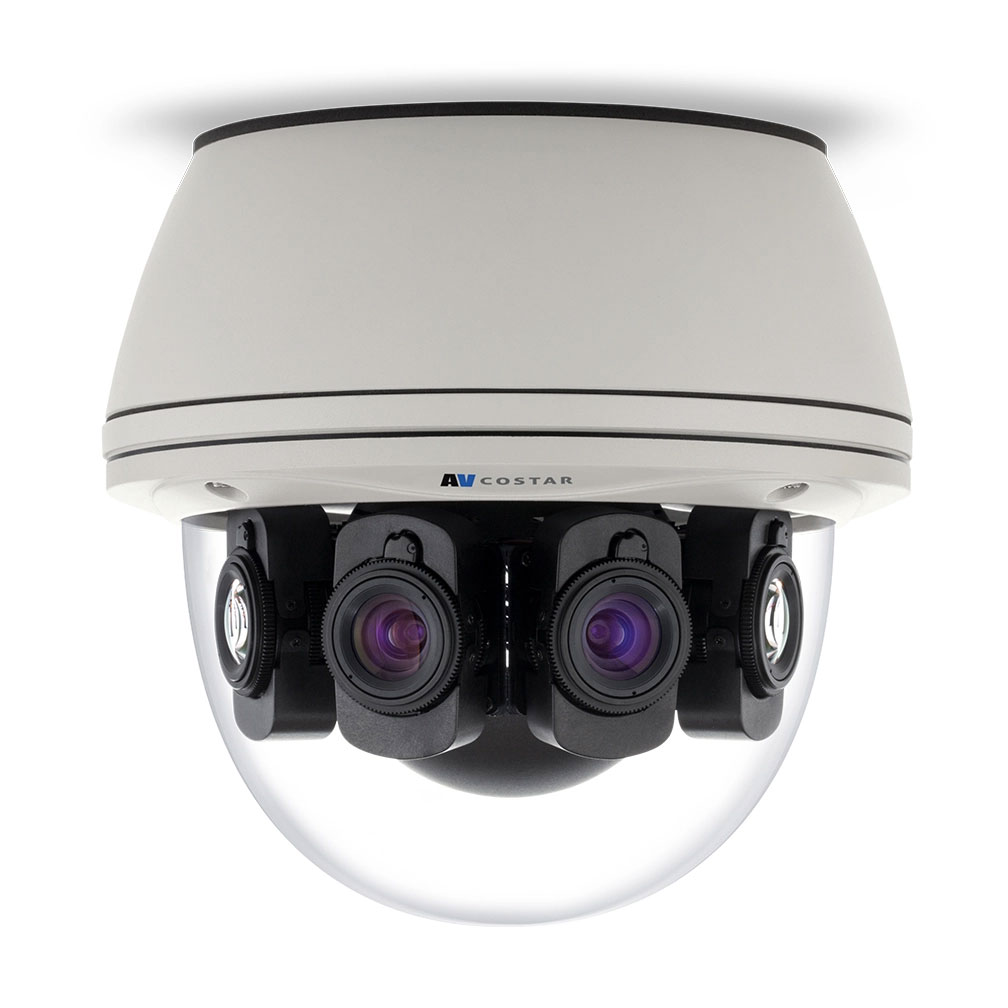

The SurroundVideo G5 multi-sensor, multi-megapixel dome camera pushes the boundaries of next generation technology, providing users with four (4) integrated, Remote Focus P-iris lenses for an incredible 180° panoramic experience in a single indoor/outdoor housing. SurroundVideo G5 cameras provide an all-in-one solution for capturing wide area video surveillance while maximizing the eld-of-view and reducing the total number of cameras required.
The SurroundVideo G5 multi-megapixel camera series delivers 5-, 12-, or 20-megapixel resolutions. For added flexibility, users can view the camera’s four (4) sensors individually or as a smooth transition of all images blended together for a full 180° panoramic view. The camera is factory aligned with a slight image overlap to ensure you never miss a thing. For an optimal image, each sensor can be individually adjusted for the best exposure ratio per sensor (AV12586PM WDR model)
The series combines a day/night mechanical IR cut filter for the highest image quality at any time of day. The SurroundVideo G5 camera features four (4) factory-installed Remote Focus P-iris lenses, ensuring the best possible depth of eld and image clarity for precise performance from each individual sensor. Once mounted, the operator can quickly focus the camera remotely, eliminating the need to adjust the camera on-site. No more hassle individually installing multiple cameras to cover a wide area, manually focusing lenses, or risk missing critical information from a 180° scene.
For challenging low-light applications, the 5MP STELLAR, “Spatio Temporal Low Light Architecture” model offers best-in-class light sensitivity capturing details in extreme low-light. All SurroundVideo G5 models feature SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality. The 12MP SurroundVideo G5 camera (AV12586PM) features Wide Dynamic Range (WDR) to produce clear images in harsh lighting conditions.
SurroundVideo G5 is designed for demanding environments. Subjected and certified to rigorous dust and water tests, the IP66 rating, and its extended operating temperature range make it ideal for outdoor applications. The IK-10 rated, rugged dome housing is perfect for deterring vandals since it can withstand the equivalent of 55 kg (120 lbs) of force. The SurroundVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.
Features :
Programmability
Optics | Remote focus and P-iris control |
Low Light Performance | |
STELLAR | 5MP models |
Pixel Binning Mode | 12MP and 20MP models |
Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
Programmable Shutter Speed | Controls motion blur |
Motion Detection | On-camera real-time, 1024 detection zones (per sensor) |
Privacy Masking | Real-time, 1024 detection zones (per sensor) |
Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
Backlight Compensation | Yes |
Flicker Control | 5Hz–255Hz adjustable |
Sensor Position | +/-5° Digital Vertical Alignment to adjust images |
Image Rotation | 180° image flip |
Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (AV12586PM) |
Efficiency |
|
Sharpness | Selectable enhancement level |
SDHC Card Slot | Supports micro SDHC cards up to 32GB (-S models only) |
Miscellaneous |
|
Data Transmission
Compression Type |
|
Network Protocols | HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
Network Interface | 100Base-T Ethernet |
Multi-Streaming | 8 non-identical streams (2 per sensor) |
