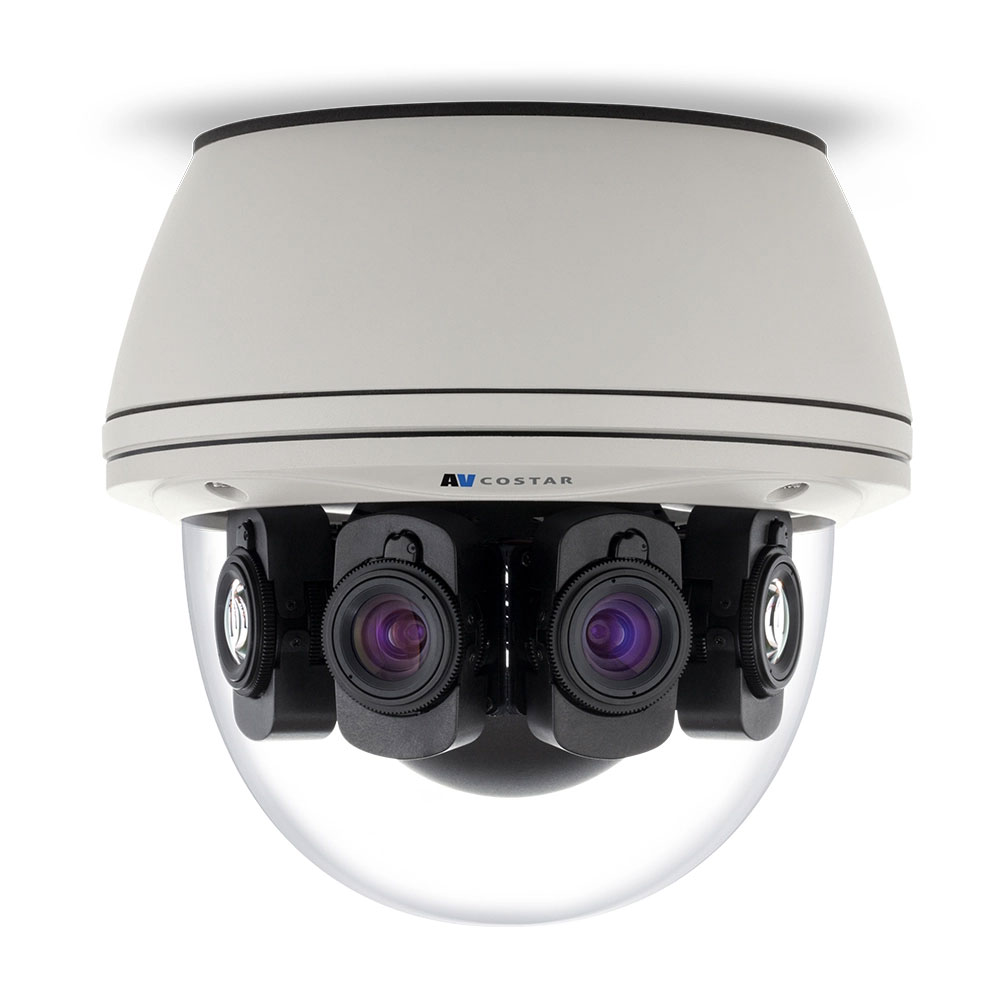

Arecont Vision - AV12586PM - 12 Megapixel WDR & Day/Night H.264/MJPEG 180˚ Gen 5 Camera
Part number:
AV12586PM
Price:

12-Megapixel (MP) H.264 All-in-One 180° Panoramic Motorized P-iris LensTrue Day/Night Indoor/Outdoor Dome IP Camera with SNAPstream (Smart Noise Adaptation and Processing) and Enhanced WDR (Wide Dynamic Range

The SurroundVideo G5 multi-sensor, multi-megapixel dome camera pushes the boundaries of next generation technology, providing users with four (4) integrated, Remote Focus P-iris lenses for an incredible 180° panoramic experience in a single indoor/outdoor housing. SurroundVideo G5 cameras provide an all-in-one solution for capturing wide area video surveillance while maximizing the eld-of-view and reducing the total number of cameras required.



The SurroundVideo G5 multi-megapixel camera series delivers 5-, 12-, or 20-megapixel resolutions. For added flexibility, users can view the camera’s four (4) sensors individually or as a smooth transition of all images blended together for a full 180° panoramic view. The camera is factory aligned with a slight image overlap to ensure you never miss a thing. For an optimal image, each sensor can be individually adjusted for the best exposure ratio per sensor (AV12586PM WDR model)



The series combines a day/night mechanical IR cut filter for the highest image quality at any time of day. The SurroundVideo G5 camera features four (4) factory-installed Remote Focus P-iris lenses, ensuring the best possible depth of eld and image clarity for precise performance from each individual sensor. Once mounted, the operator can quickly focus the camera remotely, eliminating the need to adjust the camera on-site. No more hassle individually installing multiple cameras to cover a wide area, manually focusing lenses, or risk missing critical information from a 180° scene.



For challenging low-light applications, the 5MP STELLAR, "Spatio Temporal Low Light Architecture" model offers best-in-class light sensitivity capturing details in extreme low-light. All SurroundVideo G5 models feature SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality. The 12MP SurroundVideo G5 camera (AV12586PM) features Wide Dynamic Range (WDR) to produce clear images in harsh lighting conditions.



SurroundVideo G5 is designed for demanding environments. Subjected and certified to rigorous dust and water tests, the IP66 rating, and its extended operating temperature range make it ideal for outdoor applications. The IK-10 rated, rugged dome housing is perfect for deterring vandals since it can withstand the equivalent of 55 kg (120 lbs) of force. The SurroundVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.



Features :

  • NDAA Compliant
  • SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
  • 12MP Resolution
  • Four (4) x 5.3mm MP P-iris Lenses
  • 180˚ Panoramic View
  • Remote Focus
  • True Day/Night
  • True Wide Dynamic Range
  • Indoor/Outdoor, IP66 Rated
  • IK-10 Impact Resistant
  • Power Over Ethernet (PoE) - Heater Requires Separate Power of 12V-35V DC/24V AC

Programmability

OpticsRemote focus and P-iris control
Low Light Performance
STELLAR5MP models
Pixel Binning Mode12MP and 20MP models
Picture-in-PictureSimultaneous delivery of full field-of-view and zoomed images
Programmable Shutter SpeedControls motion blur
Motion DetectionOn-camera real-time, 1024 detection zones (per sensor)
Privacy MaskingReal-time, 1024 detection zones (per sensor)
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationYes
Flicker Control5Hz–255Hz adjustable
Sensor Position+/-5° Digital Vertical Alignment to adjust images
Image Rotation180° image flip
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes (AV12586PM)
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
SDHC Card SlotSupports micro SDHC cards up to 32GB (-S models only)
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type
  • H.264 (MPEG-4, Part 10)/Motion JPEG
  • 21 levels of quality
Network ProtocolsHTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100Base-T Ethernet
Multi-Streaming8 non-identical streams (2 per sensor)
