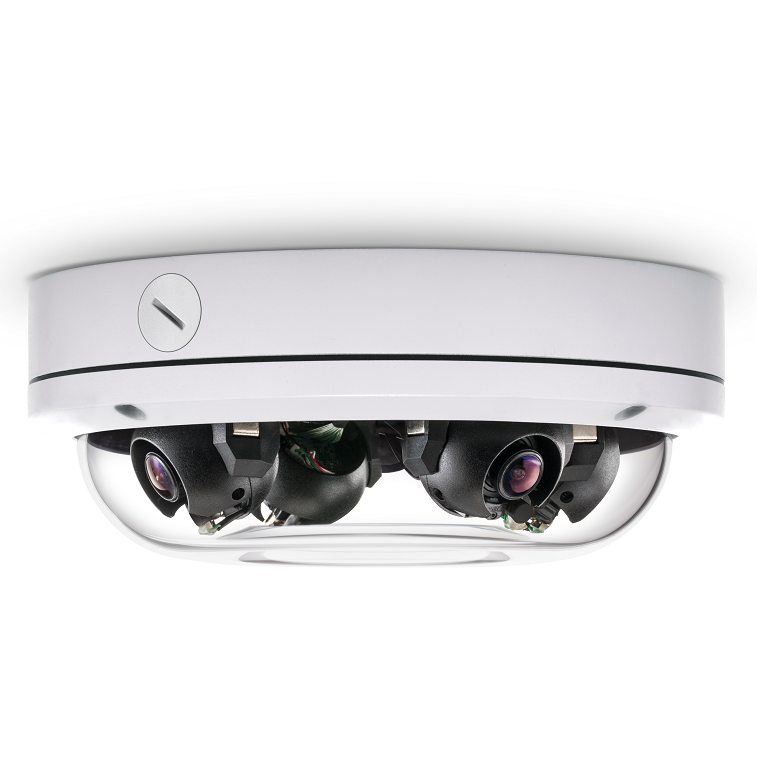

Arecont Vision - AV12976DN-28 - MegaIP SurroundVideo Omni SX 12MP Outdoor 4-Sensor Network Dome Camera with 2.8mm Lenses



Part number:
AV12976DN-28
Price:

SurroundVideo Omni SX, 12 Megapixel, SNAPstream WDR, Remote Focus & Day/Night H.264/MJPEG Omni-Directional Camera SX, 4 x 2048x1536, 4 x 2.8mm MP Lens, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE Powered Fan.

The SurroundVideo Omni SX multi-megapixel camera was built to withstand evolving customer change-requirements. The improved image quality and product reliability of the SurroundVideo Omni SX provides organizations of all sizes with the flexibility to deploy a security system that truly matches their video surveillance needs now; and again if requirements change in the future.

With its ground-breaking flexibility such as the ability to easily move each of the four sensors around the magnetic 70+ placement-point Omni track, the 3-axis gimbals for an increased range of motion when positioning the sensors, and the ability to interchange the remote focus modular lenses for a customized field of view, the SurroundVideo Omni SX provides customers with the confidence in a future-proof investment. The SurroundVideo Omni SX changes when you do.



Features:

  • 12MP Resolution
  • 4 x 8mm Lenses
  • 3-Axis Gimbal
  • Remote Focus
  • SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
  • True Day/Night
  • Surface Mount
  • Power Over Ethernet (PoE)
  • Indoor/Outdoor
  • IP66 Weather Rated
  • IK-10 Impact Resistant

Programmability



Optics

M12 lens and remote focus module



Low Light Performance

Pixel Binning Mode



Picture-in-Picture

Simultaneous delivery of full field-of-view and zoomed images



Programmable

Controls motion blur, 1ms–500ms



Shutter Speed







Motion Detection

Real-time, 1024 detection zones



Privacy Masking

Unlimited



MoonLight™ Mode

Extended exposure and noise cancellation



Flexible Cropping

Resolution windowing down to 1x1 pixel for JPEG and 2x2





pixels for H.264



Backlight Compensation

Auto multi-matrix white balance



Flicker Control

5Hz–255Hz adjustable



Wide Dynamic Range





Auto switch control adjustment between WDR and LDR modes





(WDR models)



Efficiency





SNAPstream™ (Smart Noise Adaptation and Processing)





Bit rate and bandwidth limitation control





Bandwidth and storage savings by running at 1/4 resolution



Sharpness

Selectable enhancement level



Miscellaneous

Programmable resolution, brightness, saturation, gamma, tint





Simultaneous delivery of full field-of-view and zoomed images





Electronic pan, tilt, zoom (PTZ)





Auto Exposure (AE) and Gain Control (AGC) > 120dB





Programmable shutter speed to help control motion blur

Data Transmission

Compression Type

H.264 (MPEG-4, Part 10)/Motion JPEG



21 levels of quality

Network Protocols

HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP

Network Interface

100Base-T Ethernet

Multi-Streaming

8 non-identical streams

Compliance

Industry Standard

ONVIF Profile S conformant

Listings

UL (CB)

FCC Compliance

47 CFR 15 Class A

Environmental

RoHS, REACH, WEEE

Markings

(CE) EN 55022:2010 Class A, EN 55024:2010,



EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008,



EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC



60950-1 (ed. 2) and IEC 60950-22 (ed. 1)

CoO

Made in the USA

Environmental

Operating Temperature

-40°C (-40°F) to +50°C (122°F)

Humidity

0% to 90% (non-condensing)

Storage Temperature

-40°C (-40°F) to +60°C (140°F)



Electrical

Alarm Input/Output

1 input /1 output

Power Over Ethernet

PoE 802.3af, Class 3

Auxiliary Power

18–48V DC, 24V AC

Power Consumption

14W max (auxiliary)

Mechanical



Casing

Die-cast aluminum chassis with polycarbonate dome bubble





IP66 weather proof standard





Impact resistant, IK-10 rated



Color

Arecont Vision® White (Pantone® Cool Grey 1C)



Gimbal

Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis



Dimensions

Unit

Ø 7.7" (196mm) x 3.1" H (78.5mm)



(See Dimensions)







Bubble Only

Ø 6.7" (169.2mm) x 1.3" H (33.4mm)

















Packaged

8" W (203mm) x 8" L (203mm) x 4" H (102mm)











Weight

Unit

2.8lbs (1.27kg)













Packaged

3.4lbs (1.54kg)
