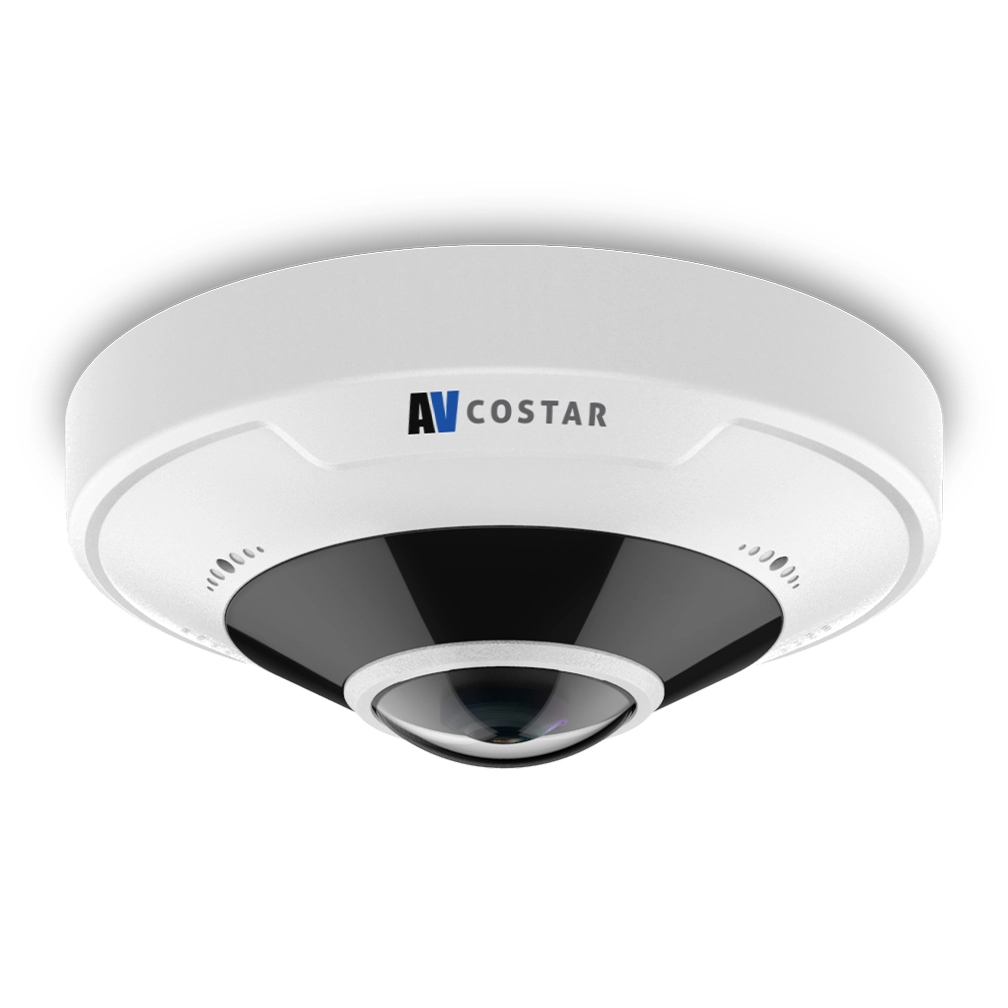

Arecont Vision - AV12CPD-236 - 12MP Contera 360⁰ Fisheye Panoramic Outdoor Dome
Part number:
AV12CPD-236
Price:
- • 12MP Resolution
- • Full 360º Panoramic Image without Blind Spots
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Wide Dynamic Range at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • Integrated Microphone and Speaker
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- • Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
- • On-Screen Display (OSD)
- • Defog Technology
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- • All-in-One H.265/H.264 Total PoE Solution (No External Power Required for Heater and IR LEDs) PoE and Auxiliary Power: 12V DC / 24V AC
- • IR Illumination on All Four Sensors
- • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- • Built-in Dewarping When Used with ConteraVMS
- • Multiple Dewarp Display Modes
- • Electrical Vertical and Horizontal Alignment to Locate Each Sensor Position
- • Easily Adjustable 2-Axis Camera Gimbal with 360° Pan and 90° Tilt
| Camera | |
|---|---|
| Image Sensor | 12MP CMOS Progressive Sensor |
| Optical Format | 1/1.7" |
| Minimum Illumination | Color (Day Mode): 0.05 Lux |
| B/W (Night Mode): 0.005 Lux, IR sensitive | |
| Full FOV Resolution | 4000 H x 3000 V (2720 H x 2720 V effective) |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 70.7dB |
| Frame Rates* Single Stream | Up to 15fps (12MP) / 25fps (6MP) |
| Fisheye Mode | 12MP Mode: Up to 15fps (12MP) + 15fps (3MP) + 15fps (720x576) |
| 9MP Mode: Up to 15fps (9MP) + 15fps (4MP) + 15fps (720x576) | |
| 6MP Mode: Up to 25fps (6MP) + 25fps (4MP) + 25fps (720x576) | |
| 4PTZ Mode | 12MP Mode: Up to 15fps (3MP) + 15fps (1080P) + 15fps (1080P) + 15fps (1080P) + 15fps (1080P) |
| 9MP Mode: Up to 15fps (4MP) + 15fps (1080P) + 15fps (1080P) + 15fps (1080P) + 15fps (1080P) | |
| 6MP Mode: Up to 25fps (4MP) + 15fps (1080P) + 15fps (1080P) + 15fps (1080P) + 15fps (1080P) | |
| Panorama Mode | 12MP Mode: Up to 15fps (12MP) + 15fps (3MP) |
| 9MP Mode: Up to 15fps (6MP) + 15fps (4MP) | |
| 6MP Mode: Up to 25fps (6MP) + 25fps (4MP) | |
| Lens | Fisheye Lens: 1.8mm, F2.4, H-FOV 176.8° |
| Programmability | |
| Optics | Fisheye Lens |
| Low-Light Performance | NightView™ technology |
| IR Illuminators | Programmable |
| Shutter Speed | Auto/Manual, shutter time: 1 ~ 1/100000s |
| Motion Detection | Up to 4 Areas |
| Privacy Masking | Up to 8 Areas |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control* | 50/60Hz |
| Image Rotation | 180°/ Flip Vertical/ Flip Horizontal |
| Scaling | 4000x3000, 3000x3000, 3000x2000(Panorama), 2560x2560, 2000x2000, 3000x1500(Panorama),2000x1500, 720x576, 320x288 |
| Wide Dynamic Range | 70.7dB |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate control |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, red/blue offset Supports 10 display modes |
| Password | 32-digit character password |
| On-Screen Display (OSD) | Custom/ Date/ Time/ Serial Port/ ScrollOSD/ Picture Overlay/ Network Port |
| Basic Video Analytics | Audio Detection, Motion Detection, Camera Tamper |
| Display/Dewarp Modes | Fisheye, 4PTZ, Panorama |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 128~16384 Kbps |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Ethernet | 10/100Base-TX Auto-adaptive Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 31 clients |
| Event Management | |
| Event Trigger | Motion Detection, Tampering Detection, Alarm In, Audio Detection |
| Notifications | Alarm Output, Recording, FTP, Trigger E-mail |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, T conformant |
| Listings | UL (CB) UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3 |
| Environmental | |
| Operating Temperature | -35°C (-31°F) to +60°C (140°F) |
| Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 2x input (wet contact)/1x output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 0 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12V DC |
| Power Consumption | 9.6W PoE max |
| Serial Interface | 1 channel RS485 |
| Analog Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| IR Illuminator | |
| LEDs | 3pcs, Smart IR |
| Projection Distance | 33ft (10m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line In / Line Output / Built-in Mic / Built-in Speaker |
| Mechanical | |
| Casing | Die-cast aluminum chassis with 1.7" polycarbonate dome bubble |
| Mounting Options | Ceiling, Wall, Desktop |
| Dimensions | Unit: Ø 5.87" (149mm) x 2.17" H (55mm) |
| Packaged: 6.9" H (170mm) x 6.9" W (170mm) x 4.1" L (105mm) | |
| Weight | Unit: 1.1lbs (0.5kg) |
| Packaged: 3.6 lbs (1.65kg) | |
| On Board Storage | MicroSDXC slot up to 256GB (card not included) |
| Body Color | White |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
A&E Specification
0.1mb
File
Product Line Cards
0.9mb
The ConteraIP Fisheye megapixel camera features 12-megapixel resolution for optimum performance. It can replace multiple fixed or PTZ cameras, recording a full 360° panoramic field of view without blind spots and offering the ability to zoom into multiple regions of interest, providing a measurable return on investment. It combines a day/night mechanical IR cut filter with an integrated lens to deliver excellent image quality. This camera is ideal for applications with challenging lighting conditions, regardless of time of day. This series combines a day/night mechanical IR cut filter to deliver the highest image quality at any time of day. NightView™ offers strong low-light sensitivity to capture details in extremely poorly lit scenes and is further enhanced by integrated LED illumination to provide clear colour images in low light.
