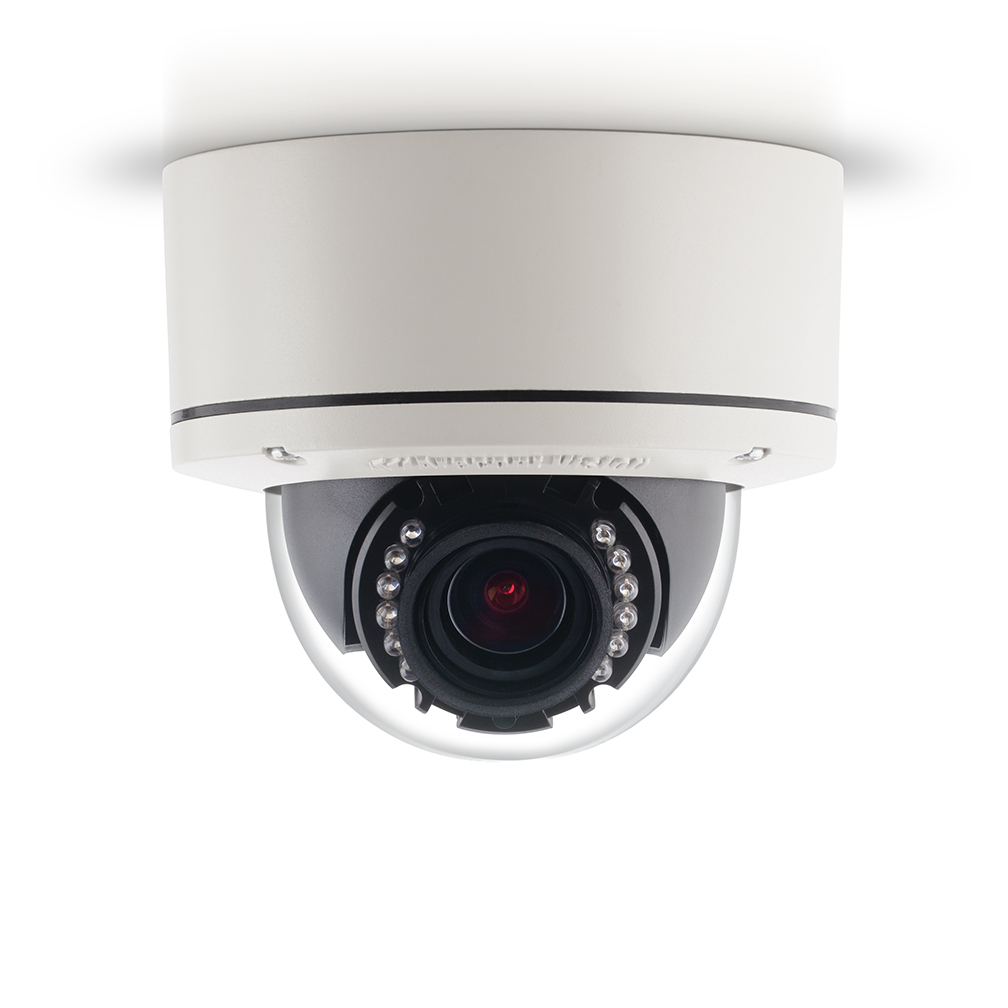

Arecont Vision - AV12ZMD-401 - 12 Megapixel (MP) H.264 Motorized P-Iris Lens True Day/Night Indoor/Outdoor Dome IP Camera
Part number:
AV12ZMD-401
Price:

The 12MP/4K/1080p MegaDome® UltraHD “tri-mode” network camera is part of the new generation of Arecont Vision’s MegaDome cameras. This fully compliant implementation of H.264 (MPEG-4, Part 10) provides full 4000 x 3000 megapixel resolution at video frame rates of 20 frames per second (fps) at 12MP, 30fps while in 4K (8.3MP), and 60fps while in 1080p (2.1MP). The MegaDome UltraHD camera series provides an all-in-one solution with integrated 12MP day/night camera, remote focus, remote zoom, P-Iris, 4.4–10mm lens in an installer-friendly IP66 water/dust ingress rated housing, and vandal resistant, IK-10 rated dome enclosure.

Features include SNAPstream™ (Smart Noise Adaptation and Processing) to reduce bandwidth without impacting image quality, NightView™ and binning mode for strong low light performance, non-integer scaling, privacy masking, extended motion detection, flexible cropping, forensic zooming, multicasting and Power over Ethernet (PoE - IEEE 802.3af). Built with Arecont Vision massively-parallel MegaVideo® processing technology, the camera series offers more than 27-times the resolution of standard resolution IP cameras. It offers the ability to output full real-time frame rates and deliver high-quality megapixel imaging for both indoor and outdoor applications.



Features:

  •  12 Megapixel at 20fps
  •  12MP/4K/1080p Tri-Mode with 4K at 30fps and 1080p at 60fps
  •  SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
  •  Remote Focus/Zoom P-Iris Lens
  •  P-Iris Control to Get Best Depth of Field and Image Clarity
  •  WDR: See Clearly in Shaded and Bright Light Conditions Simultaneously
  •  NightView™ Technology for Strong Low Light Performance
  • Binning Mode for Strong Low Light Performance
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  •  Dual Encoder H.264/MJPEG
  •  Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling
  •  Network Protocols Include SNMP, SNTP, HTTPS, 802.1x, IPv4, DHCP, and More
  •  IR LEDs with Adjustable Beam Angle and LED Intensity
  •  Total PoE Solution (No External Power Required for IR LEDs) with Auxiliary Power: 12–24V DC
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  •  Easily Adjustable 3-Axis Gimbal

Model





AV12ZMD-401



Image Sensor (CMOS)





12MP













Optical Format





1/1.7"













Pixel Pitch





1.85μm













Minimum Illumination

Color (Day Mode)



0.03 Lux















Color Binning (Day Mode)



0.015 Lux















B/W (Night Mode)



0.003 Lux, IR sensitive













Full FOV Resolution





3968 H x 2992 V













1/4 Resolution (Half Resolution)



1984 H x 1496 V



Scaling (See Scaling Resolution Chart Below)



Yes













Dynamic Range





70.7dB (WDR)













Maximum SNR





40.1dB













Frame Rates*

Maximum Resolution



20fps (3968 x 2992)















4K Resolution (8.3MP)



30fps (3840 x 2160)















Half Resolution



20fps (1984 x 1496)





1080p Resolution (2.1MP or 4K Binning Mode)



60fps (1920 x 1080)











Lens



4.4–10mm Integrated, 1/1.7", F/1.2, H-FOV = 99°–45° (H-FOV = 96°–43° at 4K or 1080p Resolution)



Data Transmission

Compression Type

H.264 MPEG-4, Part 10 ISO/IEC 14496-10 AVC



21 levels of quality

Network Protocols

SNMP, SNTP, HTTP1.0, HTTP1.1, HTTPS, IPv4, 802.1x, RTSP,



RTP/TCP, RTP/UDP, TFTP, DHCP

Network Interface

100/1000 Base-T Ethernet

Multi-Streaming

4 non-identical streams

Compliance



Listings

UL CB Scheme: IEC 60950-1(Ed.2), IEC 60950-1(Ed.2); Am.1,



IEC 60950-1(Ed.2); Am.2, IEC 60950-22(Ed.1)







FCC Compliance

Title 47, Part 15 (47 CFR 15) Subpart B Class A



Environmental

REACH 1907/2006/EC, WEEE 2012/19/EU



Markings

CE: 2014/30/EU (EMC Directive), 2014/35/EU (Low Voltage





Directive), 2011/65/EU (RoHS Directive)





EN 55022:2010 Class A, EN 55024:2010,





EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008





EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013



Networking Standard

IEEE 802.3af-2003 PoE Standard, Class 3



Mechanical

IK-10 (EN62262), IP66 (EN60529)



CoO

Made in the USA
