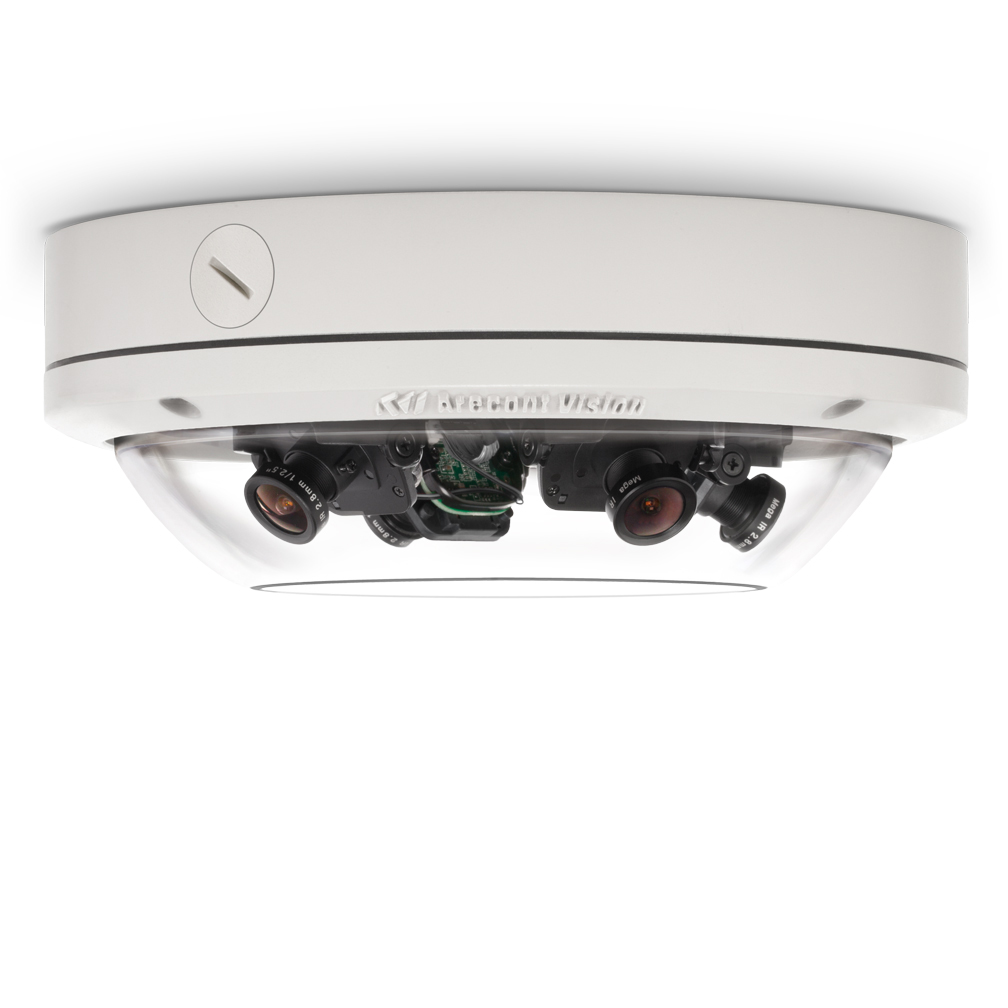

Arecont Vision - AV20175DN-08 - SurroundVideo Series 20MP Outdoor Omni-Directional Dome Camera with 4 Sensors

Delivering revolutionary flexibility, Arecont Vision SurroundVideo® Omni multi-sensor multi-megapixel cameras provide ample resolution to zoom-in for details in live and recorded video. Arecont Vision integrates up to four imagers, each with a choice of IR corrected lens, into an IP66 rated / IK-10 impact resistant dome housing. A unique track design allows up to four individual sensor gimbals to be independently placed in nearly any configuration, including at the intersection of hallways or in a 270-degree view at the corner of a building. SurroundVideo Omni cameras are available in total resolutions of 12-megapixels (MP) or 20MP, all with fast frame rates. 2.1mm, 2.8mm, 4mm, 6mm, 8mm, 12mm and 16mm lens options are available. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Wide Dynamic Range (WDR) up to 100dB at full resolution is available in select 12MP models.

  • 12MP WDR and 20MP Configurations
  • Multiple Lens Options in a Single Camera Housing from 2.8mm up to 16mm
  • Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
  • Ultra Discrete, Low-Profile Housing
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • Complete Mounting Options
  • Binning Mode for Strong Low Light Performance
  • Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
  • PoE and Auxiliary Power: 12–48V DC/24V AC
  • Bit Rate Control and Multi-Streaming
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  • Dual Encoder H.264/MJPEG
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control and Multi-Streaming
  • Fast Frame Rates
Part number:
AV20175DN-08
Price:

Features :



  • NDAA Compliant
  • Made in the USA
  • Reduced Overall System Cost
  • Fast Frame Rates
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control and Multi-Streaming
  • Dual Encoder H.264/MJPEG
  • Bit Rate Control and Multi-Streaming
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  • PoE and Auxiliary Power: 12–48V DC/24V AC
  • Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
  • Binning Mode for Strong Low Light Performance
  • Complete Mounting Options
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • Ultra Discrete, Low-Profile Housing
  • Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
  • Multiple Lens Options in a Single Camera Housing from 2.8mm up to 16mm
  • 12MP WDR and 20MP Configurations
Optics M12 lens
Low Light Performance Pixel Binning Mode
Picture-in-Picture Simultaneous delivery of full field-of-view and zoomed images
Programmable Shutter Speed Controls motion blur, 1ms–500ms
Motion Detection Real-time, 1024 detection zones
Privacy Masking Unlimited
MoonLight™ Mode Extended exposure and noise cancellation
Flexible Cropping Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight Compensation Auto multi-matrix white balance
Flicker Control 50/60Hz selectable
Wide Dynamic Range Auto switch control adjustment between WDR and LDR modes (WDR models)
Noise Reduction Low light noise filter control
Efficiency Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution
Sharpness Selectable enhancement level
Miscellaneous Programmable resolution, brightness, saturation, gamma, tint
Simultaneous delivery of full field-of-view and zoomed images
Electronic pan, tilt, zoom (PTZ)
Auto Exposure (AE) and Gain Control (AGC) > 120dB
Programmable shutter speed to help control motion blur
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
File
Brochure
2mb
File
A&E Specification
0.1mb
File
ConteraIP / MegaIP Feature Guide
0.4mb
File
MPM Lens Data Sheet
1.5mb
