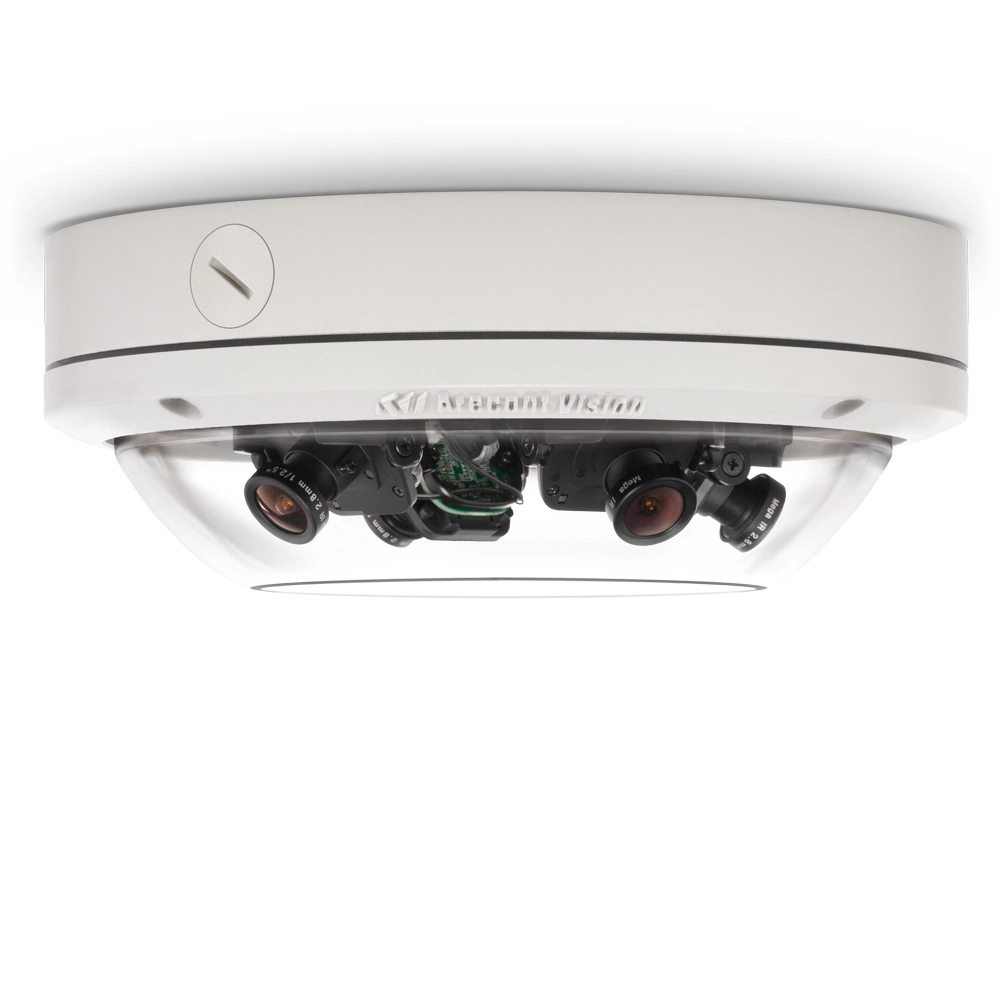

Arecont Vision - AV20175DN-NL - SurroundVideo Omni 20MP H.264 Omni-Directional Multi-Sensor Day/Night Indoor/Outdoor Dome IP Camera (No Lens)



Part number:
AV20175DN-NL
Price:

Delivering revolutionary flexibility, Arecont Vision SurroundVideo® Omni multi-sensor multi-megapixel cameras provide ample resolution to zoom-in for details in live and recorded video. Arecont Vision integrates up to four imagers, each with a choice of IR corrected lens, into an IP66 rated / IK-10 impact resistant dome housing. A unique track design allows up to four individual sensor gimbals to be independently placed in nearly any configuration, including at the intersection of hallways or in a 270-degree view at the corner of a building. SurroundVideo Omni cameras are available in total resolutions of 12-megapixels (MP) or 20MP, all with fast frame rates. 2.1mm, 2.8mm, 4mm, 6mm, 8mm, 12mm and 16mm lens options are available. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Wide Dynamic Range (WDR) up to 100dB at full resolution is available in select 12MP models.



Features:

  • 12MP and 20MP Configurations
  • Multiple Lens Options in a Single Camera Housing from 2.8mm up to 16mm
  • Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
  • Ultra Discrete, Low-Profile Housing
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • Complete Mounting Options
  • Binning Mode for Strong Low Light Performance
  • Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
  • PoE and Auxiliary Power: 12–48V DC/24V AC
  • Bit Rate Control and Multi-Streaming
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  • Dual Encoder H.264/MJPEG
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control and Multi-Streaming
  • Fast Frame Rates



Programmability



Optics

M12 lens



Low Light Performance

Pixel Binning Mode



Picture-in-Picture

Simultaneous delivery of full field-of-view and zoomed images



Programmable

Controls motion blur, 1ms–500ms



Shutter Speed







Motion Detection

Real-time, 1024 detection zones



Privacy Masking

Unlimited



MoonLight™ Mode

Extended exposure and noise cancellation



Flexible Cropping

Resolution windowing down to 1x1 pixel for JPEG and 2x2





pixels for H.264



Backlight Compensation

Auto multi-matrix white balance



Flicker Control

50/60Hz selectable



Wide Dynamic Range





Auto switch control adjustment between WDR and LDR modes





(WDR models)



Noise Reduction





Low light noise filter control



Efficiency

Bit rate and bandwidth limitation control





Bandwidth and storage savings by running at 1/4 resolution



Sharpness

Selectable enhancement level



Miscellaneous

Programmable resolution, brightness, saturation, gamma, tint





Simultaneous delivery of full field-of-view and zoomed images





Electronic pan, tilt, zoom (PTZ)





Auto Exposure (AE) and Gain Control (AGC) > 120dB





Programmable shutter speed to help control motion blur



Mechanical



Casing

Die-cast aluminum chassis with polycarbonate dome bubble





IP66 weather proof standard





Impact resistant, IK-10 rated



Gimbal

Easily adjustable, 2-axis w/360° pan and 90° tilt



Dimensions

Unit

Ø 7.7" (196mm) x 3.1" H (78.5mm)



(See Dimensions)







Bubble Only

Ø 6.7" (169.2mm) x 1.3" H (33.4mm)

















Packaged

8" W (203mm) x 8" L (203mm) x 4" H (102mm)











Weight

Unit

2.8lbs (1.27kg)













Packaged

3.4lbs (1.54kg)



Data Transmission

Compression Type

H.264 (MPEG-4, Part 10)/Motion JPEG



21 levels of quality

Network Protocols

HTTP, IPv4, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP

Network Interface

100Base-T Ethernet

Multi-Streaming

8 non-identical streams

Compliance

Industry Standard

ONVIF Profile S conformant

Listings

UL (CB)

FCC Compliance

47 CFR 15 Class A

Environmental

RoHS, REACH, WEEE

Markings

(CE) EN 55022:2010 Class A, EN 55024:2010,



EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008,



EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC



60950-1 (ed. 2) and IEC 60950-22 (ed. 1)

CoO

Made in the USA

Environmental

Operating Temperature

-40°C (-40°F) to +50°C (122°F)

Humidity

0% to 90% (non-condensing)

Storage Temperature

-40°C (-40°F) to +60°C (140°F)

Electrical

Alarm Input/Output

1 input /1 output

Power Over Ethernet

PoE 802.3af, Class 3

Auxiliary Power

12–48V DC, 24V AC

Power Consumption

14W max (auxiliary)
