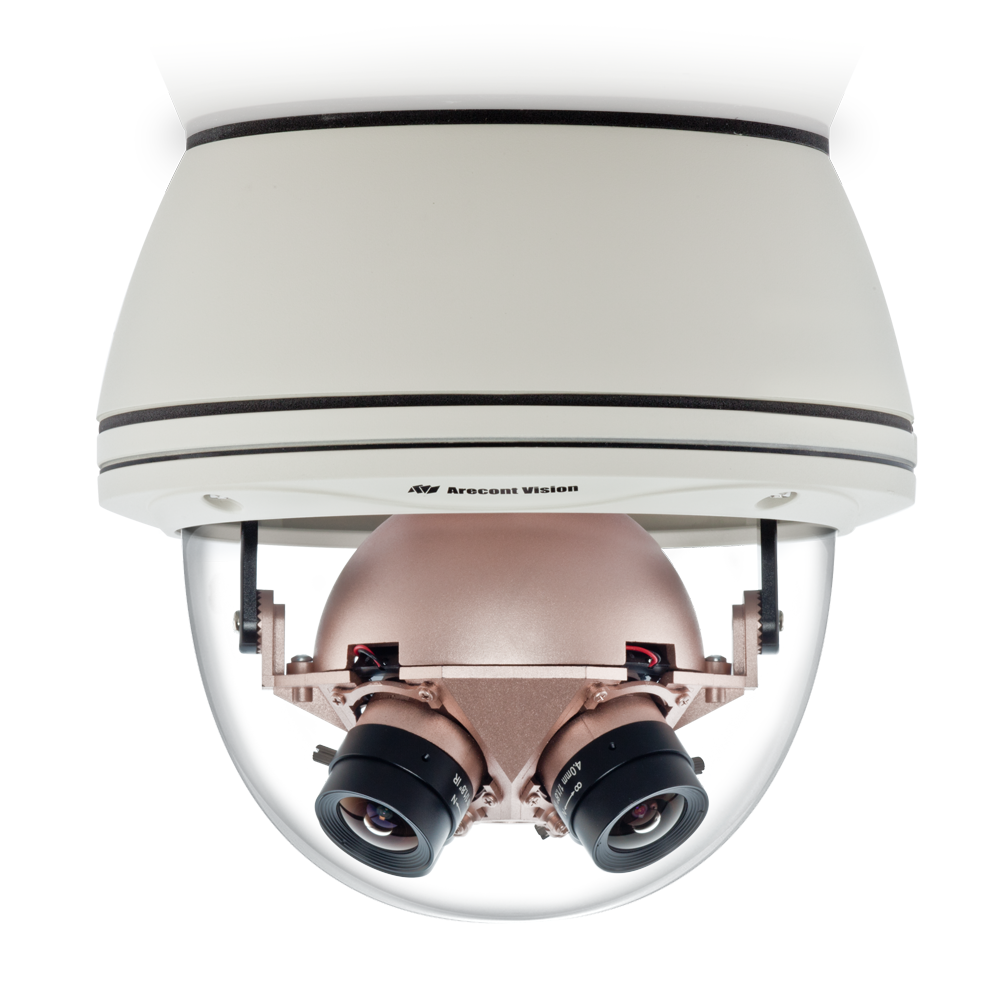

20 Megapixel, 3.5fps, Day/Night H.264/MJPEG, 360˚ Panoramic IP Camera
Features:
- Industry's First 20MP Panoramic Megapixel Camera
- Dual Encoder H.264/MJPEG
- Indoor/Outdoor IP66, Vandal Resistant and IK-10 Rated Dome
- Reduced Overall System Cost
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
- +/- 10° Mechanical Tilt Adjustment to Locate Each Sensor Angle
- Bit Rate Control, Privacy Mask and Multi-Streaming
- Forensic Zooming
- PoE and Auxiliary Power: 12–48V DC/24V AC
- Complete Mounting Options
| Image Sensor (CMOS) | 20MP = 5MP x 4 |
| Optical Format | 1/2.5" |
| Pixel Pitch | 2.2μm |
| Minimum Illumination | 0.15 Lux |
| Full FOV Resolution | 2560 H x 1920 V |
| 1/4 Resolution | 5120 H x 960 V |
| Dynamic Range | 70.1dB |
| Frame Rates | 3.5fps (10240x1920) 4.2fps (10240x1600) |
| Lens | CS, F1.8, 3.5mm, H-FOV = 96° |
