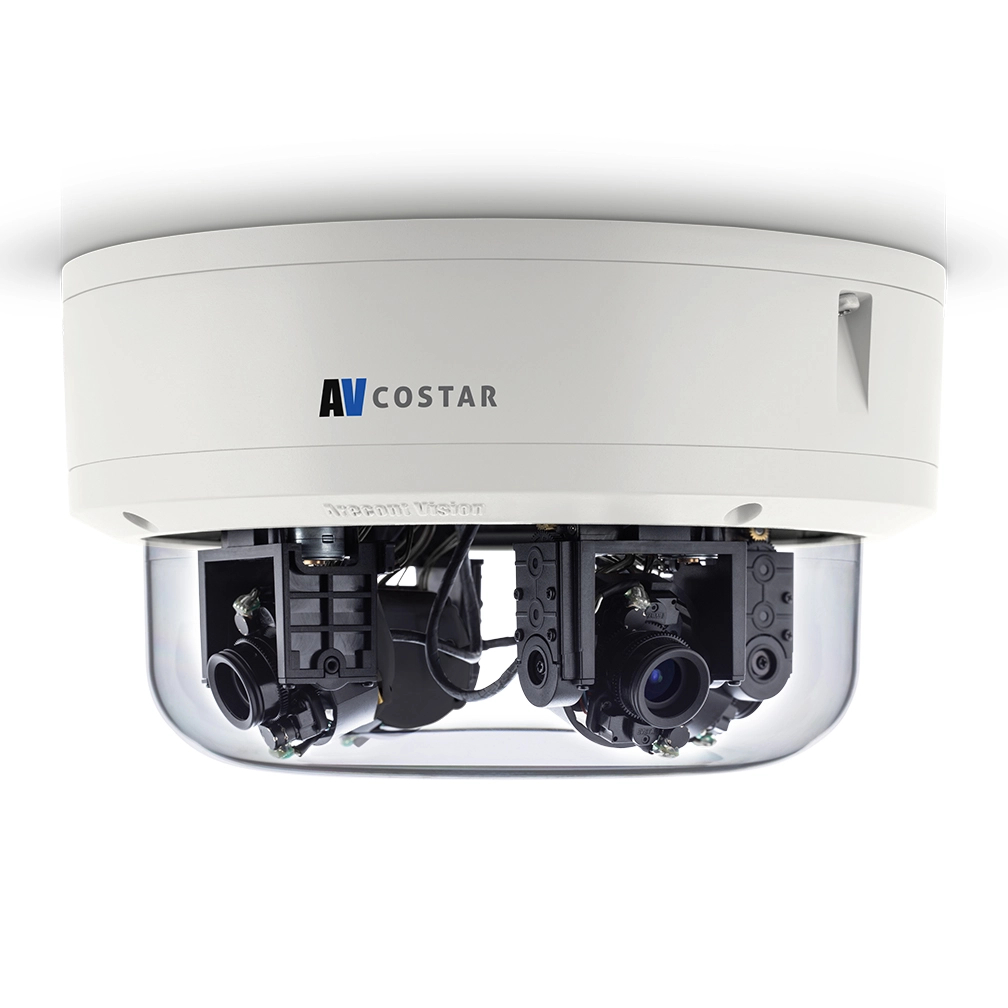

Arecont Vision - AV20476RS - 20MP Zoom Pan Tilt & Day/Night Contera Omni Directional Remote Setup Outdoor Dome

Name: Arecont Vision - AV20476RS - 20MP Zoom Pan Tilt & Day/Night Contera Omni Directional Remote Setup Outdoor Dome
Brand: Arecont Vision
SKU: AV20476RS

Part number:

AV20476RS

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 20MP Resolution
• No Touch Setup: 4 Individual Camera Gimbals Each with a Varifocal Motorized Lens That Can be Remotely Setup in Any Position Around a 360° Track
• Preset Positions to Create a 360°, 270°, or 180° Field of View, or Save Custom Presets
• SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
• NightView for Strong Low Light Performance
• Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
• Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
• On-Screen Display (OSD)
• True Day/Night Functionality with Mechanical IR Cut Filter
• Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
• Triple Encoder: H.265/H.264/MJPEG
• Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
• All-in-One H.265/H.264 Total PoE+ Solution; PoE+ and Auxiliary Power: 12V-48V DC/24V AC
• Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
• Complete Mounting Options

Camera
Image Sensor (CMOS)	20MP (5MP x 4) CMOS Progressive Sensor
Optical Format	1/2.8"
Pixel Pitch	2.0μm
Minimum Illumination	Color (Day Mode): 0.10 Lux
Minimum Illumination	B/W (Night Mode): 0.010 Lux
Full FOV Resolution	Total: 10368 H x 1944 V
Full FOV Resolution	Per Sensor: 2592 H x 1944 V
Dynamic Range	Up to 100dB
Frame Rates at Max Resolution	15fps (20MP)
Multi-Stream	Up to 15fps (20MP) + 5fps (20MP)
	Up to 15fps (20MP) + 5fps (20MP) + 15fps (4.9MP)
	Up to 15fps (12MP) + 15fps (12MP) + 15fps (1.2MP)
Lens (x4)	3.3–6.6mm, F1.7, H-FOV = 50°–97°
Programmability
Optics	Remote focus / zoom
Low-Light Performance	NightView™ technology
Shutter Speed	Auto/manual 0.1ms ~ 500ms
Motion Detection	Real-time, 1024 detection zones
Privacy Masking	Unlimited
Backlight Compensation	Auto
White Balance Mode	Auto/manual
Gain Control	Auto
Flicker Control	5Hz–255Hz adjustable
Scaling (Per Sensor)	8MP: 1920x1080, 1280x960, 1280x720, 960x540, 800x600, 640x480, 640x360
Scaling (Per Sensor)	20MP: 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480
Wide Dynamic Range	Adjustment between WDR and LDR modes
Efficiency	SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control
Miscellaneous	Programmable brightness, contrast, sharpness, saturation, hue Electronic pan, tilt, zoom (PTZ)
Password	16-digit ASCII character password
On-Screen Display (OSD)	Time/date/camera name/custom text
Data Transmission
Compression Type	H.265/H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality
Bit Rate Control	64K–8000K
Smart Codec	Smart GOP/Smart ROI
Network Protocols	SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure
Network Interface	10/100/1000Mbps Ethernet, RJ45
Max Camera Bandwidth	40Mbps (10Mbps per sensor)
Multi-Streaming	2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor)
Users	Live Viewing/Administrator for up to 10 clients
Event Management
Event Trigger	Motion detection, tampering detection, alarm in
Notifications	Send/record message via e-mail/FTP/NAS, record JPG/mp4
Compliance
Industry Standard	ONVIF Profile S, G, Q, T conformant
FCC Compliance	47 CFR 15 Class A
Environmental	RoHS, REACH, WEEE
Markings	CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950
Mechanical	IK-10 (EN62262), IP66 (EN60529)
Environmental
Operating Temperature	-40°C (-40°F) to +50°C (122°F)
Humidity	0% to 90% (non-condensing)
Storage Temperature	-40°C (-40°F) to +60°C (140°F)
Electrical
Alarm Input/Output	1 input (wet contact)/1 output (wet contact)
Power Over Ethernet	IEEE 802.3at (PoE+)
Auxiliary Power	12-48V DC, 24V AC
Power Consumption	23W max
Audio Electrical
Streaming	Two-way
Compression	G.711 PCM 8 kHz
Input/Output	Line in / Line output
Mechanical
Casing	Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated
Gimbal	Remotely adjustable, 3-axis w/360° pan, 135° tilt
Dimensions	Unit: Ø 8.8" (223.4mm) x 4.9" H (125.4mm)
	Bubble Only: Ø 7.2" (183.3mm) x 2.3" H (59.3mm)
	Packaged: 11.1" W (281mm) x 11.1" L (281mm) x 7.4" H (188mm)
Weight	Unit: 5.2lbs (2.36kg)
Weight	Packaged: 5.9lbs (2.68kg)
On Board Storage	MicroSDXC slot up to 256GB (card not included)
Body Color	Arecont Vision® White (Pantone® Cool Gray 1C)

Name

Description

Size

Downloads

File

Datasheet

0.6mb

The ConteraIP Omni LX RS is available with 8- or 20-megapixel resolutions. Thanks to its four customisable remote sensor gimbals, the number of cameras required for a project can be dramatically reduced with a single ConteraIP® Omni LX RS. Installation is quick and straightforward. Simply install the hinged mounting plate, connect the PoE+ (Power over Ethernet) IP cable and then configure the camera remotely. Choose a preset for 180°, 270° or 360° views, or use the intuitive interface to remotely pan, tilt, zoom and focus each sensor. Two custom presets created by the user can be saved.
