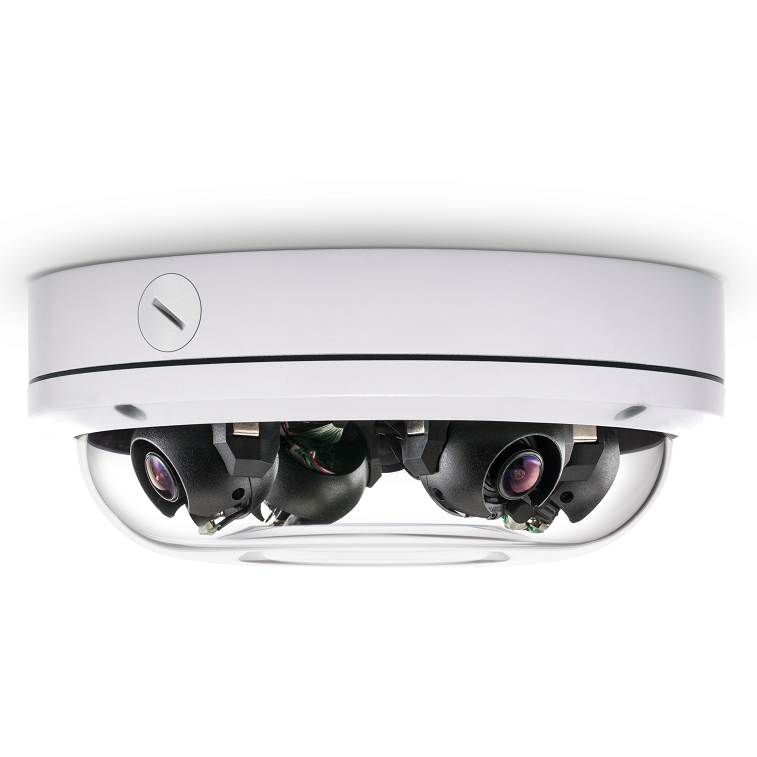

SurroundVideo Omni SX, 20 Megapixel, SNAPstream, Remote Focus & Day/Night H.264/MJPEG Omni-Directional Camera SX, 4 x 2560x1920, 4 x 2.8mm MP Lens, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE Powered Fan.
The SurroundVideo Omni SX multi-megapixel camera was built to withstand evolving customer change-requirements. The improved image quality and product reliability of the SurroundVideo Omni SX provides organizations of all sizes with the flexibility to deploy a security system that truly matches their video surveillance needs now; and again if requirements change in the future.
With its ground-breaking flexibility such as the ability to easily move each of the four sensors around the magnetic 70+ placement-point Omni track, the 3-axis gimbals for an increased range of motion when positioning the sensors, and the ability to interchange the remote focus modular lenses for a customized field of view, the SurroundVideo Omni SX provides customers with the confidence in a future-proof investment. The SurroundVideo Omni SX changes when you do.
Features:
- 20MP Resolution
- 4 x 8mm Lenses
- 3-Axis Gimbal
- Remote Focus
- SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
- True Day/Night
- Surface Mount
- Power Over Ethernet (PoE)
- Indoor/Outdoor
- IP66 Weather Rated
- IK-10 Impact Resistant
Programmability
|
Optics |
M12 lens and remote focus module |
|
|
Low Light Performance |
Pixel Binning Mode |
|
|
Picture-in-Picture |
Simultaneous delivery of full field-of-view and zoomed images |
|
|
Programmable |
Controls motion blur, 1ms–500ms |
|
|
Shutter Speed |
||
|
|
||
|
Motion Detection |
Real-time, 1024 detection zones |
|
|
Privacy Masking |
Unlimited |
|
|
MoonLight™ Mode |
Extended exposure and noise cancellation |
|
|
Flexible Cropping |
Resolution windowing down to 1x1 pixel for JPEG and 2x2 |
|
|
|
pixels for H.264 |
|
|
Backlight Compensation |
Auto multi-matrix white balance |
|
|
Flicker Control |
5Hz–255Hz adjustable |
|
|
Wide Dynamic Range |
|
|
|
Auto switch control adjustment between WDR and LDR modes |
||
|
|
(WDR models) |
|
|
Efficiency |
|
|
|
SNAPstream™ (Smart Noise Adaptation and Processing) |
||
|
|
Bit rate and bandwidth limitation control |
|
|
|
Bandwidth and storage savings by running at 1/4 resolution |
|
|
Sharpness |
Selectable enhancement level |
|
|
Miscellaneous |
Programmable resolution, brightness, saturation, gamma, tint |
|
|
|
Simultaneous delivery of full field-of-view and zoomed images |
|
|
|
Electronic pan, tilt, zoom (PTZ) |
|
|
|
Auto Exposure (AE) and Gain Control (AGC) > 120dB |
|
|
|
Programmable shutter speed to help control motion blur |
Data Transmission
|
Compression Type |
H.264 (MPEG-4, Part 10)/Motion JPEG |
|
|
21 levels of quality |
|
Network Protocols |
HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
|
Network Interface |
100Base-T Ethernet |
|
Multi-Streaming |
8 non-identical streams |
Compliance
|
Industry Standard |
ONVIF Profile S conformant |
|
Listings |
UL (CB) |
|
FCC Compliance |
47 CFR 15 Class A |
|
Environmental |
RoHS, REACH, WEEE |
|
Markings |
(CE) EN 55022:2010 Class A, EN 55024:2010, |
|
|
EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, |
|
|
EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC |
|
|
60950-1 (ed. 2) and IEC 60950-22 (ed. 1) |
|
CoO |
Made in the USA |
Environmental
|
Operating Temperature |
-40°C (-40°F) to +50°C (122°F) |
|
Humidity |
0% to 90% (non-condensing) |
|
Storage Temperature |
-40°C (-40°F) to +60°C (140°F) |
Electrical
|
Alarm Input/Output |
1 input /1 output |
|
Power Over Ethernet |
PoE 802.3af, Class 3 |
|
Auxiliary Power |
18–48V DC, 24V AC |
|
Power Consumption |
14W max (auxiliary) |
Mechanical
|
Casing |
Die-cast aluminum chassis with polycarbonate dome bubble |
||
|
|
IP66 weather proof standard |
||
|
|
Impact resistant, IK-10 rated |
||
|
Color |
Arecont Vision® White (Pantone® Cool Grey 1C) |
||
|
Gimbal |
Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis |
||
|
Dimensions |
Unit |
Ø 7.7" (196mm) x 3.1" H (78.5mm) |
|
|
(See Dimensions) |
|
|
|
|
Bubble Only |
Ø 6.7" (169.2mm) x 1.3" H (33.4mm) |
||
|
|
|||
|
|
|
|
|
|
|
Packaged |
8" W (203mm) x 8" L (203mm) x 4" H (102mm) |
|
|
|
|
|
|
|
Weight |
Unit |
2.8lbs (1.27kg) |
|
|
|
|
|
|
|
|
Packaged |
3.4lbs (1.54kg) |
|
