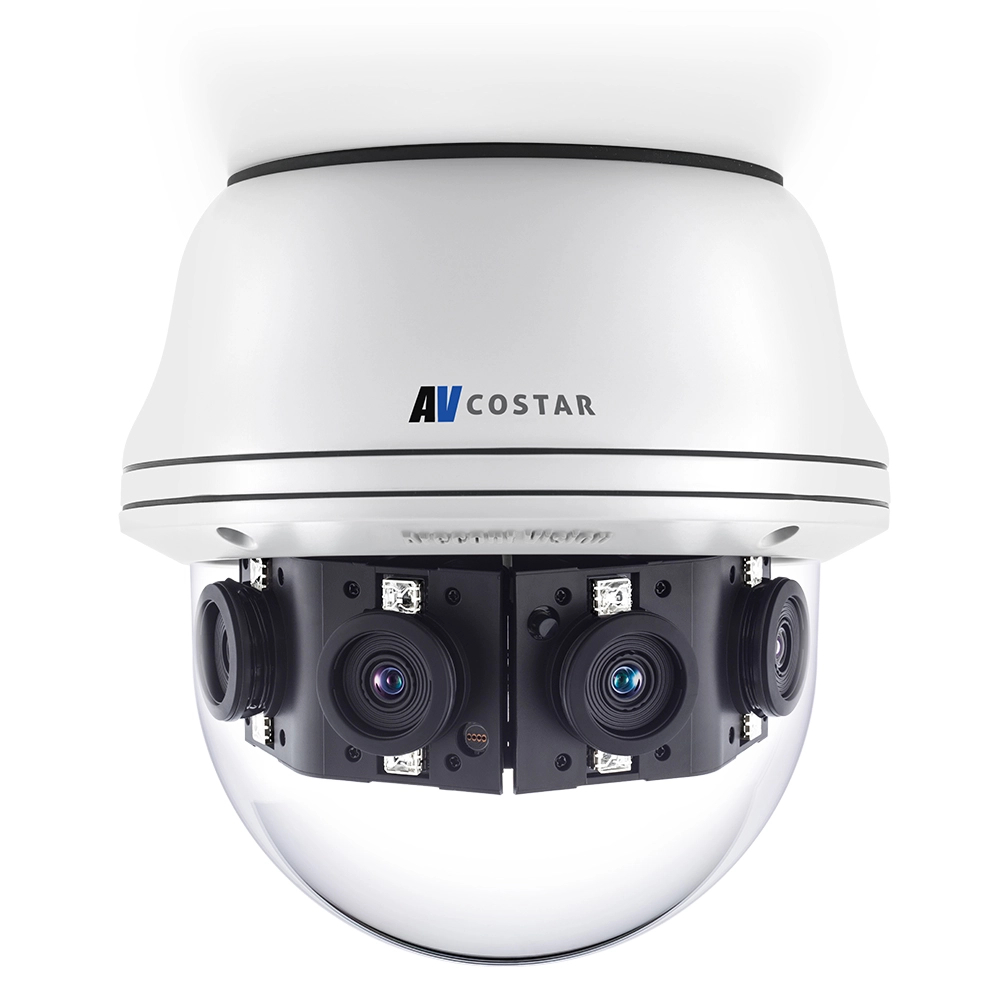

Arecont Vision - AV20CPD-118 - 20 MP All-in-One 180° Panoramic True Day/Night Indoor/Outdoor Dome IP Camera
Part number:
AV20CPD-118
Price:
- • 20MP Resolution
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- • On-Screen Display (OSD)
- • Defog Technology
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- • All-in-One H.265/H.264 Total PoE Solution (No External Power Required for Heater and IR LEDs) PoE and Auxiliary Power: 12V DC / 24V AC
- • IR Illumination on All Four Sensors
- • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- • Easily Adjustable 2-Axis Camera Gimbal with 360° Pan and 90° Tilt
- • Electrical Vertical and Horizontal Alignment to Locate Each Sensor Position
| Camera | |
|---|---|
| Image Sensor | 20MP (5MP x 4) CMOS Progressive Sensor |
| Optical Format | 1/2.9" |
| Minimum Illumination | Color (Day Mode): 0.1 Lux |
| B/W (Night Mode): 0.01 Lux | |
| Full FOV Resolution | Total: 10368 H x 1944 V |
| Per Sensor: 2592 H x 1944 V | |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB |
| Frame Rates at Max Resolution | Up to 30fps (20MP) |
| Multi-Stream | Up to 15fps (20MP) + 15fps (20MP) + 5fps (1.2MP) |
| Up to 30fps (20MP) + 30fps (1.2MP) + 5fps (1.2MP) | |
| Lens | M12, F2.2, 4.0mm, IR, H-FOV = 180°, V-FOV = 30° |
| Programmability | |
| Optics | Fixed lens |
| Low-Light Performance | NightView™ technology |
| Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Scaling (Per Sensor) | 8MP: 1920x1080, 1280x720, 960x540, 640x480, 640x360, 320x240 |
| 20MP: 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 640x480, 640x360, 320x240 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Digital Image Alignment | 8MP: +/- 6° vertical and +/- 9° horizontal |
| 20MP: +/- 2° vertical and +/- 4° horizontal | |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
| Max Camera Bandwidth | 30Mbps |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
| Users | Live Viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS, record JPG/mp4 |
| Compliance | |
| Listings | UL (CB) UL60950-1, E489591 |
| Industry Standard | ONVIF Profile S, G, T conformant |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -20°C (-4°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| IR Illuminator | |
| LEDs | 8pcs |
| Projection Distance | 100ft (30m) max |
| General Electrical | |
| Alarm Input/Output | 1 input (dry contact)/1 output (relay) |
| Power Over Ethernet | IEEE 802.3at (PoE+) Total PoE solution (no external power requirement) |
| Auxiliary Power | 12V DC, 24V AC |
| Power Consumption | 8MP: 21W PoE max |
| 20MP: 24W PoE max | |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with 6.2" (157mm) polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | Easily adjustable, 2-axis w/355° pan and 90° tilt |
| Dimensions | Unit: Ø 7.72" (196mm) x 7.42" H (188.4mm) |
| Bubble Only: Ø 6.18" (157mm) x 4.15" H (105.5mm) | |
| Packaged: 9.2" H (234mm) x 9.1" W (230mm) x 9.1" L (230mm) | |
| Weight | Unit: 5.51lbs (2.5kg) |
| Packaged: 6.17lbs (2.8kg) | |
| On Board Storage | MicroSDXC slot up to 256GB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
A&E Specification
0.1mb
File
Accessories Data Sheet
1.6mb
File
ConteraIP / MegaIP Feature Guide
0.4mb
File
Product Line Cards
0.9mb
Contera Panoramic megapixel IP cameras provide an all-in-one solution for wide-area video surveillance. Four sensors and lenses are housed in an IP66-rated, outdoor-ready, IK-10 impact-resistant dome enclosure. The cameras are available with a 180° field of view and 8- or 20-megapixel resolution. A single Contera Panoramic camera can replace multiple conventional cameras, offering the ability to zoom into multiple regions of interest. The return on investment is easily measurable. The Contera Panoramic is prepared for any lighting condition, regardless of the time of day. For applications with poor lighting conditions, Enhanced WDR (wide dynamic range) at 120 dB provides the best visual balance between shaded and bright areas. NightView offers strong low-light sensitivity for capturing details in extremely poorly lit scenes and is further enhanced by LED illumination built into each sensor gimbal, providing clear colour images in low light.
