Arecont Vision - AV2196DN - 1080Р Day/Night Indoor IP Mini Board Camera, 2.8mm
• 1080p Resolution
• Remote Focus
• True Day/Night
• Wide Dynamic Range
• SD Card Slot
• Indoor/Outdoor
• Optional IR Accessory
• Power Over Ethernet
• Lens Sold Separate
| Model | AV1195DN | AV2195DN | AV2196DN | AV3195DN | AV3196DN | AV5195DN | |
| Image Sensor (CMOS) | 1.2MP | 1080p (2.1MP) | 1080p (2.1MP) | 3MP | 3MP | 5MP | |
| Optical Format | 1/3" | 1/3" | 1/3.2" | 1/3" | 1/3.2" | 1/2.5" | |
| Pixel Pitch | 3.75μm | 2.2μm | 2.2μm | 2.2μm | 2.2μm | 2.2μm | |
Minimum Illumination | Color (Day Mode) | 0.03 Lux | 0.2 Lux | 0.2 Lux | 0.2 Lux | 0.2 Lux | 0.3 Lux |
| Color Binning (Day Mode) | - | - | - | 0.1 Lux | 0.1 Lux | 0.15 Lux | |
| B/W (Night Mode) | 0.003 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.03 Lux, IR sensitive | |
| Full FOV Resolution | 1280 H x 960 V | 1920 H x 1080 V | 1920 H x 1080 V | 2048 H x 1536 V | 2048 H x 1536 V | 2592 H x 1944 V | |
| 1/4 Resolution | 640 H x 480 V | 960 H x 540 V | 960 H x 540 V | 1024 H x 768 V | 1024 H x 768 V | 1296 H x 972 V | |
| Scaling (See Chart on Page 4) | - | Yes | Yes | Yes | Yes | Yes | |
| Dynamic Range | 83.5dB | 69.5dB | WDR up to 100dB | 69.5dB | WDR up to 100dB | 70.1dB | |
| Frame Rates** | At Max Res. | 37fps (1280 x 960) | 30fps (1920 x 1080) | 30fps (1920 x 1080) | 21fps (2048 x 1536) | 21fps (2048 x 1536) | 11fps (2592 x 1944) |
| Cropped | - | 30fps (1280 x 1024) | 30fps (1280 x 1024) | 30fps (1920 x 1080) 30fps (1280 x 1024) | 21fps (1920 x 1080) 21fps (1280 x 1024) | 16fps (2048 x 1536) 24fps (1920 x 1080) 33fps (1280 x 1024) | |
| Binning Mode | - | - | - | 42fps (1024 x 768) 59fps (960 x 540) | 21fps (1024 x 768) 21fps (800 x 600) 21fps (960 x 540) 21fps (640 x 512) | 27fps (1296 x 972) 37fps (1024 x 768) 48fps (960 x 540) | |
| Lens*** | Fixed Iris | MPM2.8A 2.8mm, 1/2.5", F/1.8, IR corrected, M12-mount | |||||
| H-FOV | 95° | 83° | 83° | 89° | 89° | 113° | |
Programmability
| Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Custom white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) |
| Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Bandwidth and storage savings by running at 1/4 resolution | |
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Electronic pan, tilt, zoom (PTZ) |
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Network Protocols | HTTP, IPv4, IPv6, QoS, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming | 8 non-identical streams |

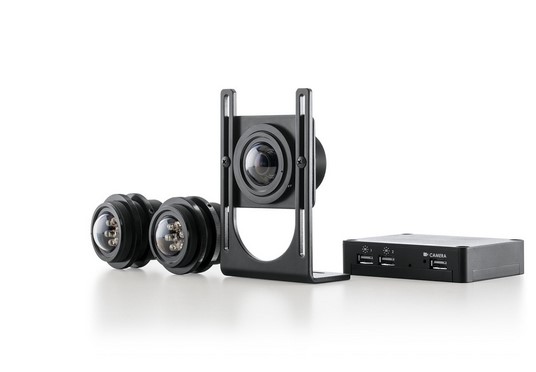

The MegaVideo Flex Series is a compact, all-in-one IP camera solution with a True Day/Night single sensor, available in 1.2MP, 1080p, 3MP and 5MP resolutions. Designed to fit into compact spaces where ordinary cameras would be challenging, this camera is ideal for tight spaces. Its simple design gives installers the flexibility to install the camera in one area and hide the main unit up to 12 metres away. You can also light up the night by adding up to two external IR illuminators.
