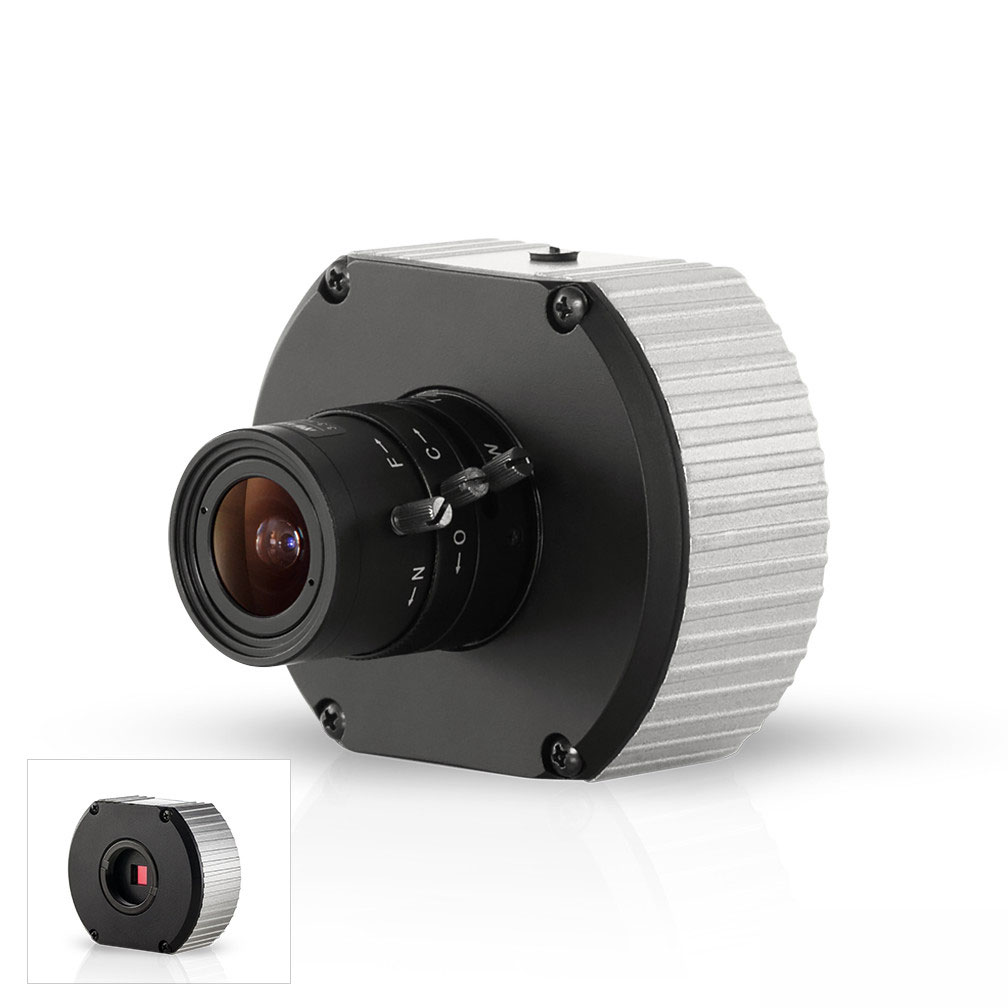

1080p H.264 True Day/Night Indoor Box-Style Compact IP Camera with SNAPstream (Smart Noise Adaptation and Processing) and WDR (Wide Dynamic Range)
The MegaVideo G5 multi-megapixel, indoor compact camera series delivers 1.2-, 1080p, 3-, 5-, or 10-megapixel resolutions (lens sold separately). Regardless of time-of-day, this camera is ideal for applications with challenging lighting conditions. The series combines a day/night mechanical IR cut filter with an optional P-iris lens on PM models for precise, optimal image quality. For applications with poor lighting conditions due to strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare, optional wide dynamic range is available on select 1080p and 3MP models.
Select 1080p models provide 30 images-per-second for optimum performance in fast action scenes such as casino and banking applications. For challenging low-light applications, the 1.2MP STELLAR model offers best-in-class light sensitivity capturing details in extreme low-light (0.002 lux in monochrome) at an incredibly high frame rate of 37 frames per second
The SD card slot on "-S" models supports up to 32GB of storage capacity for convenient onboard storage. MegaVideo G5 "DN" models feature SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality.
The camera’s power can be supplied via a Power-over-Ethernet compliant network cable connection or with power from a 12-48V DC/24V AC power supply. The camera's interface allows for an intuitive, fast, and easy configuration. The MegaVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.
Features :
Programmability
Optics | Remote focus, remote zoom, and P-iris control (when remote focus/zoom lens is used) (PM models only) |
Low Light Performance | |
STELLAR | 1.2MP models |
Pixel Binning Mode | 3, 5, and 10MP models |
Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
Motion Detection | Real-time, 1024 detection zones |
Privacy Masking | Unlimited |
Scaling | Non-integer scaling down to 128x96 (1080p, 3MP, 5MP, and 10MP "-S" models only) |
Casino Mode | Maintains 30fps or higher (AV2215 models) |
MoonLightTM Mode | Extended exposure and noise cancellation |
Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
Backlight Compensation | Auto multi-matrix white balance |
Flicker Control | 5Hz–255Hz adjustable |
Image Rotation | 180° image flip or CorridorViewTM (90°, 180°, and 270° image rotation) |
Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (WDR models) |
Efficiency |
|
Sharpness | Selectable enhancement level |
SDHC Card Slot | Supports micro SDHC cards up to 32GB (-S models only) |
Miscellaneous |
|
Data Transmission
Compression Type |
|
Network Protocols | IPv4, IPv6, HTTP, HTTPS*, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
Network Interface | 100Base-T Ethernet |
Multi-Streaming | |
1.2–5MP Models | 8 non-identical streams |
10MP Models | 4 non-identical streams |
