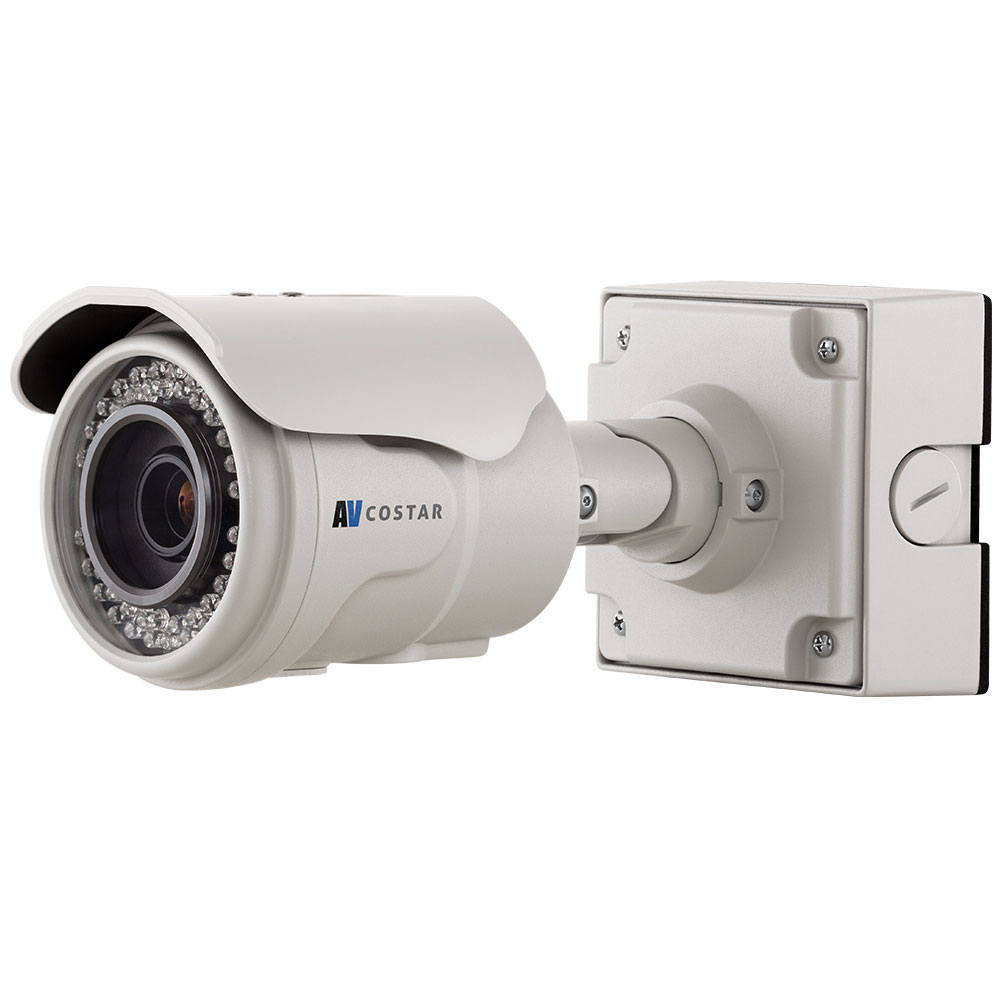

1080p (2.1 Megapixel) H.264 All-in-One Motorized P-Iris Lens True Day/Night IR Indoor/Outdoor Bullet-Style IP Camera with SNAPstream (Smart Noise Adaptation and Processing)
The AV2225 MegaView 2 series network camera is part of Arecont Vision’s full line of H.264 MegaView cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides 1920x1080 megapixel resolution at full video frame rates of 30 frames per second (fps). The AV2225 camera line provides an all-in-one solution with integrated 1080p full HD camera, IR illuminator, remote focus, remote zoom, p-iris IR corrected lens and vandal resistant aluminum cylindrical (Bullet-style) enclosure with IP66 weatherproofing standard.
With the features of ONVIF Profile S conformance, Casino Mode, privacy mask, extended motion detection and flexible cropping, the AV2225 is a high sensitivity, PoE (IEEE 802.3af) compliant Day/Night camera w/ IR illuminator. Built with Arecont Vision’s massively-parallel MegaVideo processing technology, this camera offers more than 6-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor/outdoor applications.
Features:
- 1080p (2.1MP) Resolution
- Remote Focus/Zoom with P-Iris Lens
- P-Iris Control to Get Best Depth of Field and Image Clarity
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- 2.8–8mm Wide Angle Lens
- True Day/Night Functionality with Mechanical IR Cut Filter and IR LEDs
- Casino Mode Guarantees Continuous 30fps Frame Rate Required by Gaming Industry Regulations
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Dual Encoder H.264/MJPEG
- Network Protocols Include 802.1x, DHCP, QoS, IPv6, and More
- Total PoE Solution (No External Power Required for IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Wall Mount, Junction Box Included
| Specifications | |
| Programmability | |
| Optics | Remote focus, remote zoom and P-iris control |
| Low Light Performance |
|
| Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Scaling | Non-integer scaling down to 128x96 |
| Casino Mode | Maintains 30fps or higher (AV2555 model) |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Multi-matrix white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorViewTM (90°, 180°, and 270° image rotation) |
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models only) |
| Efficiency |
|
| Sharpness | Selectable enhancement level |
| Miscellaneous |
|
| Data Transmission | |
| Compression Type |
|
| Network Protocols | HTTP, HTTPS*, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming |
|
