Arecont Vision - AV2225PMIR-S - 1080p MegaView2, 1920x1080, 30 fps, SNAPstream
Part number:
AV2225PMIR-S
Price:

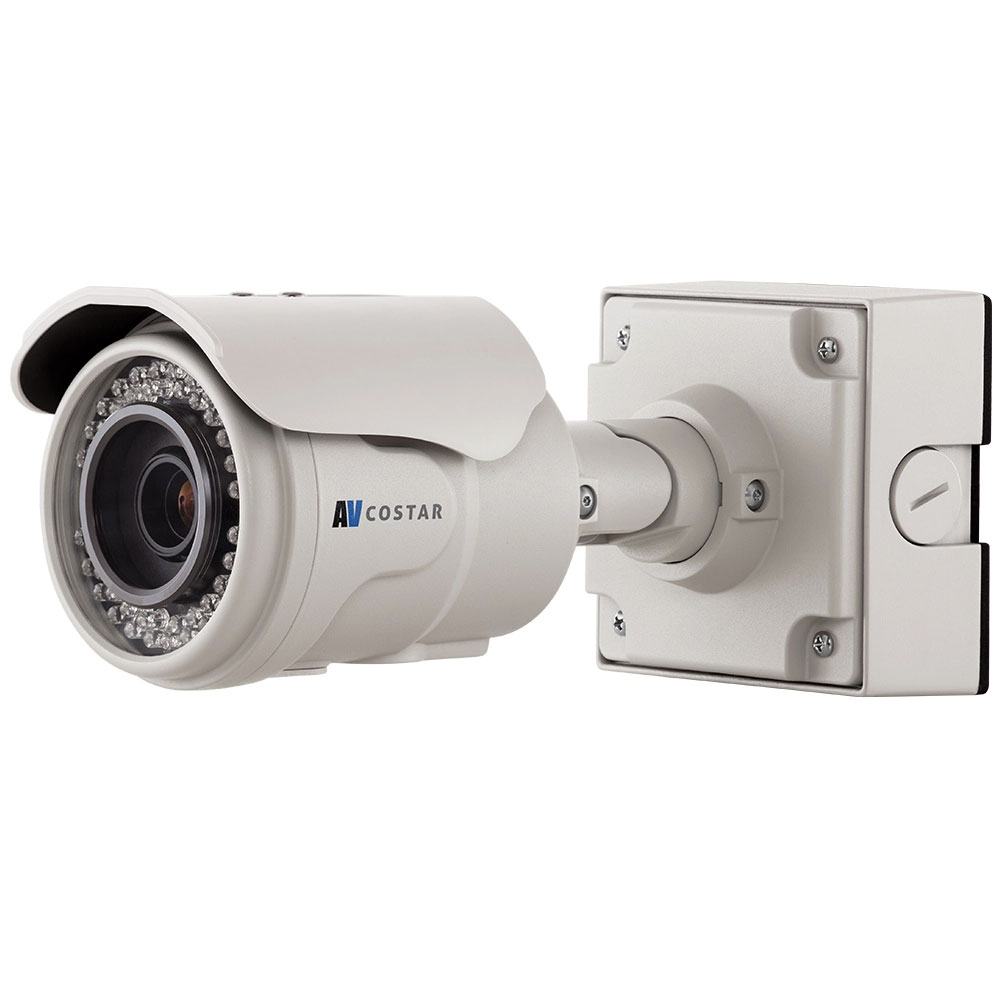

1080p (2.1 Megapixel) H.264 All-in-One Motorized P-Iris Lens True Day/Night IR Indoor/Outdoor Bullet-Style IP Camera
MegaView 2 multi-megapixel cameras provide ample resolution to zoom-in for details in live or recorded video. These indoor/outdoor all-in-one solutions integrate a 1.2-, 1080p, 3-, 5-, or 10-megapixel camera with fast frame rates and an IR corrected motorized wide angle or telephoto, P-iris lens into an IP66 environmental rated, tamper-resistant bullet-style housing. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality.
Features:
- 1080p (2.1MP) Resolution
- Remote Focus/Zoom Motorized P-Iris Lens
- P-Iris Control to Get Best Depth of Field and Image Clarity
- 2.8–8mm Wide Angle Lens
- True Day/Night Functionality with Mechanical IR Cut Filter and IR LEDs
- Casino Mode Guarantees Continuous 30fps Frame Rate Required by Gaming Industry Regulations
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Forensic Zooming and Non-Integer Scaling
- Dual Encoder H.264/MJPEG
- SDHC Card Slot for Onboard Storage
- Network Protocols Include DHCP, QoS, IPv6, and More
- Total PoE Solution (No External Power Required for IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Wall Mount, Junction Box Included
| Specifications | |
| Programmability | |
| Optics | Remote focus, remote zoom and P-iris control |
| Low Light Performance |
|
| Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Scaling | Non-integer scaling down to 128x96 |
| Casino Mode | Maintains 30fps or higher (AV2555 model) |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Multi-matrix white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorViewTM (90°, 180°, and 270° image rotation) |
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models only) |
| Efficiency |
|
| Sharpness | Selectable enhancement level |
| Miscellaneous |
|
| Data Transmission | |
| Compression Type |
|
| Network Protocols | HTTP, HTTPS*, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming |
|
| Compliance | |
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 |
| Mechanical | IP66 weather proof standard (EN60529), IK-10 impact-resistant |
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
