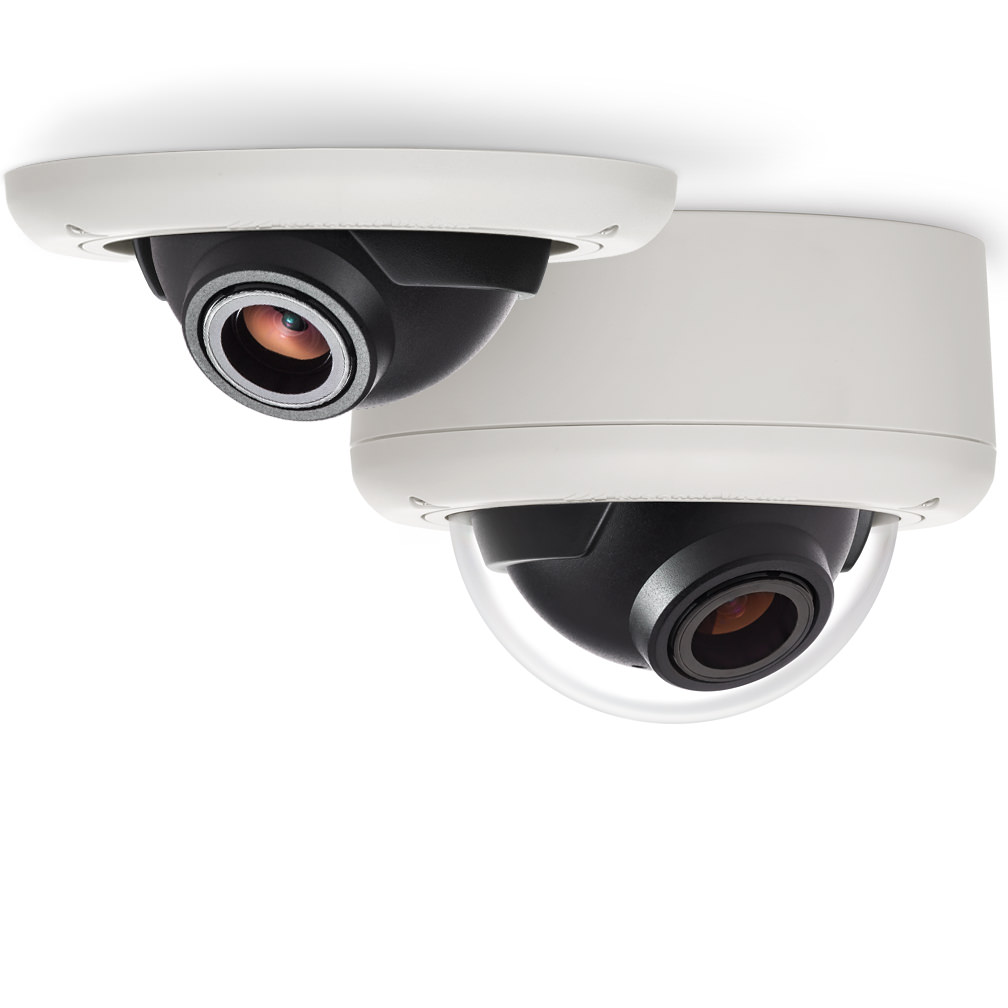

Arecont Vision - AV2245PM-D-LG - MegaBall 2 Series 1080p H.264 Motorized P-Iris Lens Day/Night Surface Mount Indoor Dome IP Camera (Light Gray)
Part number:
AV2245PM-D-LG
Price:
Features :
- NDAA Compliant
- True Day/Night
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Casino Mode to Maintain 30fps
- Indoor Rated
- ONVIF Profile S Conformance
- Power Over Ethernet
- Tamper-Resistant Housing
- 2.8–8.5mm P-iris Lens
- Remote Focus/Zoom
- 1080p Resolution
Programmability
| Optics | Remote focus, remote zoom, and P-iris control (PM models) | |
| Low-Light Performance | STELLAR | 1.2MP models |
| Pixel Binning Mode | 3MP and 5MP models | |
| Adjustable IR | IR models - beam angle and LED | |
| intensity manually changeable | ||
| Programmable | Controls motion blur, 1ms–500ms | |
| Shutter Speed | ||
| Motion Detection | Real-time, 1024 detection zones | |
| Privacy Masking | Unlimited | |
| Casino Mode™ | Maintains 30fps or higher (AV2245 model) | |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 | |
| pixels for H.264 | ||
| Backlight Compensation | Auto multi-matrix white balance | |
| Flicker Control | 5Hz–255Hz adjustable | |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) | |
| Scaling | Non-integer scaling down to 128x96 | |
| (See Scaling Resolution Chart on page 3) | ||
(Programmability Cont.)
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Electronic pan, tilt, zoom (PTZ) | |
| Password | 16-digit ASCII character password |
Data Transmission
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Transmission Protocols | HTTP, HTTPS†, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, |
| RTP/UDP, TFTP, DHCP | |
| 100Base-T Ethernet network interface | |
| Multi-Streaming | 8 non-identical streams |
Compliance
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950 |
Environmental
| Operating Temperature | -5°C (23°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -20°C (-4°F) to +60°C (140°F) |
General Electrical
| Alarm Input | General purpose opto-coupled (except PMIR models) |
| Alarm Output | General purpose opto-coupled |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Total PoE solution (no external power requirement) | |
| Auxiliary Power | 12–48V DC, 24V AC |
| IR Illuminator | (PMIR Models) | |||||
| LEDs | 12 pcs 850nm LEDs with Adjustable IR | |||||
| Projection Distance | 50ft (15m) max | |||||
| Projection Angle | 60° and 80° | |||||
| Audio Electrical (-A Models Only) | ||||||
| Streaming | Two-way | |||||
| Compression | G.711 PCM 8 kHz | |||||
| Input/Output | Integrated microphone/line output | |||||
| Mechanical | ||||||
| Casing | -B | Surface mount with die-cast aluminum housing | ||||
| -D | Plastic surface/in-ceiling dome with acrylic bubble | |||||
| Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt | |||||
| and 360° z-axis | ||||||
| Dimensions | -B (bell) | Ø 3.93" (100mm) x 3.24" H (87mm) | ||||
| (See Dimensions) | -D (in-ceiling) | Ø 5.1" (130mm) x 1.74" H (44mm) | ||||
| -D (surface w/ | Ø 5.1" (130mm) x 3.85" H (98mm) | |||||
| bubble) | ||||||
| Weight | Camera Unit | Packaged | ||||
| -B | 1.15lbs (0.52kg) | 1.65lbs (0.75kg) | ||||
| -D | 1.15lbs (0.52kg) | 1.7lbs (0.77kg) | ||||
| Dome Color | Light gray dome | |||||
