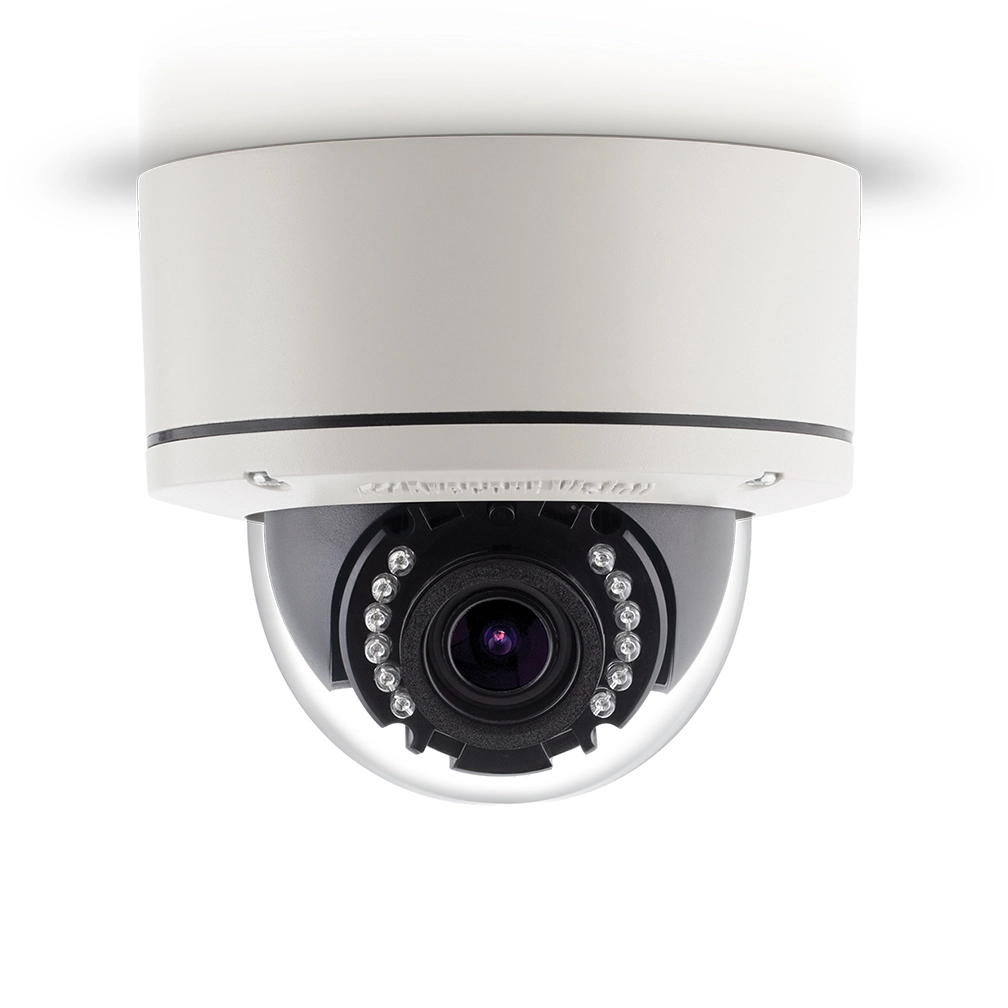

Arecont Vision - AV2355PMIR-SH - MegaDome G3 1080p Outdoor Network Dome Camera with Heater
MegaDome G3 third generation multi-megapixel cameras provide ample resolution to zoom-in for details in live or recorded video. These indoor/outdoor all-in-one solutions integrate a 1.2, 1080p, 3, 5 or 10-megapixel (MP) sensor with fast frame rates, and SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality. Together with an IR corrected motorized, P-iris wide angle or telephoto varifocal lens, remote focus and remote zoom make MegaDome G3 easy to install and manage. The installer-friendly housing is IP66 environmental rated and IK-10 impact-resistant. MegaDome G3 is feature-loaded, and select models include STELLAR (Spatio Temporal Low Light Architecture) for best-in-class light sensitivity capturing details in near complete darkness, or wide dynamic range (WDR) for applications with bright or over saturated lighting conditions.
Features:
- 1080p Resolution
- Remote Focus/Zoom Motorized, P-Iris Lens
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- P-Iris Control to Get Best Depth of Field and Image Clarity
- Wide Angle Lens
- True Day/Night Functionality with Mechanical IR Cut Filter
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Non-Integer Scaling
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Dual Encoder H.264/MJPEG
- IR LEDs
- SDHC Card Slot for Onboard Storage
- Heater
- Network Protocols Include HTTPS, 802.1x, DHCP, and More
- Total PoE Solution (No External Power Required for Heater and IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Gimbal
Programmability
| Optics | Remote focus, remote zoom, P-iris | ||
| Low Light Performance | |||
| STELLAR | 1.2MP models | ||
| Pixel Binning Mode | 3, 5 and 10MP models | ||
| Programmable | |||
| Controls motion blur, 1ms–500ms | |||
| Shutter Speed | |||
| Motion Detection | Real-time, 1024 detection zones | ||
| Privacy Masking | Unlimited | ||
| Scaling | Non-integer scaling down to 128x96 | ||
| (-S models at 1080p resolution or higher) | |||
| Casino Mode™ | Maintains 30fps or higher (AV2355 models) | ||
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and | ||
| 2x2 pixels for H.264 | |||
| Backlight | Multi-matrix white balance | ||
| Compensation | |||
| Flicker Control | 5Hz–255Hz adjustable | ||
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) | ||
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes | ||
| (WDR models only) | |||
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) | ||
| Bit rate and bandwidth limitation control | |||
| Bandwidth and storage savings by running at 1/4 resolution | |||
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Electronic pan, tilt, zoom (PTZ) |
Data Transmission
| Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG | |
| 21 levels of quality | ||
| Network Protocols | HTTP, HTTPS*, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, | |
| RTP/UDP, TFTP, DHCP | ||
| Network Interface | 100Base-T Ethernet | |
| Multi-Streaming | 1.2–5MP Models | |
| 8 non-identical streams | ||
| 10MP Models | 4 non-identical streams | |
Compliance
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55022 Class A, EN55024, EN61000-3-2, |
| EN61000-3-3, EN60950-1 | |
| Networking Standard | IEEE 802.3af-2003 PoE Standard, Class 3 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| CoO | Made in the USA |
Environmental
| Humidity | 0% to 90% (non-condensing) |
| Alarm Input/Output | General purpose opto-coupled, 1 input/1 output |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Auxiliary Power | 12–48V DC, 24V AC |
Max Power Consumption (Watts DC power)
| Model | AV1355 | AV2355 | AV2356 | AV3355 | AV3356 | AV5355 | AV10355 |
| PM | - | - | 11.3 | - | 11.3 | - | - |
| PM-H | - | 12.2 | - | 11.9 | - | 11.9 | - |
| PM-S | 10.9 | - | - | - | - | - | - |
| PMIR-S | 11.9 | - | 12.7 | - | 12.7 | - | - |
| PMIR-SA | - | - | - | - | 12.7 | - | - |
| PMIR-SAH | - | 12.1 | - | - | - | 12.1 | - |
| PMIR-SH | - | 12.1 | - | 12.1 | - | 12.1 | 13.0 |
| PMTIR-S | - | - | 14.2 | - | 14.2 | - | - |
| PMTIR-SH | - | 14.5 | - | 14.4 | - | 14.4 | 13.8 |
| IR Illuminator (IR models only) | |||||||
| PMIR | 12 pcs 850nm LEDs / 50ft (15m) IR distance (max) / 60° and | ||||||
| 80° IR angle | |||||||
| PMTIR | 12 pcs 850nm LEDs / 120ft (36m) IR distance (max) / 40° IR | ||||||
| angle | |||||||
| Power Over Ethernet | Total PoE solution (No external power requirement) | ||||||
Audio Electrical (-A and -AH models only)
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Microphone in or line in/line output |
| Heater Electrical (-H and -AH models only) | |
| Power Consumption | 2.28W max |
| Switch On/Off | On: 4°C (32.9°F), Off: 6.5°C (43.7°F) |
| Power Over Ethernet | Total PoE solution (no external power requirement) |
