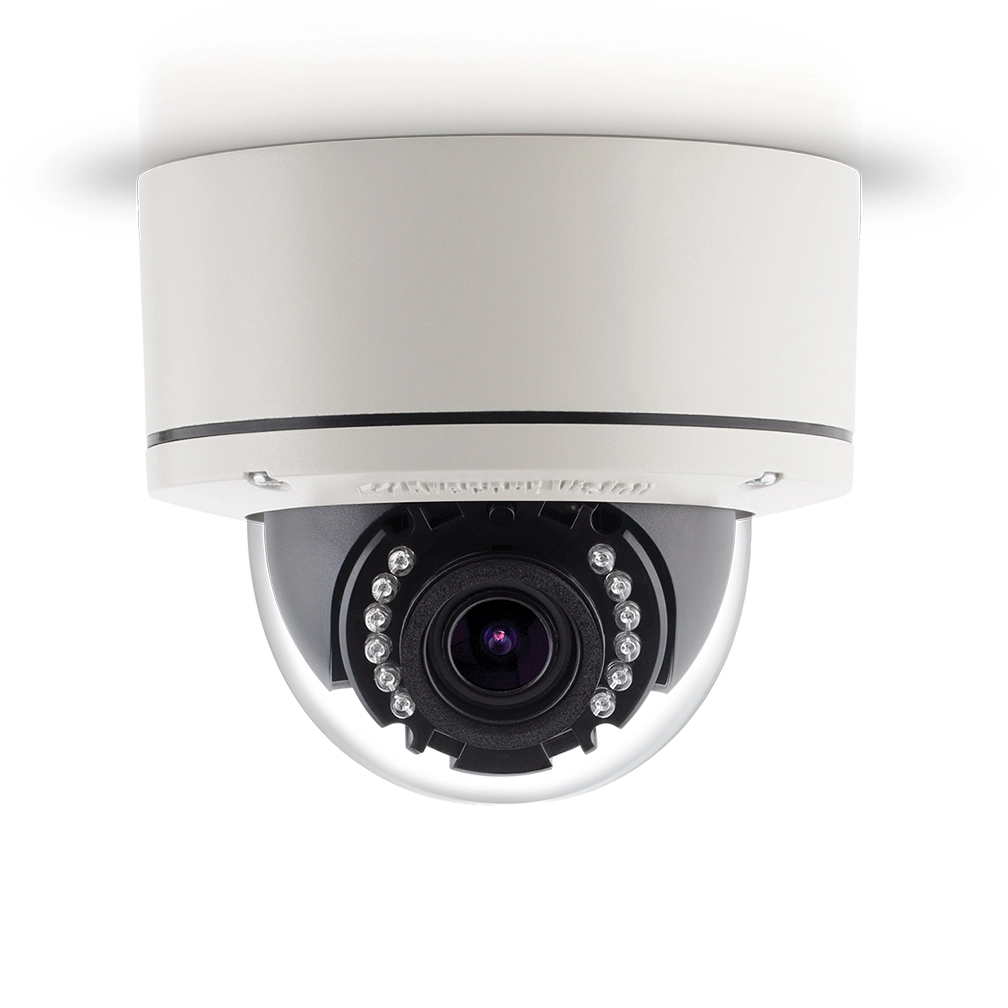

Arecont Vision - AV2356PM - MegaDome G3 1080p Outdoor Network Dome Camera
MegaDome® G3 third generation multi-megapixel cameras provide ample resolution to zoom-in for details in live or recorded video. These indoor/outdoor all-in-one solutions integrate a 1.2, 1080p, 3, 5 or 10-megapixel (MP) sensor with fast frame rates, and SNAPstream™ (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality. Together with an IR corrected motorized, P-iris wide angle or telephoto varifocal lens, remote focus and remote zoom make MegaDome G3 easy to install and manage. The installer-friendly housing is IP66 environmental rated and IK-10 impact-resistant. MegaDome G3 is feature-loaded, and select models include STELLAR™ (Spatio Temporal Low Light Architecture) for best-in-class light sensitivity capturing details in near complete darkness, or wide dynamic range (WDR) for applications with bright or over saturated lighting conditions.
Features:
- 1080p Resolution
- Remote Focus/Zoom Motorized, P-Iris Lens
- SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
- P-Iris Control to Get Best Depth of Field and Image Clarity
- Wide Angle Lens
- True WDR up to 100dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- True Day/Night Functionality with Mechanical IR Cut Filter
- CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Dual Encoder H.264/MJPEG
- Network Protocols Include 802.1x, DHCP, and More
- Total PoE Solution, PoE and Auxiliary Power: 12–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Gimbal
Programmability
|
Optics |
Remote focus, remote zoom, P-iris |
|||
|
Low Light Performance |
|
|
|
|
|
STELLAR |
|
1.2MP models |
||
|
|
|
|
|
|
|
|
Pixel Binning Mode |
|
3, 5 and 10MP models |
|
|
Programmable |
|
|
|
|
|
Controls motion blur, 1ms–500ms |
||||
|
Shutter Speed |
||||
|
|
|
|
||
|
Motion Detection |
Real-time, 1024 detection zones |
|||
|
Privacy Masking |
Unlimited |
|
||
|
Scaling |
Non-integer scaling down to 128x96 |
|||
|
|
(-S models at 1080p resolution or higher) |
|||
|
Casino Mode™ |
Maintains 30fps or higher (AV2355 models) |
|||
|
Flexible Cropping |
Resolution windowing down to 1x1 pixel for JPEG and |
|||
|
|
2x2 pixels for H.264 |
|
||
|
Backlight |
Multi-matrix white balance |
|
||
|
Compensation |
|
|||
|
|
|
|
||
|
Flicker Control |
5Hz–255Hz adjustable |
|
||
|
Image Rotation |
CorridorView™ (90°, 180°, and 270° image rotation) |
|||
|
Wide Dynamic Range |
Auto adjustment between WDR and LDR modes |
|||
|
|
(WDR models only) |
|
||
|
Efficiency |
SNAPstream™ (Smart Noise Adaptation and Processing) |
|||
|
|
Bit rate and bandwidth limitation control |
|||
|
|
Bandwidth and storage savings by running at 1/4 resolution |
|||
|
Sharpness |
Selectable enhancement level |
|
Miscellaneous |
Programmable resolution, brightness, saturation, gamma, tint |
|
|
Electronic pan, tilt, zoom (PTZ) |
Data Transmission
|
Compression Type |
H.264 (MPEG-4, Part 10) / Motion JPEG |
|
|
|
21 levels of quality |
|
|
Network Protocols |
HTTP, HTTPS*, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, |
|
|
|
RTP/UDP, TFTP, DHCP |
|
|
Network Interface |
100Base-T Ethernet |
|
|
Multi-Streaming |
1.2–5MP Models |
|
|
8 non-identical streams |
||
|
|
|
|
|
|
10MP Models |
4 non-identical streams |
Compliance
|
Industry Standard |
ONVIF Profile S conformant |
|
Listings |
UL (CB) |
|
FCC Compliance |
47 CFR 15 Class A |
|
Environmental |
RoHS, REACH, WEEE |
|
Markings |
CE: EN55022 Class A, EN55024, EN61000-3-2, |
|
|
EN61000-3-3, EN60950-1 |
|
Networking Standard |
IEEE 802.3af-2003 PoE Standard, Class 3 |
|
Mechanical |
IK-10 (EN62262), IP66 (EN60529) |
|
CoO |
Made in the USA |
Environmental
|
Humidity |
0% to 90% (non-condensing) |
Electrical
|
Alarm Input/Output |
General purpose opto-coupled, 1 input/1 output |
|
Power Over Ethernet |
PoE 802.3af, Class 3 |
|
Auxiliary Power |
12–48V DC, 24V AC |
Max Power Consumption (Watts DC power)
|
Model |
AV1355 |
AV2355 |
AV2356 |
AV3355 |
AV3356 |
AV5355 |
AV10355 |
|
|
|
|
|
|
|
|
|
|
PM |
- |
- |
11.3 |
- |
11.3 |
- |
- |
|
|
|
|
|
|
|
|
|
|
PM-H |
- |
12.2 |
- |
11.9 |
- |
11.9 |
- |
|
|
|
|
|
|
|
|
|
|
PM-S |
10.9 |
- |
- |
- |
- |
- |
- |
|
|
|
|
|
|
|
|
|
|
PMIR-S |
11.9 |
- |
12.7 |
- |
12.7 |
- |
- |
|
|
|
|
|
|
|
|
|
|
PMIR-SA |
- |
- |
- |
- |
12.7 |
- |
- |
|
|
|
|
|
|
|
|
|
|
PMIR-SAH |
- |
12.1 |
- |
- |
- |
12.1 |
- |
|
|
|
|
|
|
|
|
|
|
PMIR-SH |
- |
12.1 |
- |
12.1 |
- |
12.1 |
13.0 |
|
|
|
|
|
|
|
|
|
|
PMTIR-S |
- |
- |
14.2 |
- |
14.2 |
- |
- |
|
|
|
|
|
|
|
|
|
|
PMTIR-SH |
- |
14.5 |
- |
14.4 |
- |
14.4 |
13.8 |
|
|
|
|
|
|
|
|
|
|
IR Illuminator (IR models only) |
|
|
|
|
|
||
|
PMIR |
|
12 pcs 850nm LEDs / 50ft (15m) IR distance (max) / 60° and |
|||||
|
|
80° IR angle |
|
|
|
|
||
|
|
|
|
|
|
|
||
|
PMTIR |
|
12 pcs 850nm LEDs / 120ft (36m) IR distance (max) / 40° IR |
|||||
|
|
|
angle |
|
|
|
|
|
|
Power Over Ethernet |
Total PoE solution (No external power requirement) |
|
|||||
Audio Electrical (-A and -AH models only)
|
Streaming |
Two-way |
|
Compression |
G.711 PCM 8 kHz |
|
Input/Output |
Microphone in or line in/line output |
|
Heater Electrical (-H and -AH models only) |
|
|
Power Consumption |
2.28W max |
|
Switch On/Off |
On: 4°C (32.9°F), Off: 6.5°C (43.7°F) |
|
Power Over Ethernet |
Total PoE solution (no external power requirement) |
