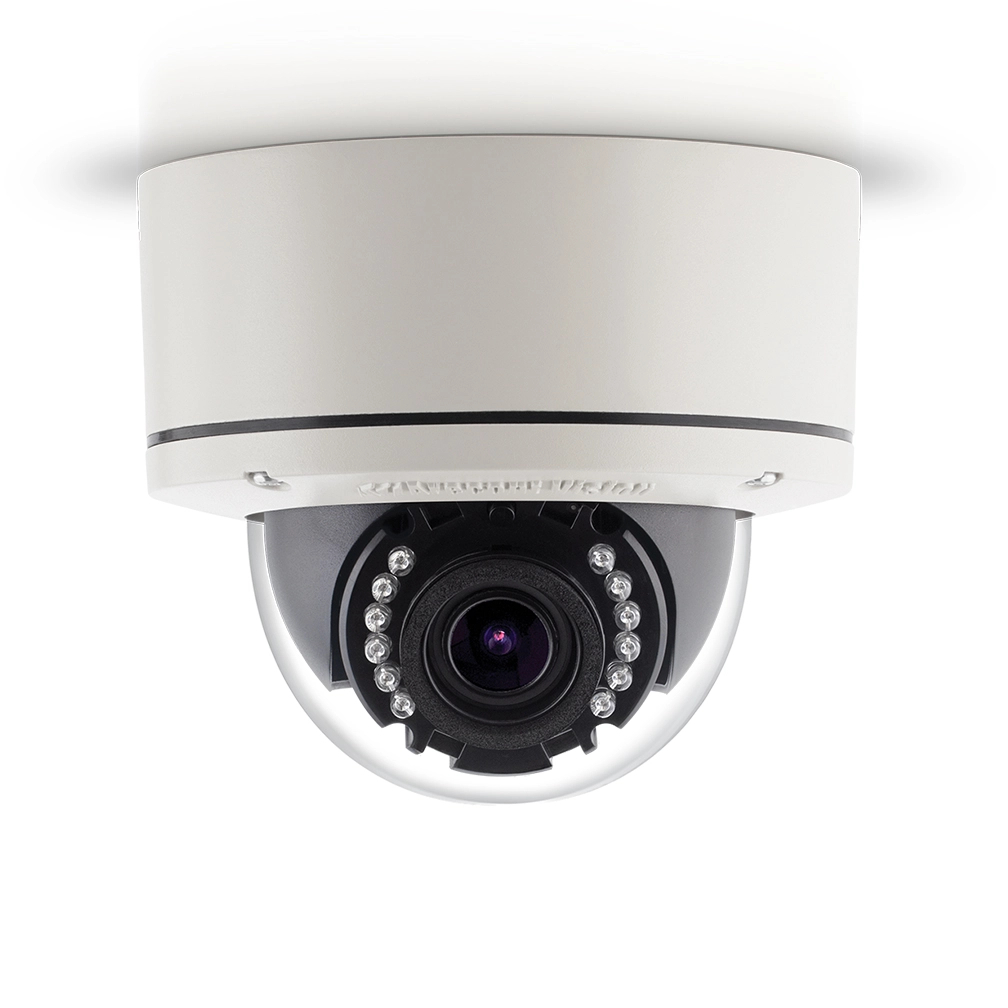

MegaDome® G3 third generation multi-megapixel cameras provide ample resolution to zoom-in for details in live or recorded video. These indoor/outdoor all-in-one solutions integrate a 1.2, 1080p, 3, 5 or 10-megapixel (MP) sensor with fast frame rates, and SNAPstream™ (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality. Together with an IR corrected motorized, P-iris wide angle or telephoto varifocal lens, remote focus and remote zoom make MegaDome G3 easy to install and manage. The installer-friendly housing is IP66 environmental rated and IK-10 impact-resistant. MegaDome G3 is feature-loaded, and select models include STELLAR™ (Spatio Temporal Low Light Architecture) for best-in-class light sensitivity capturing details in near complete darkness, or wide dynamic range (WDR) for applications with bright or over saturated lighting conditions.
Features:
- 1080p Resolution
- Remote Focus/Zoom Motorized, P-Iris Lens
- SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
- P-Iris Control to Get Best Depth of Field and Image Clarity
- Telephoto Lens
- True WDR up to 100dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- True Day/Night Functionality with Mechanical IR Cut Filter
- CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Non-Integer Scaling
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Dual Encoder H.264/MJPEG
- IR LEDs
- SDHC Card Slot for Onboard Storage
- Network Protocols Include HTTPS, 802.1x, DHCP, and More
- Total PoE Solution (No External Power Required for IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Gimbal
| Optics | Remote focus, remote zoom, P-iris | |
| Low Light Performance | STELLAR | 1.2MP models |
| Pixel Binning Mode | 3, 5 and 10MP models | |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms | |
| Motion Detection | Real-time, 1024 detection zone | |
| Privacy Masking | Unlimited | |
| Scaling | Non-integer scaling down to 128x96 (-S models at 1080p resolution or higher) |
|
| Casino Mode™ | Maintains 30fps or higher (AV2355 models) | |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | |
| Backlight Compensation | Multi-matrix white balance | |
| Flicker Control | 5Hz–255Hz adjustable | |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) | |
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models only) | |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) | |
| Bit rate and bandwidth limitation control | ||
| Bandwidth and storage savings by running at 1/4 resolution | ||
