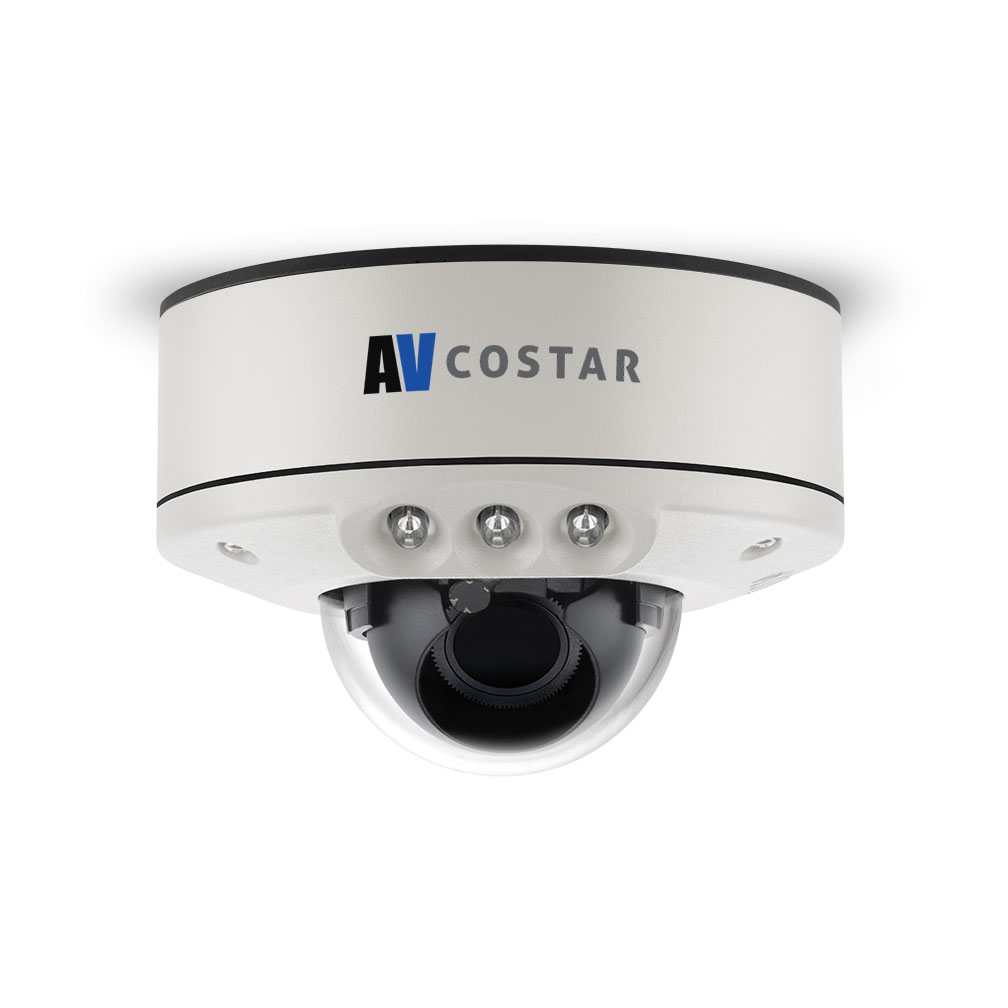

Arecont Vision - AV2756DNIR-S-NL - 1080p Contera Surface Mount Outdoor MicroDome LX, 2.8mm Lens
Part number:
AV2756DNIR-S-NL
Price:
- • 1080p (2.1MP) Resolution
- • Multiple Lens Options Available (Sold Separately)
- • Remote Focus Module
- • Easily Adjustable 3-Axis Gimbal
- •Ultra Low-Profile Design / Small Size
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, and Scaling
- • On-Screen Display (OSD)
- • Defog Technology
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- • All-in-One PoE Solution
- • Integrated IR LEDs (IR-S Models)
- • IK-10 Impact-Resistant Housing Outdoor Rated IP66 (IR-S Models)
- • Audio In / Out (Accessory Sold Separately)
- • Tamper-Resistant Housing
| Camera | |
|---|---|
| Image Sensor | 5MP CMOS Progressive |
| Optical Format | 1/2.8" |
| Minimum Illumination | Color (Day Mode): 0.10 Lux |
| B/W (Night Mode): 0.004 Lux | |
| Full FOV Resolution | 2592 H x 1944 V |
| Scaling | Yes |
| IR Illumination | No (IR-S models only) |
| Dynamic Range | 120dB |
| Frame Rates | Single Stream: Up to 30fps (5MP) |
| Multi-Stream: Up to 15fps (5MP) + 10fps (5MP) | |
| Up to 30fps (1080p) + 20fps (1080p) | |
| Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) | |
| Lens | MPM2.8C 2.8mm, 1/2.7", F/2.0, IR corrected, M12-mount, H-FOV = 98° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology |
| IR Support | IR-S models only |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView (90°, 180°, and 270° image rotation) + mirror |
| Scaling | 1080p: 1920x1080, 1280x720, 960x540, 640x480, 640x360, 320x240 |
| 5MP: 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360, 320x240 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure |
| Ethernet | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, IEC 62471 (IR-S Models Only) |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -5°C (23°F) to +50°C (122°F) (-F Models) |
| -20°C (-4°F) to +50°C (122°F) (IR-S Models) | |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power) |
| Power Consumption | 1080p -F Models: 5.5W PoE max |
| 1080p IR-S Models: 7.5W PoE max | |
| 5MP -F Models: 5.5W PoE max | |
| 5MP IR-S Models: 7.5W PoE max | |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Microphone | Integrated (-F models) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
The ConteraIP MicroDome LX megapixel cameras offer 1080p or 5MP resolutions for optimal performance, as well as a day/night mechanical IR cut filter and interchangeable lenses. The ConteraIP MicroDome LX is prepared for any lighting condition, regardless of the time of day. For applications with poor lighting, enhanced WDR (wide dynamic range) of up to 120 dB provides optimal visual balance in shaded and bright conditions. NightView offers strong low-light sensitivity to capture details in extremely poorly lit scenes and is further enhanced in IR-S models by built-in IR LED illumination.
