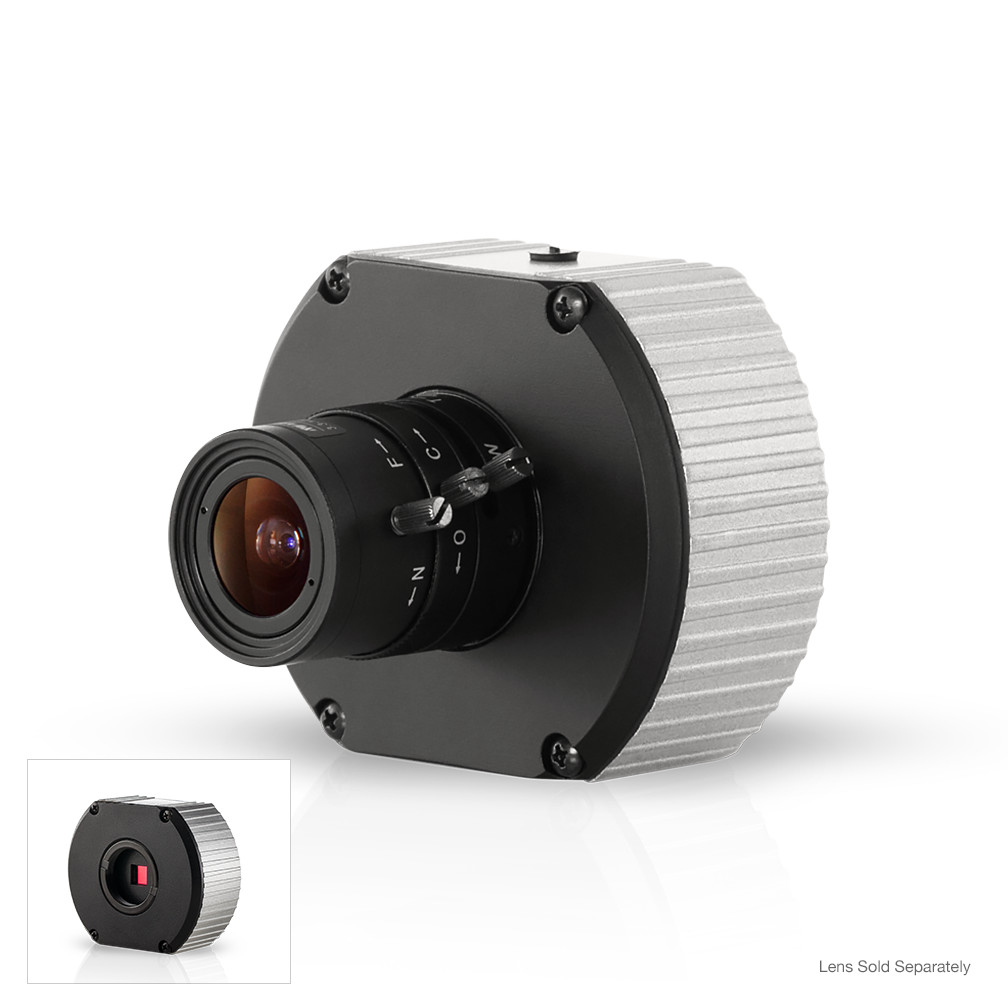

The MegaVideo G5 multi-megapixel, indoor compact camera series delivers1.2-, 1080p, 3-, 5-, or 10-megapixel resolutions (lens sold separately).Regardless of time-of-day, this camera is ideal for applications with challenginglighting conditions. The series combines a day/night mechanical IR cut filter withan optional P-iris lens on PM models for precise, optimal image quality.For applications with poor lighting conditions due to strong backlighting,reflections from wet flooring/puddles, or contrast due to fog, mist, or glare,optional wide dynamic range is available on select 1080p and 3MP models.
Select 1080p models provide 30 images-per-second for optimum performance infast action scenes such as casino and banking applications. For challenginglow-light applications, the 1.2MP STELLAR model offers best-in-class lightsensitivity capturing details in extreme low-light (0.002 lux in monochrome)at an incredibly high frame rate of 37 frames per second.
The SD card slot on "-S" models supports up to 32GB of storage capacity for convenient onboard storage. MegaVideo G5 "DN" models feature SNAPstream™ (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality.
The camera’s power can be supplied via aPower-over-Ethernet compliant network cable connection or with powerfrom a 12-48V DC/24V AC power supply. The camera's interface allowsfor an intuitive, fast, and easy configuration. The MegaVideo G5 is ONVIFProfile S (Open Network Video Interface Forum) compliant, providing interoperability betweennetwork video products regardless of manufacturer.
Features:
- 3MP Resolution
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- Enhanced WDR up to 100dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- True Day/Night Functionality with Mechanical IR Cut Filter
- Binning Mode for Strong Low Light Performance
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Dual Encoder H.264/MJPEG
- Network Protocols Include 802.1x, DHCP, QoS, IPv6, and More
- PoE and Auxiliary Power: 12–48V DC/24V AC
- Many Lenses to Choose From
- Small Size for Flexible Mounting Options
- Use with Arecont Vision Housings or as a Standalone Camera
| Specifications | |
| Optics | Remote focus, remote zoom, and P-iris control (when remote focus/zoom lens is used) (PM models only) |
| Low Light Performance | STELLAR 1.2MP models Pixel Binning Mode 3, 5, and 10MP models |
| Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| MoonLight™ Mode | Extended exposure and noise cancellation |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Auto multi-matrix white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | 180° image flip or CorridorView™ (90°, 180°, and 270° image rotation) |
| Scaling | Non-integer scaling down to 128x96 (1080p, 3MP, 5MP, and 10MP "-S" models only) (See Scaling Resolution Chart on page 3) |
| Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control Bandwidth and storage savings by running at 1/4 resolution |
| Sharpness | Selectable enhancement level |
| SDHC Card Slot | Supports micro SDHC cards up to 32GB (-S models only) |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint Electronic pan, tilt, zoom (PTZ) |
