Resolution

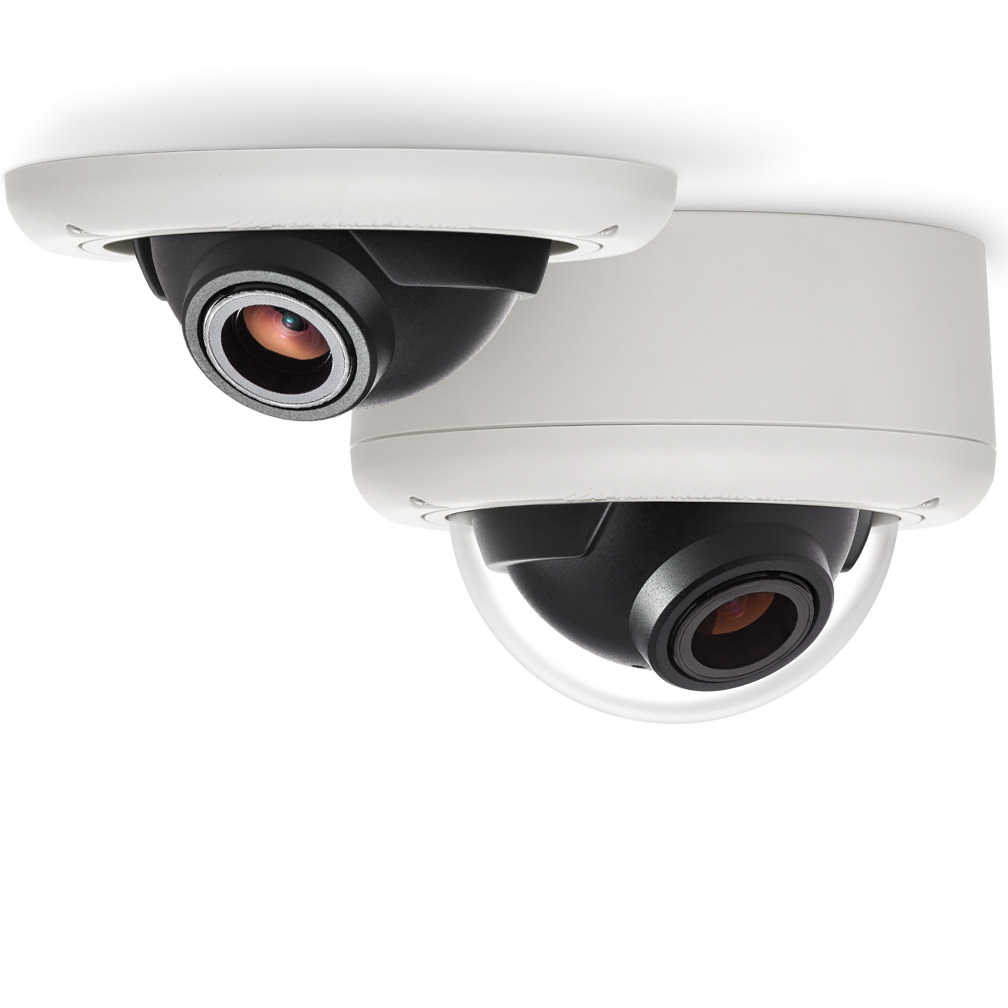

The MegaBall G2 megapixel camera series fuses optimum performance with outstanding aesthetics. These stylish indoor cameras feature a choice of 1.2-, 1080p-, 3-, or 5-megapixel (MP) resolution options.
Challenging Lighting Conditions
Regardless of time-of-day, this camera is ideal for applications with challenging lighting conditions. The series combines a day/night mechanical IR cut filter with an integrated P-iris lens for precise, optimal image quality. For applications with poor lighting conditions optional wide dynamic range is available on some 1080p and 3MP models. For challenging low-light color images without IR, the 1.2MP STELLAR, “Spatio Temporal Low Light Architecture” model offers best-in-class light sensitivity capturing details in near complete darkness. For additional low light capabilities Binning Mode is available on 3MP and 5MP camera models.
Adjustable Infrared Illumination
MegaBall G2 IR models are integrated with an Adjustable Infrared Illuminator, providing clear images in extreme, low-light scenes. Infrared camera models offer the ability to manually adjust the IR's level of intensity, providing the flexibility to ensure the scene is illuminated uniformly.
Ease of Installation
The camera's interface allows for an intuitive, fast, and easy configuration; while the Free AV IP Utility tool allows users to quickly configure multiple cameras at one time. The MegaBall G2 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.
Features:
- 3MP Resolution
- 2.8–8.5mm P-iris Lens
- Remote Focus/Zoom
- True Day/Night
- Enhanced WDR up to 100dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- Indoor Rated
- Tamper-Resistant Housing
- Binning Mode for Strong Low-Light Performance
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Power Over Ethernet
- ONVIF Profile S Conformance
Programmability
| Optics | Remote focus, remote zoom, and P-iris control (PM models) | |
| Low-Light Performance | STELLAR | 1.2MP models |
| Pixel Binning Mode | 3MP and 5MP models | |
| Adjustable IR | IR models - beam angle and LED | |
| intensity manually changeable | ||
| Programmable | Controls motion blur, 1ms–500ms | |
| Shutter Speed | ||
| Motion Detection | Real-time, 1024 detection zones | |
| Privacy Masking | Unlimited | |
| Casino Mode™ | Maintains 30fps or higher (AV2245 model) | |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 | |
| pixels for H.264 | ||
| Backlight Compensation | Auto multi-matrix white balance | |
| Flicker Control | 5Hz–255Hz adjustable | |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) | |
| Scaling | Non-integer scaling down to 128x96 | |
| (See Scaling Resolution Chart on page 3) | ||
(Programmability Cont.)
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Electronic pan, tilt, zoom (PTZ) | |
| Password | 16-digit ASCII character password |
Data Transmission
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Transmission Protocols | HTTP, HTTPS†, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, |
| RTP/UDP, TFTP, DHCP | |
| 100Base-T Ethernet network interface | |
| Multi-Streaming | 8 non-identical streams |
Compliance
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950 |
Environmental
| Operating Temperature | -5°C (23°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -20°C (-4°F) to +60°C (140°F) |
General Electrical
| Alarm Input | General purpose opto-coupled (except PMIR models) |
| Alarm Output | General purpose opto-coupled |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Total PoE solution (no external power requirement) | |
| Auxiliary Power | 12–48V DC, 24V AC |
Max Power Consumption (Watts DC Power)
| Model Number | PM | PMIR | 01-D (Panomorph) |
| AV1245 | – | 8.2W | – |
| AV2245 / AV3245 | 6.7W | 8.1W | – |
| AV2246 / AV3246 | 7.8W | 9.4W | – |
| AV5245 | 7.1W | 8.7W | 5.7W |
| IR Illuminator | (PMIR Models) | |||||
| LEDs | 12 pcs 850nm LEDs with Adjustable IR | |||||
| Projection Distance | 50ft (15m) max | |||||
| Projection Angle | 60° and 80° | |||||
| Audio Electrical (-A Models Only) | ||||||
| Streaming | Two-way | |||||
| Compression | G.711 PCM 8 kHz | |||||
| Input/Output | Integrated microphone/line output | |||||
| Mechanical | ||||||
| Casing | -B | Surface mount with die-cast aluminum housing | ||||
| -D | Plastic surface/in-ceiling dome with acrylic bubble | |||||
| Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt | |||||
| and 360° z-axis | ||||||
| Dimensions | -B (bell) | Ø 3.93" (100mm) x 3.24" H (87mm) | ||||
| (See Dimensions) | -D (in-ceiling) | Ø 5.1" (130mm) x 1.74" H (44mm) | ||||
| -D (surface w/ | Ø 5.1" (130mm) x 3.85" H (98mm) | |||||
| bubble) | ||||||
| Weight | Camera Unit | Packaged | ||||
| -B | 1.15lbs (0.52kg) | 1.65lbs (0.75kg) | ||||
| -D | 1.15lbs (0.52kg) | 1.7lbs (0.77kg) | ||||
| Dome Color | Light gray dome | |||||
