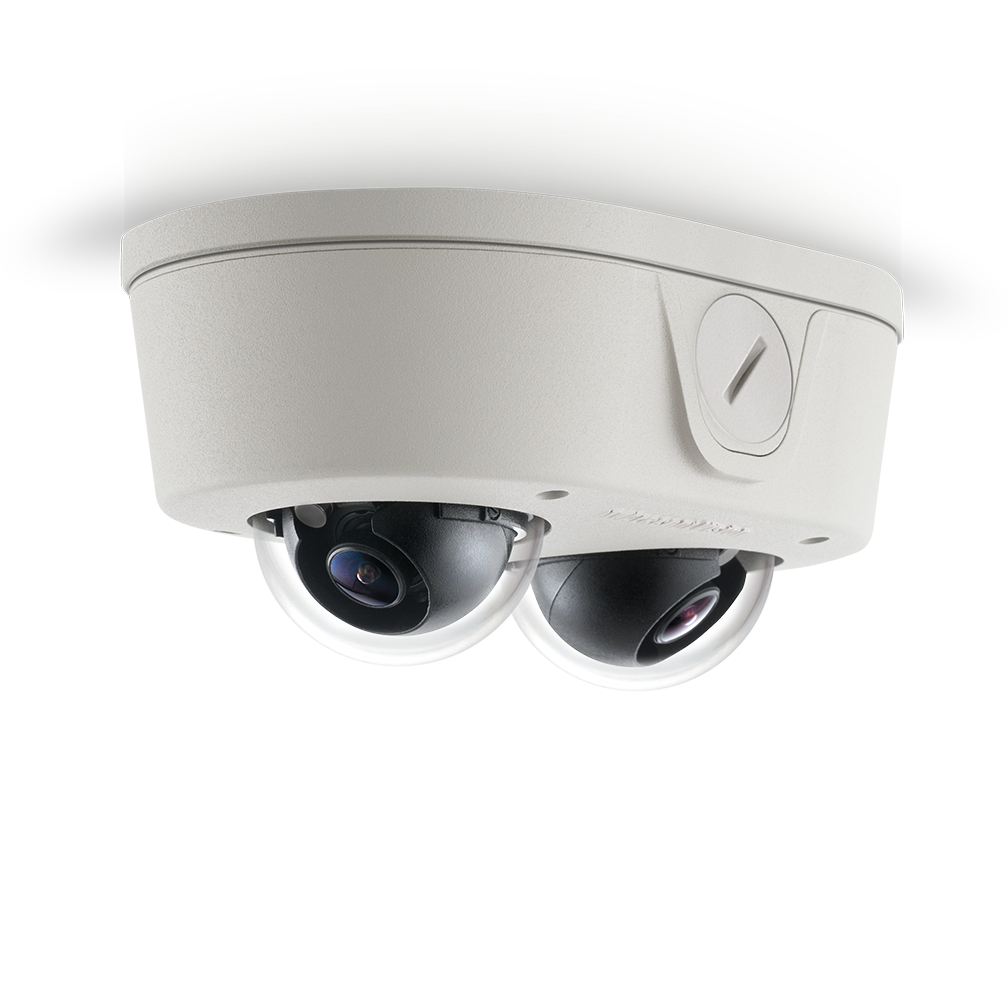

Arecont Vision - AV4655DN-28 - MicroDome Duo Series 4MP Outdoor Network Dome Camera with 2.8mm Lenses

MicroDome Duo, 2 Sensor Camera, 4 Megapixel Total, Remote Focus & Day/Night H.264/MJPEG, SNAPstream, 2 x 1920x1080, 2 x 2.8mm MP Lens, 2 x 3 Axis Gimbals, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE

Part number:
AV4655DN-28
Price:

The MicroDome® Duo series features twin, independent multi-megapixel cameras in a compact housing, and is ideal for a variety of professional indoor/outdoor surveillance requirements. Applications include coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions.

The extremely compact MicroDome Duo series offers 4-, 6-, or 10-megapixel resolution models, with choice of 2.1mm, 2.8mm, 4mm, 6mm, 8mm, 12mm, or 16mm lenses. The MicroDome Duo is ideal for applications with challenging lighting conditions regardless the time of day, supported by dual day/night mechanical IR cut filters. For applications with strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare, Wide Dynamic Range (WDR) is available on select 4- and 6-megapixel models. MicroDome Duo features CorridorView™ for better coverage of hallways and corridors.

Built-in remote focus capability allows installers to simply click “Short-range Focus” or “Full-range Focus” for rapid setup. The three-axis lens adjustment provides multiple camera placement options, allowing the MicroDome Duo to be easily mounted on a wall or ceiling, while the installer can pan, tilt, and rotate the lens in a variety of directions for a precise eld of view.



features:

  • True Day/Night Functionality with Mechanical IR Cut Filter
  • CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  • Dual Encoder H.264/MJPEG
  • Remote Focus Module
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
  • Multiple Lens Options Available (Sold Separately)
  • Network Protocols Include DHCP, and More
  • All-in-One H.264 Total Power Over Ethernet (PoE) Solution
  • Easily Adjustable 3-Axis Gimbal
  • Ultra Low Pro le Design / Small Size
  • IK-10 Impact-Resistant Housing
  • Outdoor Rated IP66

Programmability



Optics

M12 lens and remote focus module



Low Light Performance









Pixel Binning Mode



6MP and 10MP models



Picture-in-Picture







Simultaneous delivery of full field-of-view and zoomed images



Programmable

Controls motion blur, 1ms–500ms



Shutter Speed











Motion Detection

Real-time, 1024 detection zones



Privacy Masking

Unlimited







Flexible Cropping

Resolution windowing down to 1x1 pixel for JPEG and 2x2





pixels for H.264







Backlight Compensation

Reference windows for auto exposure and white balance



Flicker Control

50/60Hz selectable







Image Rotation

CorridorView™ (90°, 180°, and 270° image rotation)



Wide Dynamic Range

Auto switch control adjustment between WDR and LDR modes





(WDR models)







Noise Reduction

Low light noise filter

control



Efficiency

Bit rate and bandwidth limitation control





Bandwidth and storage savings by running at 1/4 resolution



Sharpness

Selectable enhancement level



Miscellaneous

Programmable resolution, brightness, saturation, gamma, tint





Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type

H.264 (MPEG-4, Part 10)/Motion JPEG



21 levels of quality

Network Protocols

HTTP, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP

Network Interface

100Base-T Ethernet

Multi-Streaming

8 non-identical streams

Compliance

Industry Standard

ONVIF Profile S

Listings

UL (CB)

FCC Compliance

47 CFR 15 Class A

Environmental

RoHS, REACH, WEEE

Markings

(CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3,



EN60950-1

Mechanical

IP66 (EN60529), IK-10

CoO

Made in the USA

Environmental

Operating Temperature

-40°C (-40°F) to +50°C (122°F)

Humidity

0% to 90% (non-condensing)

Storage Temperature

-40°C (-4°F) to +60°C (140°F)

Electrical

Alarm Input/Output

General purpose opto-coupled, 1 input /1 output

Power Over Ethernet

PoE 802.3af, Class 3

Power Consumption

7.9W DC power max
