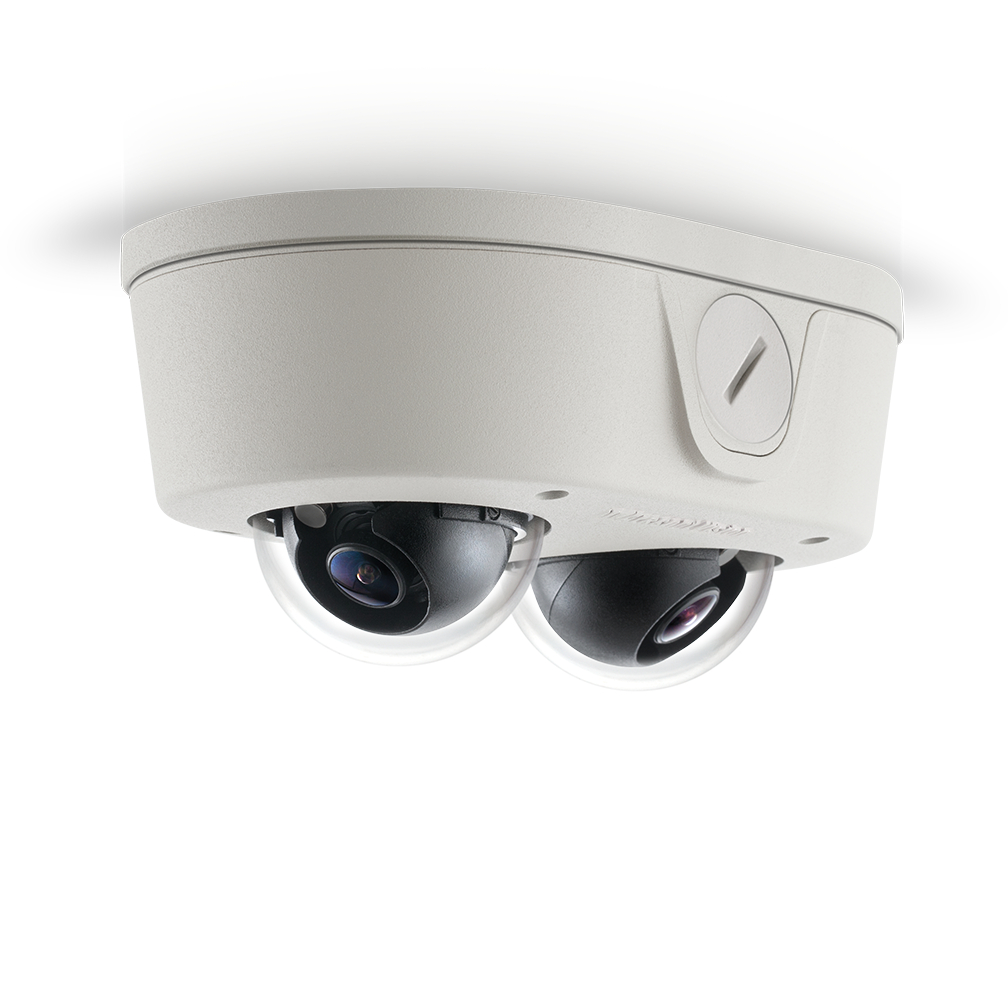

The MicroDome Duo series features twin, independent multi-megapixel cameras in a compact housing, and is ideal for a variety of professional indoor/outdoor surveillance requirements. Applications include coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions.
The extremely compact MicroDome Duo series offers 4-, 6-, or 10-megapixel resolution models, with choice of 2.1mm, 2.8mm, 4mm, 6mm, 8mm, 12mm, or 16mm lenses. The MicroDome Duo is ideal for applications with challenging lighting conditions regardless the time of day, supported by dual day/night mechanical IR cut filters. For applications with strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare, Wide Dynamic Range (WDR) is available on select 4- and 6-megapixel models. MicroDome Duo features CorridorView for better coverage of hallways and corridors.
Built-in remote focus capability allows installers to simply click “Short-range Focus” or “Full-range Focus” for rapid setup. The three-axis lens adjustment provides multiple camera placement options, allowing the MicroDome Duo to be easily mounted on a wall or ceiling, while the installer can pan, tilt, and rotate the lens in a variety of directions for a precise eld of view.
The installer-friendly MicroDome Duo enclosure shortens the installation process. MicroDome Duo is in an IP66 rated surface mount for use in both indoor and outdoor applications. All models feature an impact resistant, IK-10 rated cast-aluminum housing with dual polycarbonate bubbles, capable of withstanding the equivalent of 55 kg (120 lbs) of force.
Features:
- NDAA Compliant
- True Day/Night Functionality with Mechanical IR Cut Filter
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Dual Encoder H.264/MJPEG
- Remote Focus Module
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Multiple Lens Options Available (Sold Separately)
- Network Protocols Include DHCP, and More
- All-in-One H.264 Total Power Over Ethernet (PoE) Solution
- Easily Adjustable 3-Axis Gimbal
- Ultra Low Pro le Design / Small Size
- IK-10 Impact-Resistant Housing
- Outdoor Rated IP66
| Model | AV4655DN | AV4656DN | AV6655DN | AV6656DN | AV10655DN | ||||||
| Image Sensor (CMOS) | 4MP (2 x 1080p) | 4MP (2 x 1080p) | 6MP (2 x 3MP) | 6MP (2 x 3MP) | 10MP (2 x 5MP) | ||||||
| Optical Format | 1/3" | 1/3.2" | 1/3" | 1/3.2" | 1/2.5" | ||||||
| Pixel Pitch | 2.2μm | 2.2μm | 2.2μm | 2.2μm | 2.2μm | ||||||
Minimum Illumination | Color (Day Mode) | 0.2 Lux | 0.2 Lux | 0.2 Lux | 0.2 Lux | 0.3 Lux | |||||
| Color Binning (Day Mode) | - | - | 0.1 Lux | 0.1 Lux | 0.15 Lux | ||||||
| B/W (Night Mode) | 0.02 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.02 Lux, IR sensitive | 0.03 Lux, IR sensitive | ||||||
| Full FOV Resolution | Total | 3840 H x 1080 V | Total | 3840 H x 1080 V | Total | 4096 H x 1536 V | Total | 4096 H x 1536 V | Total | 5120 H x 1920 V | |
| Per Sensor | 1920 H x 1080 V | Per Sensor | 1920 H x 1080 V | Per Sensor | 2048 H x 1536 V | Per Sensor | 2048 H x 1536 V | Per Sensor | 2560 H x 1920 V | ||
| 1/4 Resolution | Total | 1920 H x 540 V | Total | 1920 H x 540 V | Total | 2048 H x 768 V | Total | 2048 H x 768 V | Total | 2560 H x 960 V | |
| Per Sensor | 960 H x 540 V | Per Sensor | 960 H x 540 V | Per Sensor | 1024 H x 768 V | Per Sensor | 1024 H x 768 V | Per Sensor | 1296 H x 960 V | ||
| Dynamic Range | 69.5dB | WDR up to 100dB | 69.5dB | WDR up to 100dB | 70.1dB | ||||||
| Frame Rates* | At Max Resolution | 15fps (3840 x 1080) | 15fps (3840 x 1080) | 10fps (4096 x 1536) | 10fps (4096 x 1536) | 7fps (5120 x 1920) | |||||
| 1/4 Resolution | 24fps (1920 x 590) | 24fps (1920 x 590) | 17fps (2048 x 768) | 17fps (2048 x 768) | 10fps (2560 x 960) | ||||||
| Binning Mode | - | - | 34fps (2048 x 768) | 17fps (2048 x 768) | 26fps (2560 x 960) | ||||||
| Lens | 2.8mm Lens Option (-28 Models) | 2.8mm, F1.8, H-FOV = 83° | 2.8mm, F1.8, H-FOV = 83° | 2.8mm, F1.8, H-FOV = 88° | 2.8mm, F1.8, H-FOV = 88° | 2.8mm, F1.8, H-FOV = 114° | |||||
8mm Lens Option (-08 Models) | 8mm, F1.6, H-FOV = 30° | 8mm, F1.6, H-FOV = 30° | 8mm, F1.6, H-FOV = 33° | 8mm, F1.6, H-FOV = 33° | 8mm, F1.6, H-FOV = 43° | ||||||
Programmability
| Optics | M12 lens and remote focus module | ||
| Low Light Performance | |||
| Pixel Binning Mode | 6MP and 10MP models | ||
| Picture-in-Picture | |||
| Simultaneous delivery of full field-of-view and zoomed images | |||
| Programmable | Controls motion blur, 1ms–500ms | ||
| Shutter Speed | |||
| Motion Detection | Real-time, 1024 detection zones | ||
| Privacy Masking | Unlimited | ||
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 | ||
| pixels for H.264 | |||
| Backlight Compensation | Reference windows for auto exposure and white balance | ||
| Flicker Control | 50/60Hz selectable | ||
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) | ||
| Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes | ||
| (WDR models) | |||
| Noise Reduction | Low light noise filter | control | |
| Efficiency | Bit rate and bandwidth limitation control | ||
| Bandwidth and storage savings by running at 1/4 resolution | |||
| Sharpness | Selectable enhancement level | ||
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint | ||
| Electronic pan, tilt, zoom (PTZ) | |||
Data Transmission
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Network Protocols | HTTP, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming | 8 non-identical streams |
Compliance
| Industry Standard | ONVIF Profile S |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950-1 | |
| Mechanical | IP66 (EN60529), IK-10 |
| CoO | Made in the USA |
Environmental
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-4°F) to +60°C (140°F) |
Electrical
| Alarm Input/Output | General purpose opto-coupled, 1 input /1 output |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Power Consumption | 7.9W DC power max |
