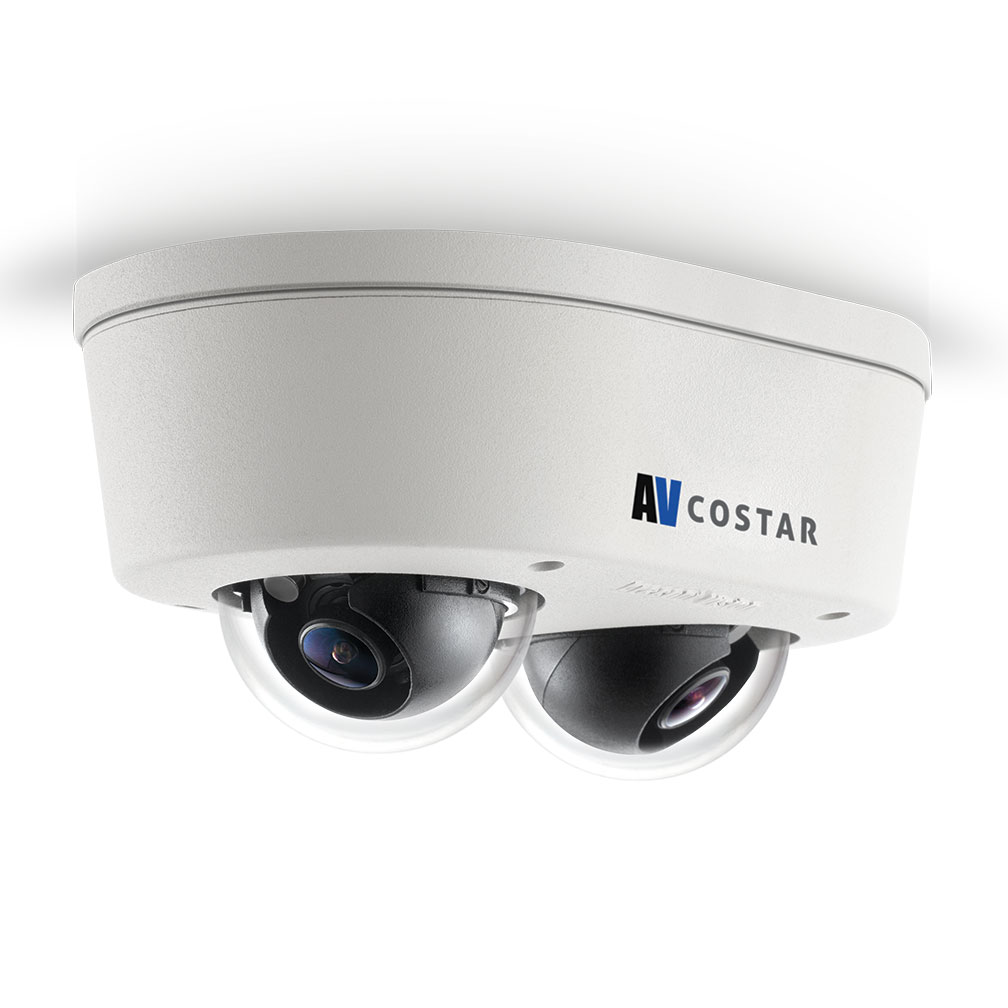

Arecont Vision - AV4856DN-28 - 4MP 2 Sensor Camera 4 MP 2 x 1920x1080 2 x 2.8mm MP Lens Remote Focus H.265/H.264 MicroDome Duo LX

4MP MicroDome Duo LX, 2 Sensor Camera, 4 Megapixel Total, 2 x 1920x1080, 2 x 2.8mm MP Lens, Remote Focus & Day/Night, H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 30fps, IR, Defog, Onvif, PoE , 2 x 3 Axis Gimbals, Surface mount, Indoor/Outdoor, IP66, IK-10, PoE

Part number:
AV4856DN-28
Price:
  • - 4MP Resolution
  • - 2 x 2.8mm Lenses
  • - Remote Focus
  • - Easily Adjustable 3-Axis Gimbal
  • - Multiple Lens Options in a Single Camera Housing
  • - SNAPstream+™ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
  • - NightView™ for Strong Low Light Performance
  • - True Day/Night Functionality with Mechanical IR Cut Filter
  • - On-Screen Display (OSD)
  • - WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  • - Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
  • - Triple Encoder: H.265/H.264/MJPEG
  • - Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  • - All-in-One Total PoE Solution PoE and Auxiliary Power: 12V-48V DC/24V AC
  • - MicroSDXC Card Slot for Onboard Storage
  • - Ultra-Discrete, Low-Profile Housing
  • - Outdoor Rated IP66 and IK-10 Impact-Resistant Housing



Model





AV4856DN





Image Sensor (CMOS)

4MP (1080p x 2) CMOS Progressive Sensor

















Optical Format





1/2.8"















Pixel Pitch





2.9μm















Minimum



Color (Day Mode)



0.04 Lux



Illumination















B/W (Night Mode)



0.004 Lux























Full FOV Resolution

Total

 3840 H x 1080 V

























Per Sensor

 1920 H x 1080 V

















Dynamic Range



Up to 100dB*















Frame



At Max Resolution



30fps (4MP)



Rates















Multi-Stream

Up to 30fps (8MP) + 20fps (8MP)





























Up to 30fps (4MP) + 30fps (4MP) + 30fps (1.8MP)





















































Lens (x2)



2.8mm Lens Option (-28 Models)

2.8mm, F2.0, H-FOV = 106.7°



Programmability

Optics



M12 lens and remote focus module

Low-Light Performance

NightView technology

Programmable



Auto/manual 0.1ms ~ 500ms

Shutter Speed







Motion Detection



Real-time, 1024 detection zones

Privacy Masking



Unlimited

Backlight Compensation

Auto

White Balance Mode

Auto/manual

Gain Control



Auto

Flicker Control



5Hz–255Hz adjustable

Scaling

4MP

1920x1080, 1280x960, 1280x720, 960x540, 800x600,

(Per Sensor)



640x480, 640x360









10MP

2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080,





1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480









16MP

3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080,





1600x1200, 1296x972, 1280x960, 1280x720, 800x600,





640x480, 640x360

Wide Dynamic Range

Adjustment between WDR and LDR modes

Efficiency







SNAPstream+ (Smart Noise Adaptation and Processing)





Bit rate and bandwidth limitation control

Miscellaneous



Programmable brightness, contrast, sharpness, saturation, hue

Password



16-digit ASCII character password

On-Screen Display (OSD)

Time/date/camera name/custom text



Data Transmission

Compression Type

H.265/H.264 (MPEG-4, Part 10)/Motion JPEG



21 levels of quality

Bit Rate Control

64K–8000K

Smart Codec

Smart GOP/Smart ROI

Network Protocols

SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP,



RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS,



Zero Configure

Network Interface

10/100/1000Mbps Ethernet, RJ45

Max Camera Bandwidth

20Mbps (10Mbps per sensor)

Multi-Streaming

2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor)

Users

Live Viewing/Administrator for up to 10 clients

Event Management

Event Trigger

Motion detection, tampering detection, alarm in

Notifications

Send a message via e-mail/FTP/NAS, SD Card Recording,



Record JPG/MP4

Environmental

Operating Temperature

-40°C (-40°F) to +50°C (122°F)

Humidity

0% to 90% (non-condensing)

Storage Temperature

-40°C (-40°F) to +60°C (140°F)

Electrical

Alarm Input/Output

1 input (wet contact)/1 output (wet contact)

Power Over Ethernet

PoE IEEE 802.3af, Class 3

Auxiliary Power

12-48V DC, 24V AC

Power Consumption

10.5W max

Audio Electrical

Streaming

Two-way

Compression

G.711 PCM 8 kHz

Input/Output

Line in***/ Line output
