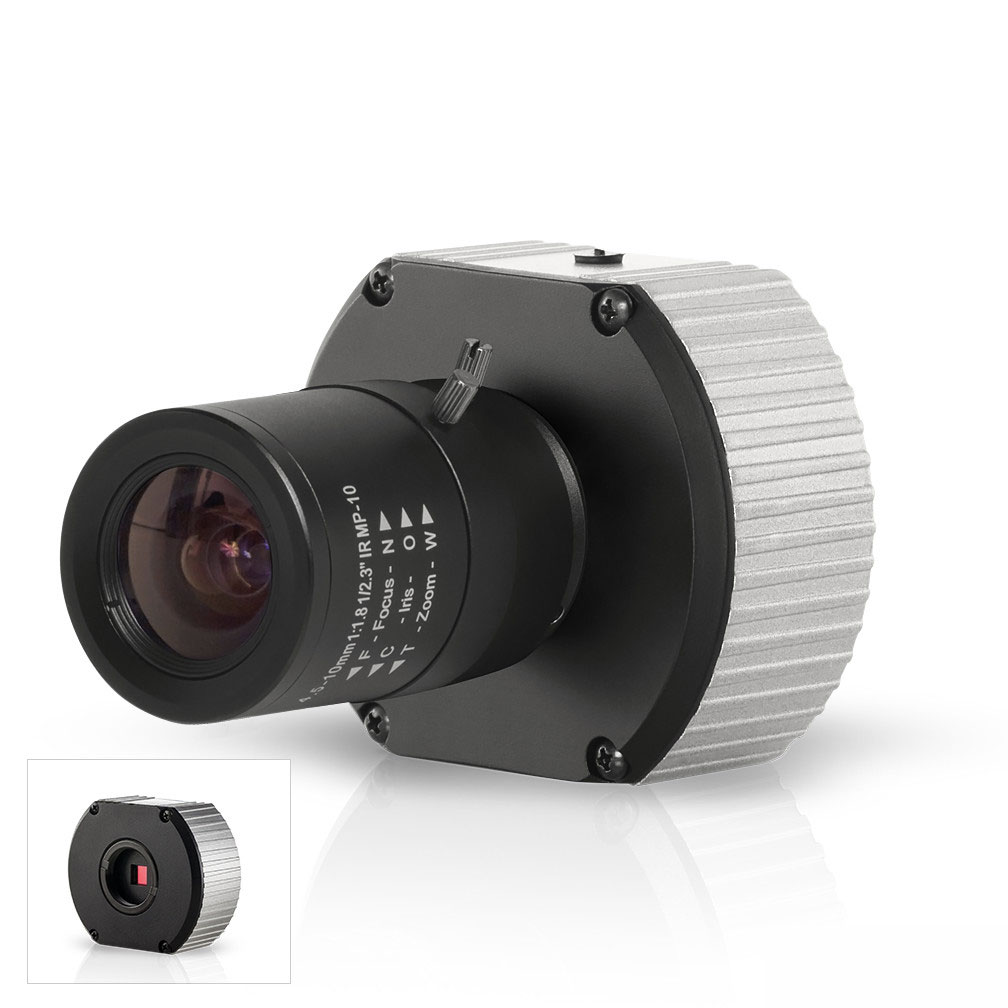

Arecont Vision - AV5215DN - 5 Megapixel, 14 fps, H.264/MJPEG Day/Night Camera
Part number:
AV5215DN
Price:

5 Megapixel (MP) H.264 True Day/Night Indoor Box-Style Compact IP Camera with SNAPstream (Smart Noise Adaptation and Processing)

The MegaVideo G5 multi-megapixel, indoor compact camera series delivers 1.2-, 1080p, 3-, 5-, or 10-megapixel resolutions (lens sold separately). Regardless of time-of-day, this camera is ideal for applications with challenging lighting conditions. The series combines a day/night mechanical IR cut filter with an optional P-iris lens on PM models for precise, optimal image quality. For applications with poor lighting conditions due to strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare, optional wide dynamic range is available on select 1080p and 3MP models.



Select 1080p models provide 30 images-per-second for optimum performance in fast action scenes such as casino and banking applications. For challenging low-light applications, the 1.2MP STELLAR model offers best-in-class light sensitivity capturing details in extreme low-light (0.002 lux in monochrome) at an incredibly high frame rate of 37 frames per second.



The SD card slot on "-S" models supports up to 32GB of storage capacity for convenient onboard storage. MegaVideo G5 "DN" models feature SNAPstream (Smart Noise Adaptation and Processing) technology to reduce bandwidth without impacting image quality.



The camera’s power can be supplied via a Power-over-Ethernet compliant network cable connection or with power from a 12-48V DC/24V AC power supply. The camera's interface allows for an intuitive, fast, and easy configuration. The MegaVideo G5 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.



Features:

  •  5MP Resolution
  •  SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  •  Binning Mode for Strong Low Light Performance
  •  CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  •  Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
  •  Dual Encoder H.264/MJPEG
  •  Network Protocols Include 802.1x, DHCP, QoS, IPv6, and More
  •  PoE and Auxiliary Power: 12 - 48V DC/24V AC
  •  Many Lenses to Choose From
  •  Small Size for Flexible Mounting Options
  •  Use with Arecont Vision Housings or as a Standalone Camera

Programmability

OpticsRemote focus, remote zoom, and P-iris control (when remote focus/zoom lens is used) (PM models only)
Low Light Performance
STELLAR1.2MP models
Pixel Binning Mode3, 5, and 10MP models
Picture-in-PictureSimultaneous delivery of full field-of-view and zoomed images
Programmable Shutter SpeedControls motion blur, 1ms–500ms
Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
ScalingNon-integer scaling down to 128x96 (1080p, 3MP, 5MP, and 10MP "-S" models only)
Casino ModeMaintains 30fps or higher (AV2215 models)
MoonLightTM ModeExtended exposure and noise cancellation
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
Backlight CompensationAuto multi-matrix white balance
Flicker Control5Hz–255Hz adjustable
Image Rotation180° image flip or CorridorViewTM (90°, 180°, and 270° image rotation)
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes (WDR models)
Efficiency
  • SNAPstreamTM (Smart Noise Adaptation and Processing)
  • Bit rate and bandwidth limitation control
  • Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
SDHC Card SlotSupports micro SDHC cards up to 32GB (-S models only)
Miscellaneous
  • Programmable resolution, brightness, saturation, gamma, tint
  • Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type
  • H.264 (MPEG-4, Part 10)/Motion JPEG
  • 21 levels of quality
Network ProtocolsIPv4, IPv6, HTTP, HTTPS*, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100Base-T Ethernet
Multi-Streaming
1.2–5MP Models8 non-identical streams
10MP Models4 non-identical streams
