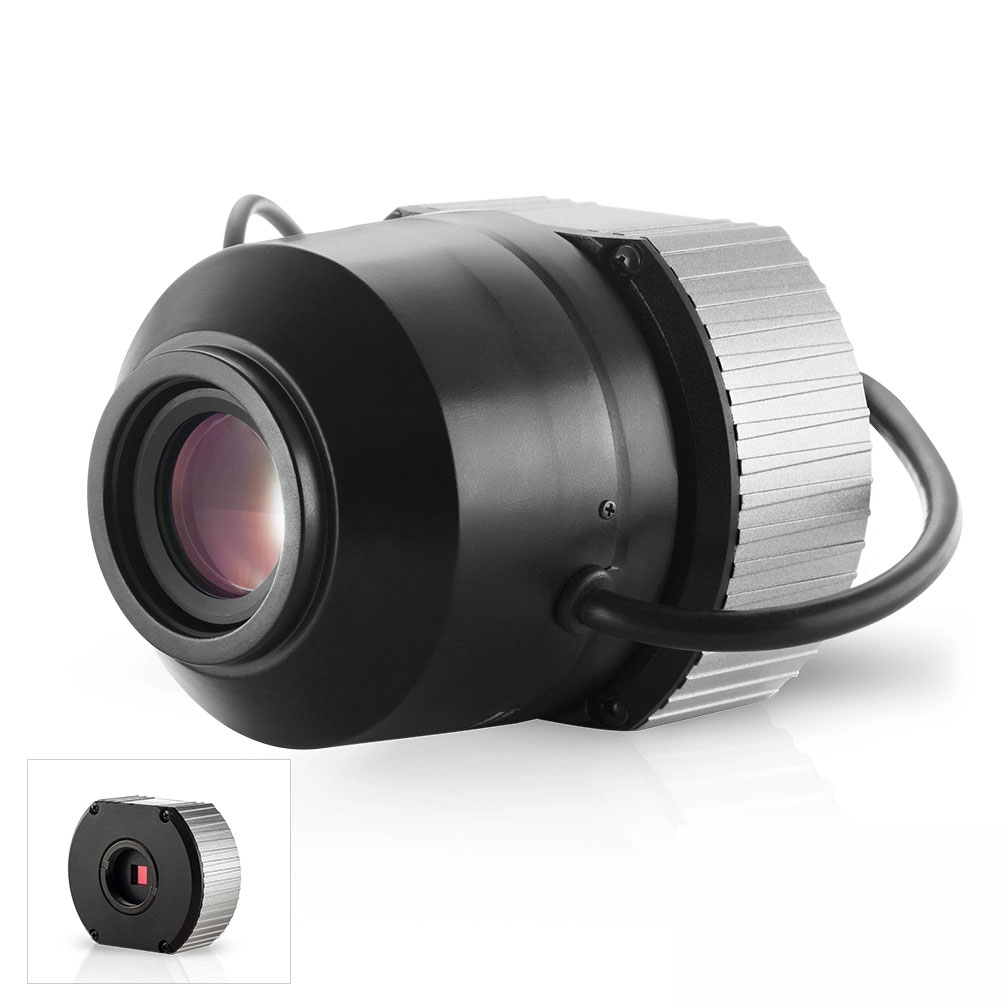

5 Megapixel, 14 fps, H.264/MJPEG Day/Night Box Camera
The AV5215PM-S MegaVideo G5 multi-megapixel, indoor compact camera series delivers 5-megapixel resolution (lens sold separately). Regardless of time-of-day, this camera is ideal for applications with challenging lighting conditions. The series combines a day/night mechanical IR cut filter with an optional P-iris lens for precise, optimal image quality. For applications with dim lighting, pixel binning provides strong low-light performance. Non-integer scaling provides the ability to scale images to different resolutions down to 128x96. This flexibility allows users to tailor their system for their specific need; reducing system bandwidth and storage costs. The MegaVideo G5 includes remote zoom/focus, making it easy for an installer to accurately focus the camera remotely. The SD card slot supports up to 32GB of storage capacity for convenient onboard storage. The CorridorView feature allows the camera’s image to be rotated 90 degrees to reduce capturing unnecessary data.
Programmability
Optics | Remote focus, remote zoom, and P-iris control (when remote focus/zoom lens is used) (PM models only) |
Low Light Performance | |
STELLAR | 1.2MP models |
Pixel Binning Mode | 3, 5, and 10MP models |
Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
Motion Detection | Real-time, 1024 detection zones |
Privacy Masking | Unlimited |
Scaling | Non-integer scaling down to 128x96 (1080p, 3MP, 5MP, and 10MP "-S" models only) |
Casino Mode | Maintains 30fps or higher (AV2215 models) |
MoonLightTM Mode | Extended exposure and noise cancellation |
Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
Backlight Compensation | Auto multi-matrix white balance |
Flicker Control | 5Hz–255Hz adjustable |
Image Rotation | 180° image flip or CorridorViewTM (90°, 180°, and 270° image rotation) |
Wide Dynamic Range | Auto switch control adjustment between WDR and LDR modes (WDR models) |
Efficiency |
|
Sharpness | Selectable enhancement level |
SDHC Card Slot | Supports micro SDHC cards up to 32GB (-S models only) |
Miscellaneous |
|
Data Transmission
Compression Type |
|
Network Protocols | IPv4, IPv6, HTTP, HTTPS*, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
Network Interface | 100Base-T Ethernet |
Multi-Streaming | |
1.2–5MP Models | 8 non-identical streams |
10MP Models | 4 non-identical streams |
