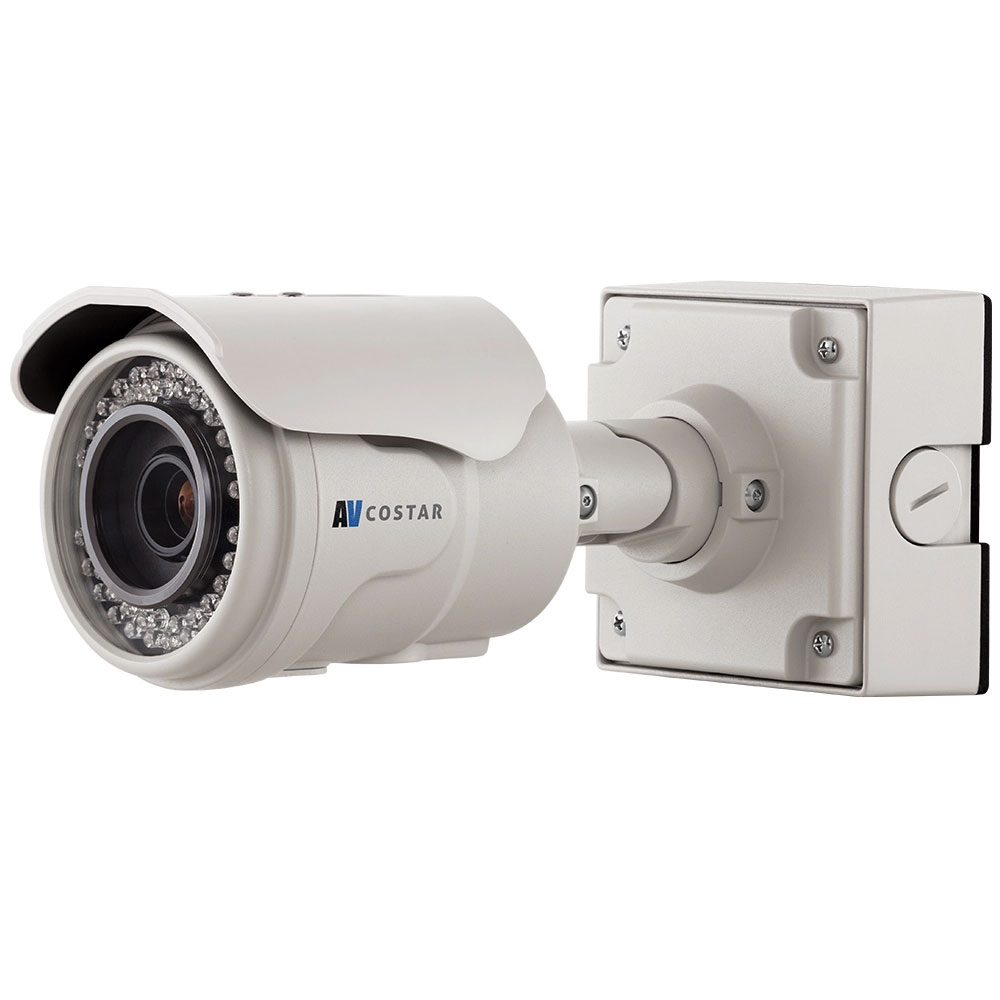

5 Megapixel (MP) H.264 All-in-One Motorized P-Iris Lens True Day/Night IR Indoor/Outdoor Bullet-Style IP Camera with SNAPstream (Smart Noise Adaptation and Processing)
The AV5225 MegaView 2 series network camera is part of Arecont Vision’s full line of H.264 MegaView cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides 2592 x 1944 megapixel resolution at full video frame rates of 14 frames per second (fps). The AV5225 camera line provides an all-in-one solution with integrated 5 megapixel camera, IR illuminator, remote focus, remote zoom, p-iris IR corrected lens and vandal resistant aluminum cylindrical (Bullet-style) enclosure with IP66 weatherproofing standard.
With the features of ONVIF Profile S conformance, binning mode, privacy mask, extended motion detection and flexible cropping, the AV5225 is a high sensitivity, PoE (IEEE 802.3af) compliant Day/Night camera w/ IR illuminator. Built with Arecont Vision’s massively-parallel MegaVideo processing technology, this camera offers more than 16-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor/outdoor applications.
Features:
- 5MP Resolution
- Remote Focus/Zoom Motorized P-Iris Lens
- P-Iris Control to Get Best Depth of Field and Image Clarity
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- 3–8mm Wide Angle Lens
- True Day/Night Functionality with Mechanical IR Cut Filter and IR LEDs
- Binning Mode for Strong Low Light Performance
- CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
- Dual Encoder H.264/MJPEG
- Network Protocols Include 802.1x, DHCP, QoS, IPv6, and More
- Total PoE Solution (No External Power Required for IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- Easily Adjustable 3-Axis Wall Mount, Junction Box Included
| Specifications | |
| Programmability | |
| Optics | Remote focus, remote zoom and P-iris control |
| Low Light Performance |
|
| Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images |
| Programmable Shutter Speed | Controls motion blur, 1ms–500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Scaling | Non-integer scaling down to 128x96 |
| Casino Mode | Maintains 30fps or higher (AV2555 model) |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 |
| Backlight Compensation | Multi-matrix white balance |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorViewTM (90°, 180°, and 270° image rotation) |
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models only) |
| Efficiency |
|
| Sharpness | Selectable enhancement level |
| Miscellaneous |
|
| Data Transmission | |
| Compression Type |
|
| Network Protocols | HTTP, HTTPS*, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP |
| Network Interface | 100Base-T Ethernet |
| Multi-Streaming |
|
